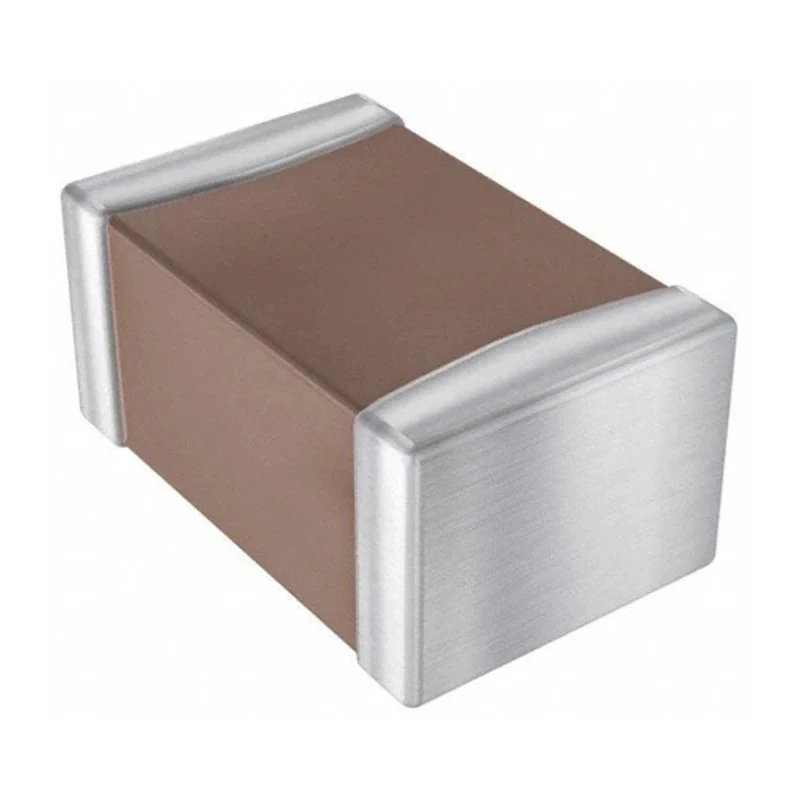

KYOCERA AVX 2.2 pF Multilayer Ceramic Capacitor 50V dc Surface Mount 0805 Case 08055A2R2CAT2A

KYOCERA AVX 08055A2R2CAT2A Multilayer Ceramic Capacitor is a surface mount device offering a capacitance of 2.2 pF with a voltage rating of 50V dc, housed in a standard 0805 case size. This capacitor utilizes the C0G (NPO) dielectric material, known for its superior temperature stability and minimal capacitance change of 0 ±30ppm/°C, maintaining less than ±0.3% variation across an operating temperature range from -55°C to +125°C.

The capacitor features nickel barrier terminations covered with a plated tin layer to ensure optimum solderability and mechanical strength, making it suitable for automated assembly lines. Its compact size of 2.01mm length, 1.25mm width, and 0.94mm height allows for efficient PCB space utilization.

With a tight capacitance tolerance of 0.25 pF, it is ideal for precision electronic circuits requiring stable capacitance values, commonly used in mobile phones, video tuner designs, and other high-frequency applications requiring Class I ceramic capacitors. The device is packaged in reels for convenient surface mount technology (SMT) assembly processes.

This capacitor series, identified by series code KGM, does not conform to automotive standards but offers reliable performance for general industrial, communications, and consumer electronics. It is designed to operate reliably up to 125°C maximum temperature and down to -55°C minimum operating temperature.

Capacitance value of 2.2 pF ensuring high precision. Voltage rating of 50V dc for robust operation. C0G (NPO) dielectric material provides excellent temperature stability. Surface mount 0805 package facilitates compact circuit designs.

Plated nickel barrier terminations for durable solder joints. Operating temperature range from -55°C to 125°C supports harsh environments. High reliability in electronic applications such as mobile phones and tuners. Reel packaging supports automated manufacturing processes.

Compact dimensions enhance space efficiency on PCBs. Explore the Electronics & Electricals category for more high-quality MLCC components by KYOCERA AVX for your electronic design and manufacturing needs.
