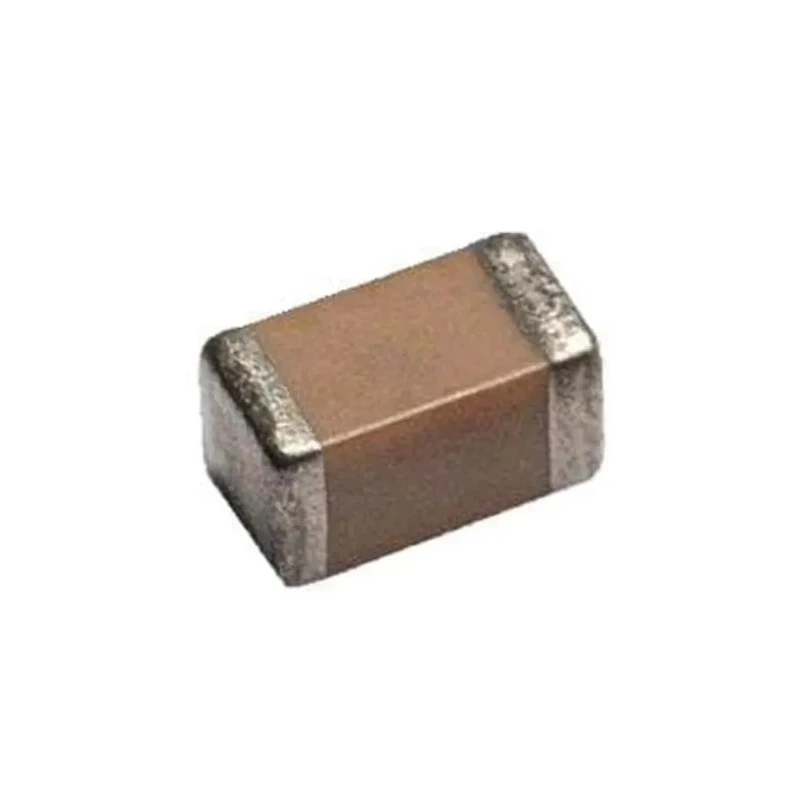

KYOCERA AVX 10 nF 25V dc ±5% X7R Multilayer Ceramic Capacitor Surface Mount 0402 04023C103JAT2A

KYOCERA AVX 04023C103JAT2A is a high-quality Multilayer Ceramic Capacitor (MLCC) designed for electronic industrial applications. It features a capacitance of 10 nF and operates at a rated voltage of 25V DC with a tolerance of ±5%, ensuring consistent performance in complex circuit designs.

The capacitor utilizes an X7R dielectric material classified as temperature stable, belonging to the EIA Class II group. This ensures reliable capacitance over a wide temperature range from -55°C up to 125°C, suitable for demanding environments.

Its surface mount design and compact 0402 package size (1mm length × 0.5mm width × 0.56mm height) make it ideal for high-density printed circuit boards (PCBs). The termination type is surface mount, facilitating efficient soldering and robust mechanical adhesion.

This capacitor is part of the AVX KGM series, widely recognized for commercial-grade MLCCs, used extensively in consumer electronics, automotive, industrial control systems, and telecommunications.

Features X7R dielectric for temperature stability across a broad range. Surface mount type capacitor suitable for compact PCB designs. Standard 0402 package size: 1mm length, 0.5mm width, 0.56mm height. Operating temperature range from -55°C to 125°C for industrial applications.

Packaging available in reel format for automated assembly processes. Manufactured with KGM series specifications ensuring reliable industrial use. Ideal for applications requiring stable capacitance with voltage variations.

This product is supplied in reel packaging, facilitating automated pick-and-place assembly on production lines, improving manufacturing efficiency. It is designed for surface mount technology (SMT) processes and meets the requirements for industrial and commercial electronic applications.
