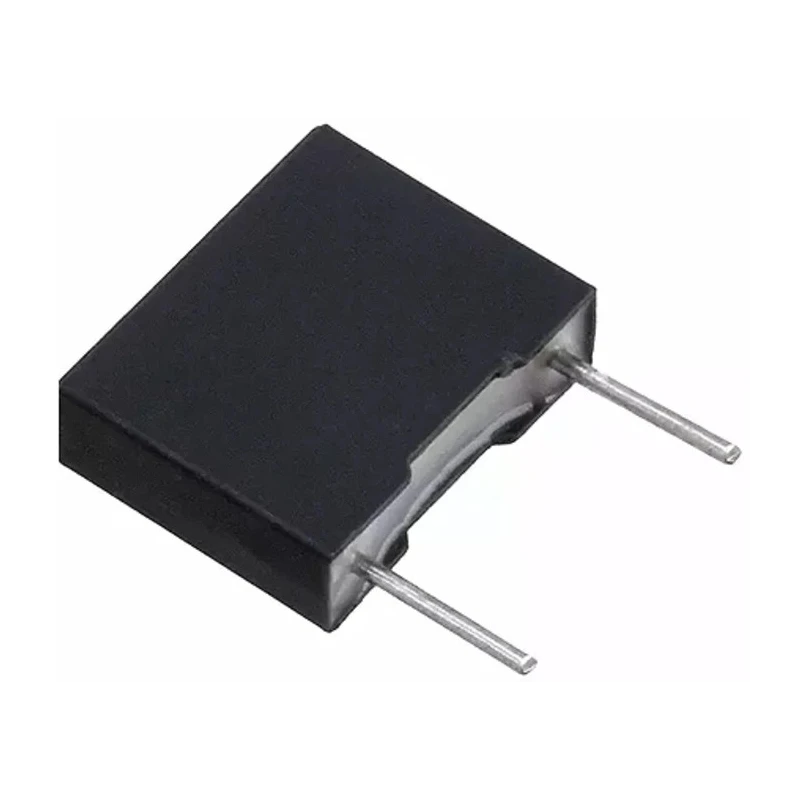

KEMET Polypropylene Capacitor 220 nF ±5 % 630 V dc 400 V ac Through Hole R76PN32204030J
Specifications
| Country of Origin | India |
|---|---|
| Capacitance Range | 100 pF - 15 μF |
| Voltage Range | 250 - 2000 V dc |
| Brand | KEMET |
| Height | 18.5mm |
| Length | 26.5mm |
| Model | R76PN32204030J |
| Packaging | Bag |
| Width | 10mm |
| Mount Type | Through Hole |
| Series | R76 |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±5 % |
| Capacitance | 220nF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Radial |
| Dissipation Factor | 0.0003% |
| Lead Length | 30mm |
| Standards/Approvals | IEC 60286-2, RoHS |
| Pin Count | 2 |
| Rated AC Voltage | 400V ac |
| Rated DC Voltage | 630V dc |
| Lead Pitch | 22.5mm |
| Lead Diameter | 0.8mm |
| Automotive Standard | AEC-Q200 |
| Capacitance tolerance | ±5%, ±10%, ±20% |
| Lead Spacing | 7.5 mm - 37.5 mm |
| Equivalent Series Resistance ESR | 12mΩ |
Key Features
- This polypropylene film capacitor has a capacitance of 220 nF with a tolerance of ±5 %.
- Rated for 630 V DC and 400 V AC operation for robust performance.
- Designed for through-hole mounting with radial terminals and a lead pitch of 22.5 mm.
- Features low Equivalent Series Resistance (ESR) of 12 mΩ optimized for high frequency applications.
- Meets automotive standard AEC-Q200 and IEC 60286-2 specifications with RoHS compliance.
- Operating temperature range from -55°C to 105°C ensures durability in harsh environments.
- Encapsulated in a self-extinguishing UL 94V-0 plastic case for enhanced safety.
- Typical applications include switched mode power supplies, snubber circuits, and high voltage electronic equipment.
Product Description
KEMET R76PN32204030J polypropylene capacitor 220 nF ±5 % with through-hole mount provides reliable, high-voltage performance suitable for industrial and automotive electronics. This capacitor features a capacitance of 220 nF and is rated for 630 V DC and 400 V AC, making it ideal for high frequency and high voltage suppression applications.
Constructed with double metallized polypropylene film electrodes, the capacitor is encapsulated within a self-extinguishing solvent-resistant plastic case that meets UL 94V-0 standards, ensuring both performance and safety.
The radial terminal design with a 22.5 mm lead pitch and 30 mm lead length allows easy PCB installation and secure connections.
This product complies with AEC-Q200 automotive standards and IEC 60286-2 guidelines, offering suitability for automotive and industrial usage within an operating temperature range from -55°C up to 105°C.
Capacitance of 220 nF with ±5 % tolerance. Rated DC voltage: 630 V; AC voltage: 400 V. Low Equivalent Series Resistance of 12 mΩ for minimal power loss. Self-healing and encapsulated in UL94V-0 compliant material. Ideal for switched mode power supplies, SCR commutation, and snubber circuits.
Radial through-hole mounting with 22.5 mm lead spacing. Automotive-grade quality suitable for demanding environments.
These features make the KEMET R76PN32204030J a dependable choice for engineers designing industrial, automotive, and consumer electronic circuits requiring stable and robust capacitance components.
Explore more KEMET Film Capacitors at EnvMart for varied capacitance ranges and voltage ratings to fit all your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is 220 nF with a tolerance of ±5%.
It is rated for 630 V DC and 400 V AC operation.
The Equivalent Series Resistance (ESR) is 12 mΩ, optimized for high frequency applications.
The operating temperature range is from -55°C to 105°C.
This capacitor is designed for through-hole mounting with radial terminals.
The dimensions are 26.5 mm in length, 10 mm in width, and 18.5 mm in height.
The lead pitch is 22.5 mm.
It complies with the AEC-Q200 automotive standard.
It meets IEC 60286-2 specifications and is RoHS compliant.
Typical applications include switched mode power supplies, snubber circuits, and high voltage electronic equipment.
The lead length is 30 mm.
This capacitor is packaged in a bag.
