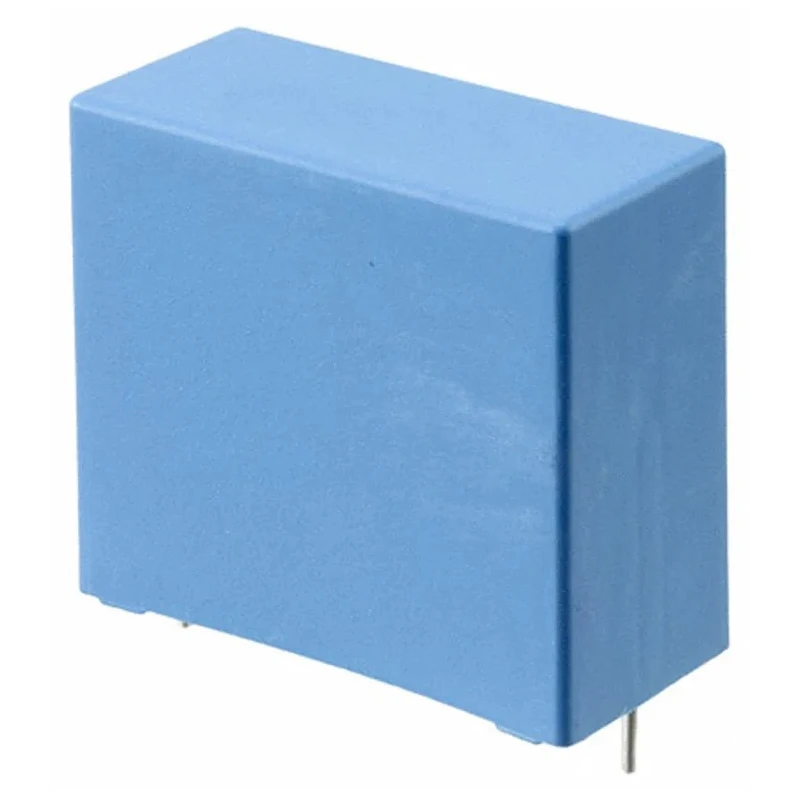

KEMET Polypropylene Capacitor 10 nF ±5%, 3 kV DC 180 V AC Through Hole Radial Lead PHE450

Free Delivery in India | Lowest Global Shipping Charges

KEMET Polypropylene Capacitor 10 nF ±5%, 3 kV DC 180 V AC Through Hole Radial Lead PHE450

Name: KEMET Polypropylene Capacitor 10 nF ±5%, 3 kV DC 180 V AC Through Hole Radial Lead PHE450
Brand: KEMET
SKU: 202732
Price: 2.37 USD
Availability: InStock



Category Film Capacitors Brand KEMET Condition New

Specifications

Country of Origin	India
Brand	KEMET
Height	18.5mm
Length	26mm
Model	PHE450
Packaging	Tape & Reel
Width	9mm
Mount Type	Through Hole
Series	PHE450
Maximum Operating Temperature	105°C
Tolerance	±5 %
Capacitance	10nF
Minimum Operating Temperature	-55°C
Terminal type	Radial
Dissipation Factor	0.0003%
Rated Voltage	250 V dc to 3000 V dc
Lead Length	6mm
Standards/Approvals	RoHS
Pin Count	2
Rated AC Voltage	180V ac
Rated DC Voltage	3kV dc
Lead Pitch	22.5mm
Lead Diameter	0.8mm
Capacitance tolerance	±5%, other tolerances on request
Lead Spacing	7.5 mm to 37.5 mm

Key Features

Rated DC voltage is 3 kV with an AC voltage rating of 180 V.
Through hole radial lead mount type ensures strong mechanical stability.
Operating temperature range from -55°C to 105°C supports harsh environments.
Encapsulated in self-extinguishing resin meeting UL 94 V-0 standards.
Designed for high current stress applications such as snubber and pulse circuits.
Lead pitch of 22.5 mm and lead length of 6 mm improves PCB accommodation.
Low dissipation factor of 0.0003% for efficient energy retention.
Packaging type is tape and reel for automated assembly processes.

Product Description

KEMET PHE450XD5100JD15R06L2 is a high-quality polypropylene film capacitor featuring a nominal capacitance of 10 nF and a tolerance of ±5%. It is designed for through hole mounting with radial leads, providing reliable mechanical and electrical connections in electronic assemblies.

This capacitor has a rated DC voltage of 3 kV and an AC voltage rating of 180 V, making it suitable for demanding industrial and electronic circuit environments. The operating temperature range from -55°C to 105°C allows it to function reliably in both low and high temperature conditions.

The component measures 26 mm in length, 9 mm in width, and 18.5 mm in height, with a lead pitch of 22.5 mm and lead length of 6 mm. Its encapsulation in a self-extinguishing resin meeting UL 94 V-0 ensures durability and safety in applications with potential thermal risks.

This series is excellent for use in snubber and pulse circuits, as well as other applications experiencing high current stresses, such as protection circuits in switch mode power supplies and deflection circuits in televisions. Its low dissipation factor of 0.0003% ensures minimal power loss during operation.

10 nF capacitance with ±5% tolerance. Rated DC voltage up to 3 kV and AC voltage 180 V. Through hole radial lead construction with 22.5 mm lead pitch. Operates from -55°C to 105°C. Encapsulated in UL 94 V-0 rated self-extinguishing resin.

Low dissipation factor of 0.0003%. Tape and reel packaging for automated assembly.

These capacitors are widely applied in electronic industrial contexts including manufacturing, power electronics, and telecommunications, where rigorous electrical performance and safety standards are required.
