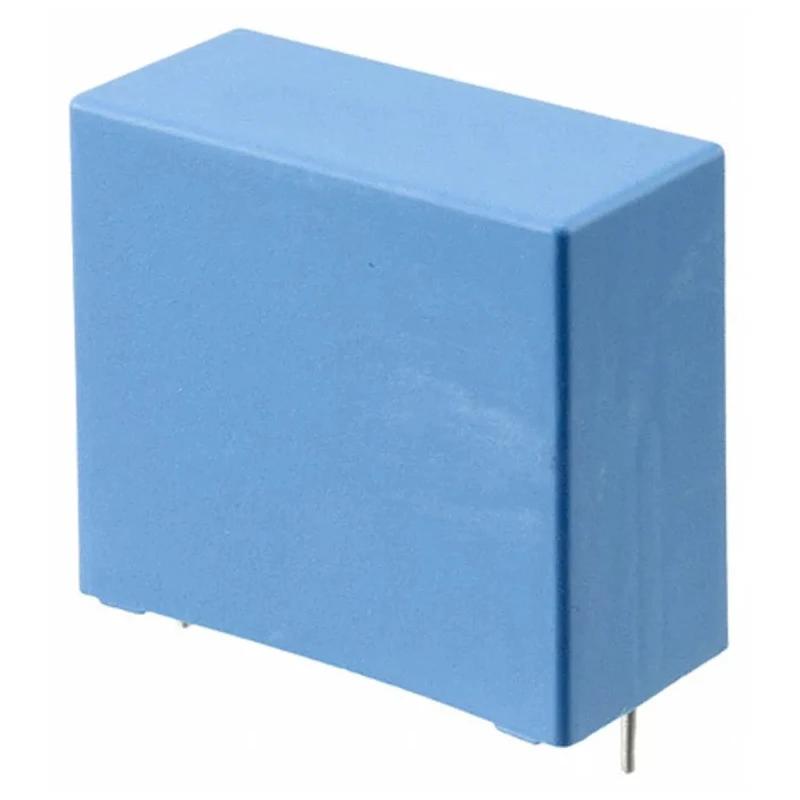

KEMET Polypropylene Capacitor 680 pF 250 V dc 180 V ac Through Hole Radial Lead PHE450
Specifications
| Country of Origin | India |
|---|---|
| Brand | KEMET |
| Height | 18.5mm |
| Length | 26mm |
| Model | PHE450 |
| Packaging | Tape & Reel |
| Width | 9mm |
| Mount Type | Through Hole |
| Series | PHE450 |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±5 % |
| Capacitance | 680pF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Radial |
| Dissipation Factor | 0.0003% |
| Rated Voltage | 250 V dc to 3000 V dc |
| Lead Length | 6mm |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Rated AC Voltage | 180V ac |
| Rated DC Voltage | 250V dc |
| Lead Pitch | 22.5mm |
| Lead Diameter | 0.8mm |
| Capacitance tolerance | ±5%, other tolerances on request |
| Lead Spacing | 7.5 mm to 37.5 mm |
Key Features
- Double metallized polypropylene film construction provides pulse capacitor performance.
- Capacitance tolerance of ±5% ensures reliable precision in applications.
- Encapsulated in self-extinguishing resin material meeting UL94 V-0 standard for safety.
- Radial lead type with 22.5 mm lead pitch and 0.8 mm lead diameter for through-hole mounting.
- Operating temperature range from -55°C to 105°C for wide environmental compatibility.
- Packaged in tape and reel format for automated assembly processes.
- Dissipation factor is very low at 0.0003%, ensuring minimal energy loss.
- Suitable for switch mode power supply protection and television deflection circuits.
Product Description
KEMET PHE450 Polypropylene Capacitor model PHE450 is a high-quality passive electronic component that features 680 pF capacitance, ±5% tolerance, and is rated for 250 V dc and 180 V ac. This through-hole radial lead capacitor is engineered for use in pulse and snubber circuits that experience high current stress, such as switch mode power supplies and television deflection circuits.
The capacitor utilizes a double metallized polypropylene film construction encapsulated in a self-extinguishing resin box material that meets UL 94 V-0 requirements, providing both electrical performance and enhanced safety. Its radial lead design features a 22.5 mm pitch and 0.8 mm diameter leads, making it suitable for through-hole mounting on printed circuit boards. The component supports a broad operating temperature range from -55°C to 105°C, ensuring reliability across diverse industrial environments.
With an exceptionally low dissipation factor of 0.0003%, this capacitor offers efficient energy use and low losses, critical for sensitive electronics. The tight capacitance tolerance of ±5% ensures consistent performance, while the tape and reel packaging format supports mass production and automated assembly lines.
Double metallized polypropylene film for pulse applications. Rated for 250 V dc and 180 V ac voltage conditions. Radial lead through-hole mounting with precise lead spacing. Encapsulated in UL 94 V-0 compliant self-extinguishing resin.
Wide operating temperature range suitable for industrial uses. Low dissipation factor ensures high efficiency and minimal loss. Tape and reel packaging compatible with automated manufacturing. RoHS compliant, supporting environmental safety standards.
Applications include power supply protections and deflection circuits. 2 pins and compact dimensions facilitate PCB integration.
This KEMET PHE450 series capacitor is ideal for electronics manufacturing, industrial controls, and commercial electronic devices requiring reliable film capacitor performance. Explore more Film Capacitors and electronic components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The KEMET PHE450 capacitor has a capacitance value of 680 pF.
This model is rated for 250 V dc and 180 V ac.
The operating temperature range for this capacitor is from -55°C to 105°C.
The capacitance tolerance of the KEMET PHE450 capacitor is ±5%.
The lead pitch is 22.5 mm and the lead diameter is 0.8 mm.
The dissipation factor is very low at 0.0003%.
It is packaged in tape and reel format, which is suitable for automated assembly processes.
The KEMET PHE450 capacitor is manufactured in India.
This capacitor is RoHS compliant, supporting environmental safety standards.
It features radial terminals, suitable for through-hole mounting.
It is suitable for applications such as switch mode power supply protection and television deflection circuits.
The dimensions are 26 mm in length, 9 mm in width, and 18.5 mm in height.
