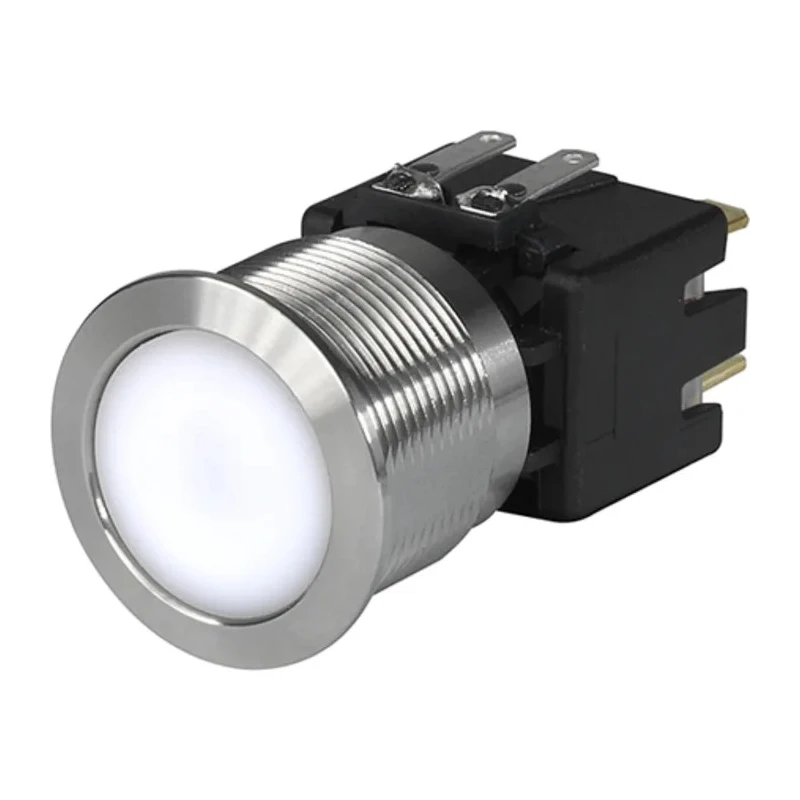

Schurter MSM LA CS 22 Series Illuminated Push Button Switch, Latching, Panel Mount, 22.1 mm Cutout, DPDT, White 3-101-041
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | Schurter |
| IP Rating | IP40, IP64 |
| Mount Type | Panel |
| Series | MSM LA CS 22 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | 2P |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 22.1 mm |
| Terminal type | Solder Pin |
| LED Colour | White |
| Switch Operation | Latching |
| Actuator Colour | White |
| Contact DC Voltage | 250V |
| Actuator Style | Push Button |
| Switch Contact Current | 16A |
| Contact AC Voltage | 250V ac |
| Shock protection | IK 07 |
| Actuation force | 10 N |
Key Features
- The switch features a 22.1 mm panel cutout for installation.
- It provides double-pole double-throw (DPDT) contact configuration.
- White LED illumination enhances visibility during operation.
- The actuator color is white with a push button style and latching function.
- IP40 and IP64 ratings provide protection against dust and splashing water.
- Operates reliably between -25°C and 85°C ambient temperatures.
- Contact ratings support up to 16A at 250V AC/DC voltage.
- The sturdy stainless steel housing with ceramic actuator ensures durability and vandal resistance.
Product Description
Schurter 3-101-041 MSM LA CS 22 Series Illuminated Push Button Switch is a high-quality latching switch designed for panel mounting with a 22.1 mm cutout. Featuring a double-pole double-throw (DPDT) contact configuration and white LED illumination, this switch ensures clear operational feedback and enhanced visibility.
The switch is constructed with a robust stainless steel housing and a scratch-proof ceramic actuator. This durable design makes it ideal for use in harsh environments and applications requiring vandal resistance such as vending machines, ticket machines, restaurant equipment, and public or sanitary facilities.
With an actuator travel greater than 5 mm, the switch prevents inadvertent switching by protruding when off and recessing when on. It operates within ambient temperatures from -25°C up to 85°C and carries an IP40 and IP64 rating for protection against dust ingress and water splashes.
The switch contact supports 16A current at 250V AC or DC voltages, ensuring reliable operation for a wide range of electrical control tasks. Shock protection rated at IK07 safeguards the device against mechanical impacts, enhancing longevity in industrial and commercial settings.
The panel-mounted push button switch features a latching mechanism with white LED illumination. Its stainless steel housing and ceramic actuator provide anti-vandal properties and high durability. Rated for 16A contact current with DPDT configuration and solder pin terminals.
Suitable for demanding environments, including industrial automation, electrical panels, and public access equipment. Requires a 24 V DC supply for LED illumination.
Manufactured in Switzerland, this product meets international standards including DIN EN 61058-1, UL 1054, KEMA ENEC, and CSA certifications. It is an ideal choice for applications requiring robust, reliable push button switches with visual feedback.
Explore Schurter and similar Push Button Switch products at EnvMart for advanced electrical solutions suited to your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a double-pole double-throw (DPDT) contact configuration, allowing for versatile control in electrical applications.
The switch requires a panel cutout size of 22.1 mm for proper installation.
It operates reliably within an ambient temperature range of -25°C to 85°C.
The switch supports a maximum contact current of 16A at 250V AC or DC.
This model is equipped with solder pin terminals for electrical connections.
The switch has an IP40 rating for protection against dust ingress and an IP64 rating for protection against splashing water.
The actuation force for this model is 10 N, providing a tactile feedback during operation.
It features a robust stainless steel housing and a scratch-proof ceramic actuator, enhancing its durability and vandal resistance.
The switch is illuminated by a white LED, which enhances visibility during operation.
This switch meets several international standards, including DIN EN 61058-1, UL 1054, KEMA ENEC, and CSA certifications.
It is suitable for demanding environments such as industrial automation, electrical panels, and public access equipment.
This illuminated push button switch operates with a latching mechanism, which maintains its position until manually changed.
