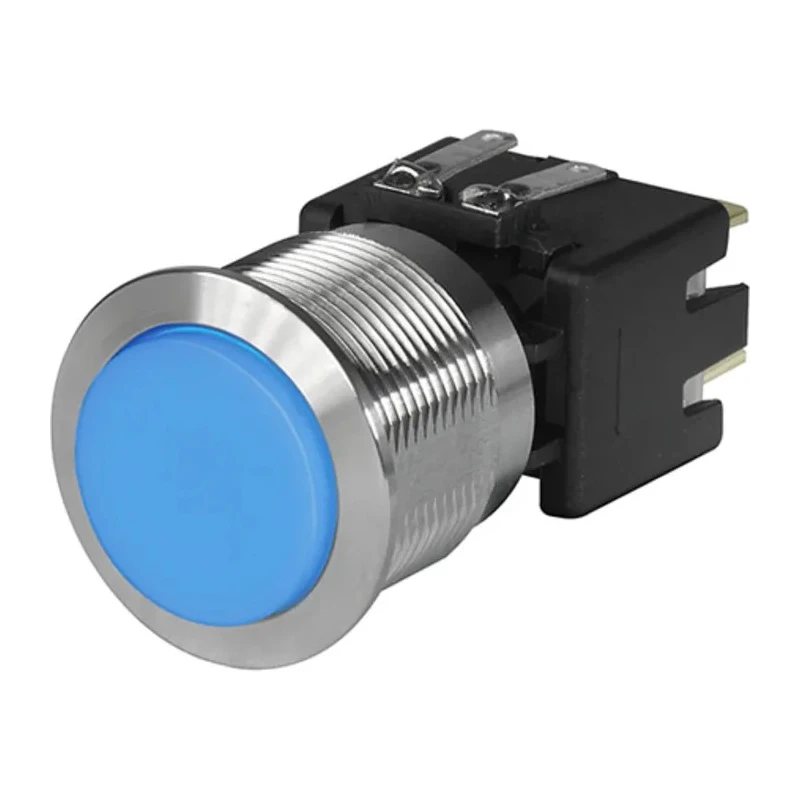

Schurter MSM LA CS 19 Series Illuminated Latching Push Button Switch, Panel Mount, 19.1 mm Cutout, DPDT, Blue LED 3-101-010
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schurter |
| IP Rating | IP40, IP64 |
| Mount Type | Panel |
| Series | MSM LA CS 19 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | 2P |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 19.1 mm |
| Terminal type | Solder Pin |
| LED Colour | Blue |
| Switch Operation | Latching |
| Actuator Colour | Blue |
| Contact DC Voltage | 250V |
| Actuator Style | Push Button |
| Switch Contact Current | 16A |
| Contact AC Voltage | 250V ac |
| Shock protection | IK 07 |
| Actuation force | 10 N |
Key Features
- The switch features a durable stainless steel housing and scratch-proof ceramic actuator for vandal-resistant applications.
- It provides double pole double throw (DPDT) contact configuration with a 16A contact rating suitable for 250V AC/DC.
- The switch incorporates a blue LED illumination requiring 24 V DC supply, offering clear ON/OFF feedback with actuator travel greater than 5 mm.
- Rated with IP40 and IP64 protection and IK 07 shock protection, it operates reliably between -25°C to 85°C.
- Standards compliance includes UL CSA E-41791, UL 1054, KEMA ENEC 2089323.01, DIN EN 61058-1, and 2014/35/EU, ensuring safety and quality.
- Durable stainless steel and scratch-proof ceramic actuator construction for long-lasting use.
- Blue LED illumination for enhanced visual status indication.
- DPDT contact configuration with 16A current rating at 250V AC/DC.
Product Description
Schurter 3-101-010 MSM LA CS 19 Series Illuminated Push Button Switch is a high-performance latching switch engineered for panel mounting applications requiring a 19.1 mm cutout. Featuring a stainless steel housing and a scratch-proof ceramic actuator, this push button switch is built to withstand harsh environments and resist vandalism, making it ideal for use in vending machines, ticket machines, restaurant equipment, public facilities, and sanitary areas.
The blue LED illumination clearly indicates operational status and requires a 24 V DC supply. The switch operates with a double pole double throw (DPDT) contact configuration rated for a maximum current of 16A at 250V AC/DC. Its actuator travel exceeds 5 mm, providing distinct tactile feedback; in the OFF state, the actuator protrudes from the housing, and in the ON state, it is recessed, preventing accidental activation.
This push button switch is rated for ingress protection levels IP40 and IP64, with IK 07 shock resistance, ensuring reliable performance under mechanical impact and moisture exposure. It operates effectively in a wide temperature range from -25°C to +85°C, suitable for diverse industrial and commercial environments.
Certified to multiple international standards including UL CSA E-41791, UL 1054, KEMA ENEC 2089323.01, DIN EN 61058-1, and compliant with the 2014/35/EU directive, the switch meets rigorous safety and quality benchmarks.
Applications include industrial control panels, laboratory instrumentation, HVAC controls, manufacturing equipment, and commercial machinery requiring robust, illuminated latching switch solutions.
Durable stainless steel and scratch-proof ceramic actuator construction for long-lasting use. Blue LED illumination for enhanced visual status indication. DPDT contact configuration with 16A current rating at 250V AC/DC.
IP40 and IP64 ingress protection with IK 07 shock resistance. Wide operating temperature range from -25°C to +85°C. Complies with international safety and quality standards. Suitable for harsh environments and anti-vandal applications.
Actuator travel greater than 5 mm for increased feedback and user-friendly operation. Set includes 1 Pc illuminated push button switch. Explore more options in Push Button Switches and find high-quality industrial components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a double pole double throw (DPDT) contact configuration.
It has a maximum current rating of 16A at 250V AC/DC.
This model is rated IP40 and IP64 for ingress protection.
The blue LED illumination requires a 24 V DC supply.
It operates effectively in a temperature range from -25°C to +85°C.
The actuator travel exceeds 5 mm, providing distinct tactile feedback.
The actuator is made of scratch-proof ceramic, and the housing is constructed from durable stainless steel.
This switch is designed for panel mounting with a cutout size of 19.1 mm.
It uses solder pin terminals for connection.
This model has an IK 07 shock protection rating.
It complies with multiple standards including UL CSA E-41791, UL 1054, and DIN EN 61058-1, among others.
It is suitable for applications such as industrial control panels, laboratory instrumentation, and public facilities.
