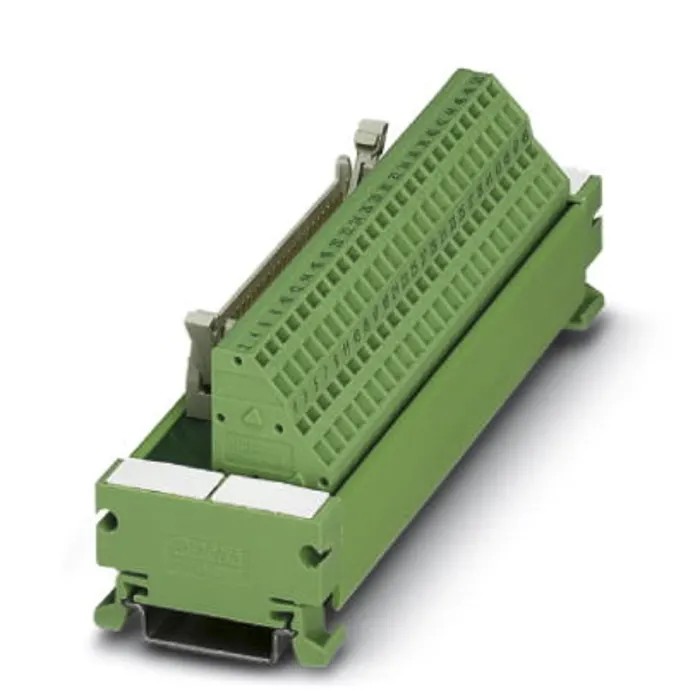

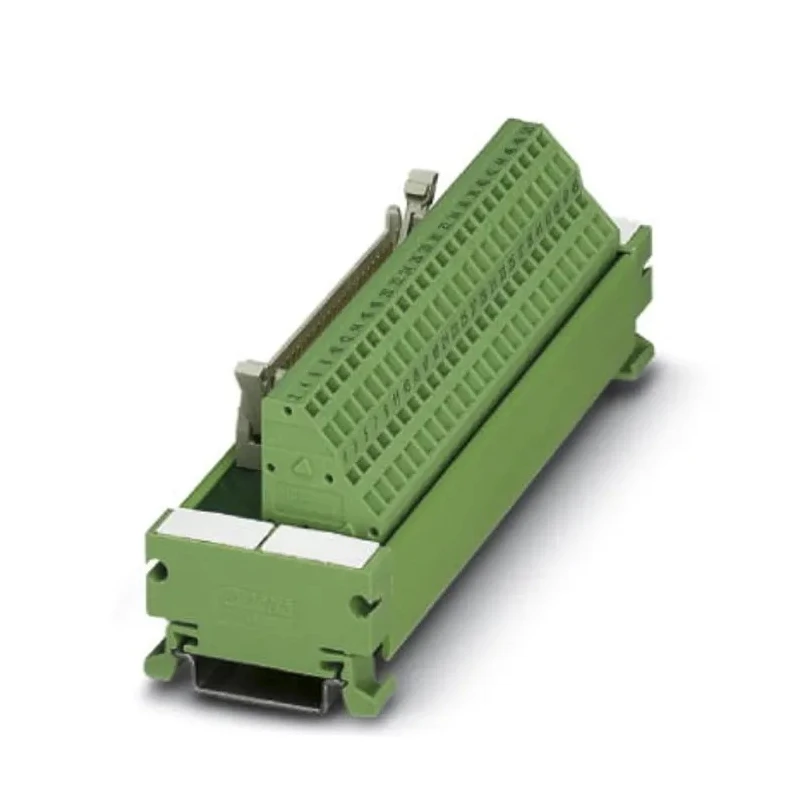

Phoenix Contact 26-Contact Male Interface Module Flat Ribbon Cable Connector DIN Rail Mount 50-60V AC 1A 2293556

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact 26-Contact Male Interface Module Flat Ribbon Cable Connector DIN Rail Mount 50-60V AC 1A 2293556

Name: Phoenix Contact 26-Contact Male Interface Module Flat Ribbon Cable Connector DIN Rail Mount 50-60V AC 1A 2293556
Brand: PHOENIX CONTACT
SKU: 201608
Price: 103.95 USD
Availability: InStock



Category DIN Rail Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Voltage	50, 60V ac
Brand	Phoenix Contact
Orientation	Straight
Current	1A
Length	90mm
Model	2293556
Depth	45mm
Connector Type	Flat Ribbon Cable
Width	50mm
Gender	Male
Mount Type	DIN Rail
Maximum Operating Temperature	50°C
Minimum Operating Temperature	-20°C
Wire size	14, 24AWG
Number of Contacts	26
Cable CSA	0.2, 2.5mm²
Test Proof Voltage	500V ac

Key Features

Features 26 male contacts suitable for interface modules.
Mounts on NS 35 / 7.5 DIN rails for secure installation.
Supports wire sizes of 14 and 24 AWG with cable CSA between 0.2 and 2.5 mm².
Test proof voltage rating up to 500V AC for reliable insulation.
Operates in temperature range from -20°C up to 50°C.
Straight orientation with flat ribbon cable connector type.
Includes locking levers for plug fuse securing.
Side components have identification labels for easy wiring.

Product Description

Rated at 1 ampere current and 50 to 60 volts AC, this interface module is ideal for various industrial and electronic applications requiring compact and secure connections.

The module supports wire sizes 14 and 24 AWG, accommodating cable cross-sectional areas ranging from 0.2 to 2.5 mm². It features 26 contacts in a straight orientation to ensure stable and precise connections. The unit mounts on NS 35 / 7.5 DIN rails, making installation straightforward and compliant with common industrial mounting standards.

Test proof voltage is rated at 500V AC which assures high insulation resistance for safety and reliability. Operating temperatures range from -20°C to 50°C, allowing use in various environments including industrial automation, electronic manufacturing, and power distribution systems.

This interface module comes equipped with locking levers to secure the plug fuse and side components that are marked with identification labels for user-friendly wiring management. Its compact size with dimensions of 90mm length, 50mm width, and 45mm depth enables it to fit efficiently within control cabinets and assemblies.

26 male contacts enable multiple circuit connections. DIN Rail mount type allows standardized installation. Supports flat ribbon cable for organized wiring. Wide operating temperature range from -20°C to 50°C. Test voltage of 500V AC ensures safety.

Locking levers for secure plug fuse connection. Identification labels assist in cable management. Compact dimensions suitable for electronic enclosures.

Designed and manufactured in Germany, this Phoenix Contact interface module meets IEC 60664 and DIN VDE 0110 standards, with approvals including UL and cUL. It is suitable for use in industrial, laboratory, manufacturing, and automation system applications where reliable signal transmission is required.
