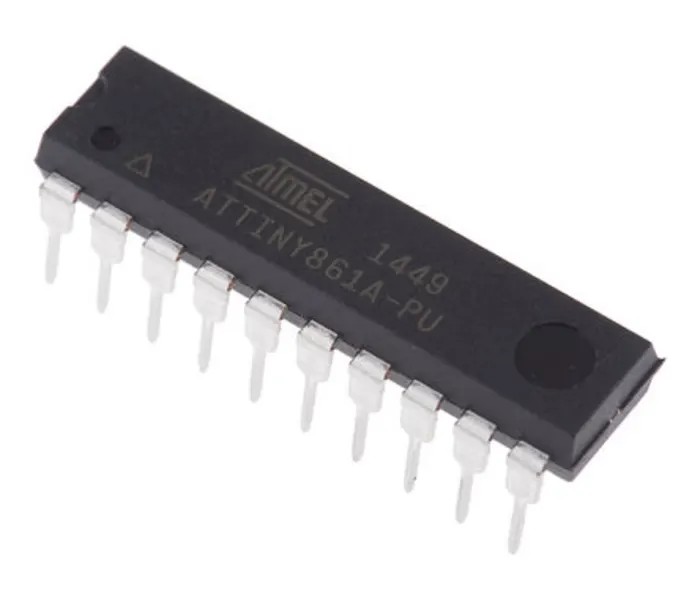

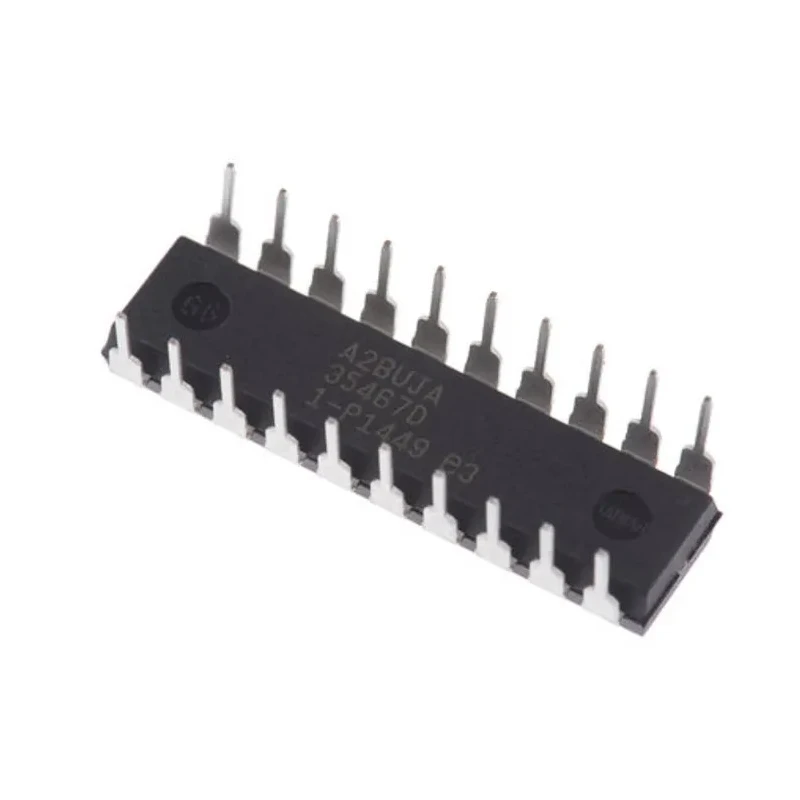

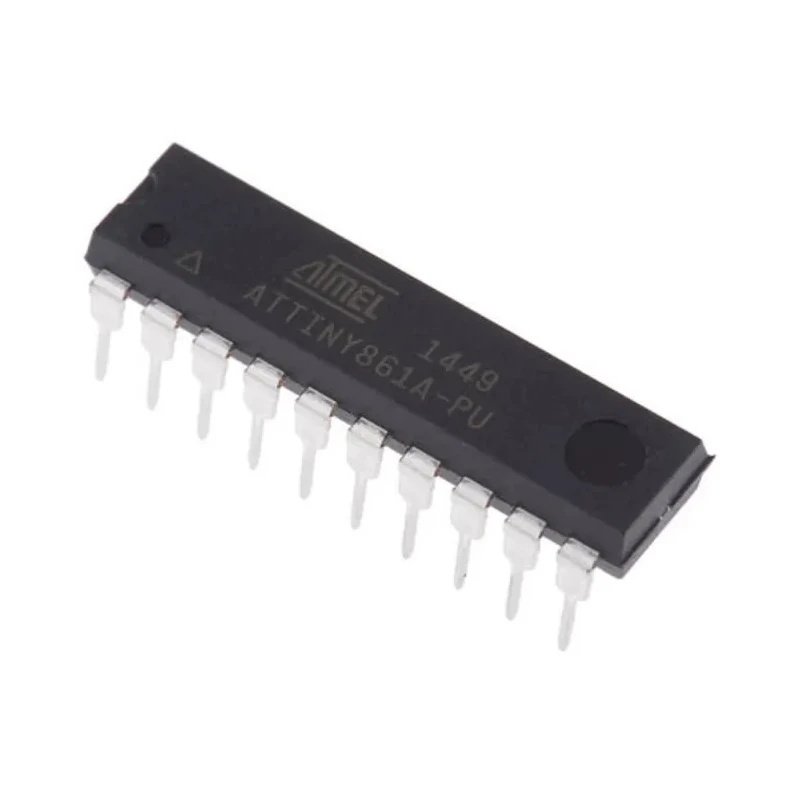

Microchip 8-Bit AVR ATtiny861 Microcontroller 20 MHz, 8kB FLASH, 20-Pin PDIP ATTINY861A-PU

Microchip ATTINY861A-PU is an 8-bit AVR microcontroller designed for high performance and power efficiency in a compact 20-pin PDIP form factor. Operating at a maximum clock frequency of 20 MHz, this microcontroller features 8kB of FLASH memory and 512 bits of RAM, making it highly suitable for embedded applications requiring fast and efficient processing.

This device operates within a supply voltage range of 1.8V to 5.5V, offering flexibility for low power consumption designs and compatibility with varied power sources. The microcontroller provides 16 programmable input/output pins which are configurable according to application needs.

The integrated 11 analog inputs with 10-bit ADC capability enable precise analog signal measurement, enhanced with a single analog comparator for signal comparison tasks. Additionally, it includes 2 timers for generating timing signals, pulse width modulation, or event counting.

Adopting the RISC instruction set architecture, the ATTINY861A-PU ensures streamlined and efficient code execution with minimal power usage. Its through-hole mounting design ensures sturdy placement onto PCBs suitable for industrial, commercial, and educational electronics projects.

Incorporating the FLASH program memory type allows for multiple reprogramming cycles, making the microcontroller adaptable to evolving project requirements. The operating temperature range from -40°C to 85°C supports deployment in varied environments from industrial to outdoor applications.

The compact size of 25.98 mm length, 7.11 mm width, and 4.95 mm height makes the ATTINY861A-PU a good choice where board space is limited. It finds extensive use in embedded systems, control units, sensor interfaces, consumer electronics, and other industrial and laboratory applications.

Operates with a voltage range of 1.8V to 5.5V for flexible power supply. Features 512-bit RAM and 16 programmable input/output pins. Includes 11 analog-to-digital converters with 10-bit resolution. Equipped with 1 analog comparator and 2 timers for timing control.

Supports RISC architecture providing efficient instruction processing. Through-hole mount type ensures reliable board placement. Operating temperature range from -40°C to 85°C suited for varied environments. Compact dimensions of 25.98 mm length, 7.11 mm width, and 4.95 mm height.

Program memory type is FLASH, facilitating easy reprogramming. Explore more Microchip Microcontrollers and semiconductor components at EnvMart to meet your electronics design and manufacturing needs.
