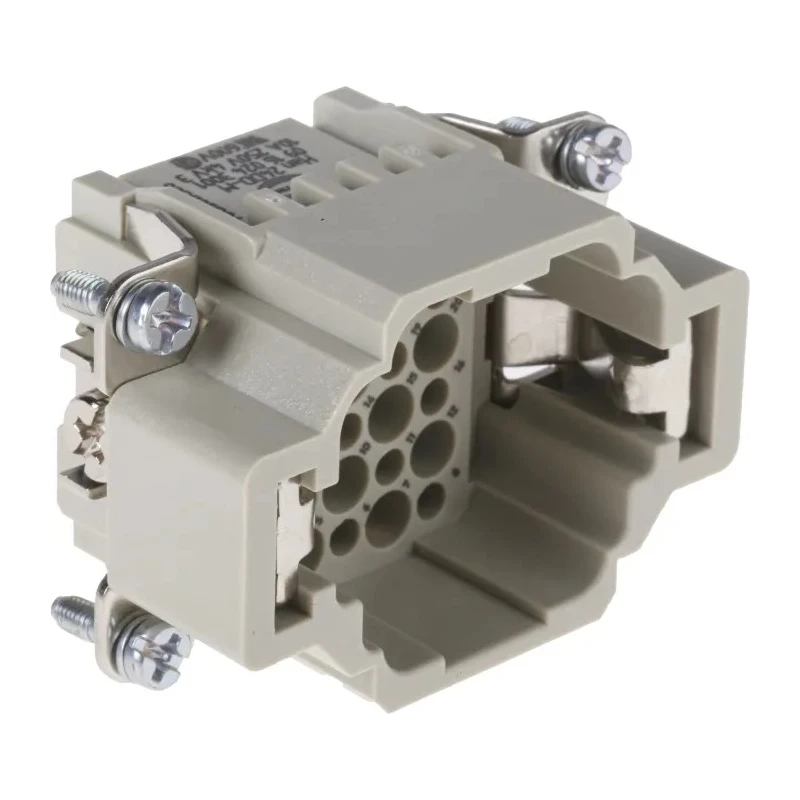

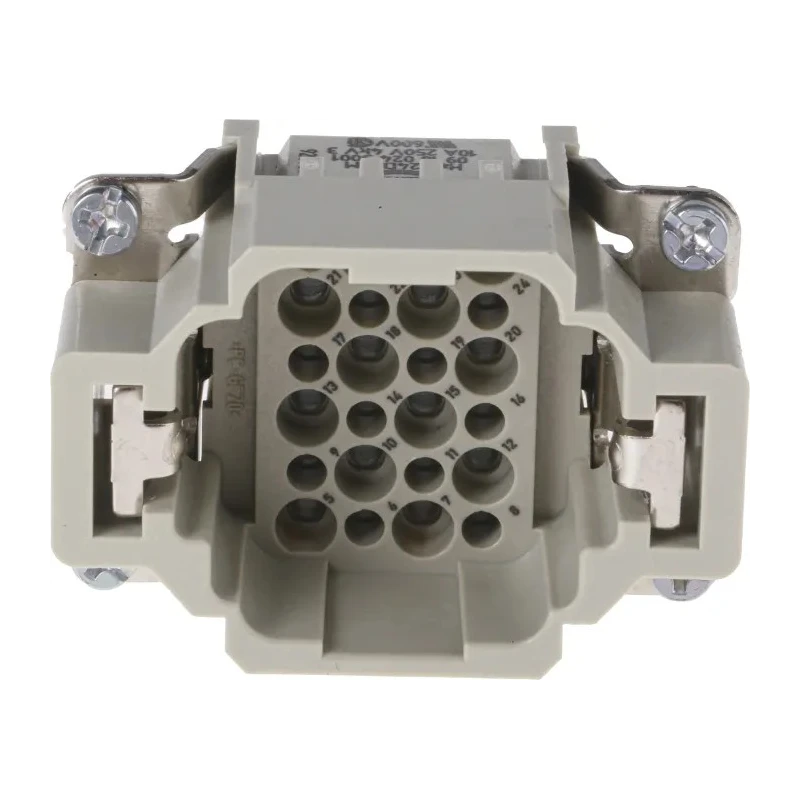

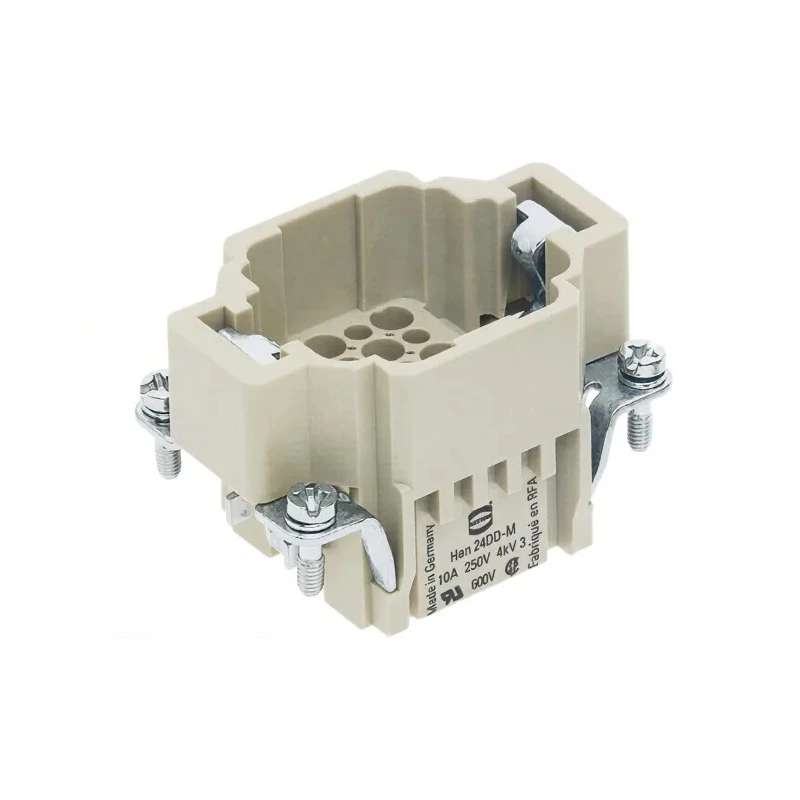

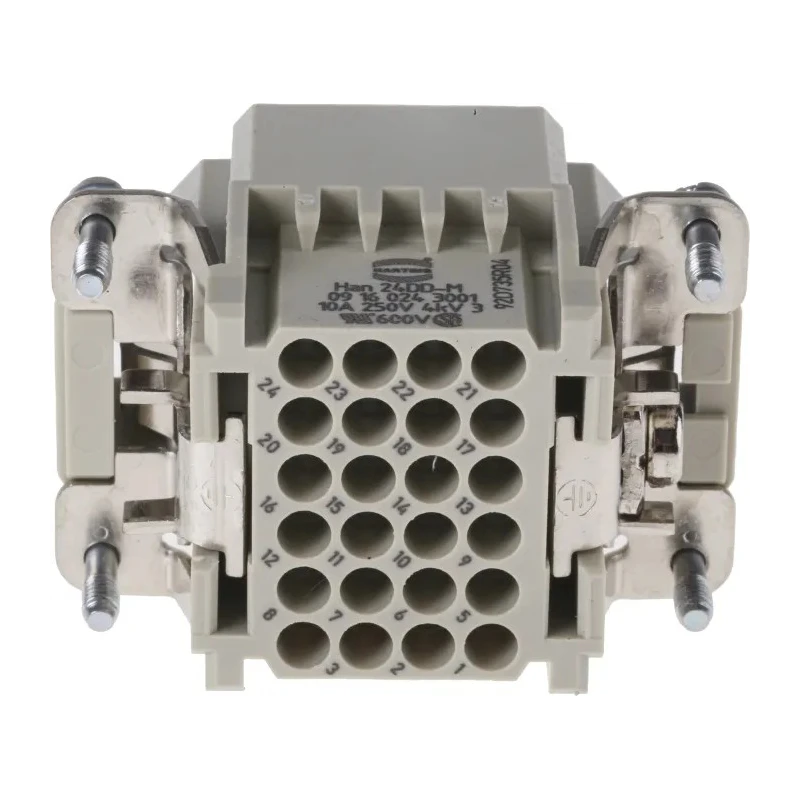

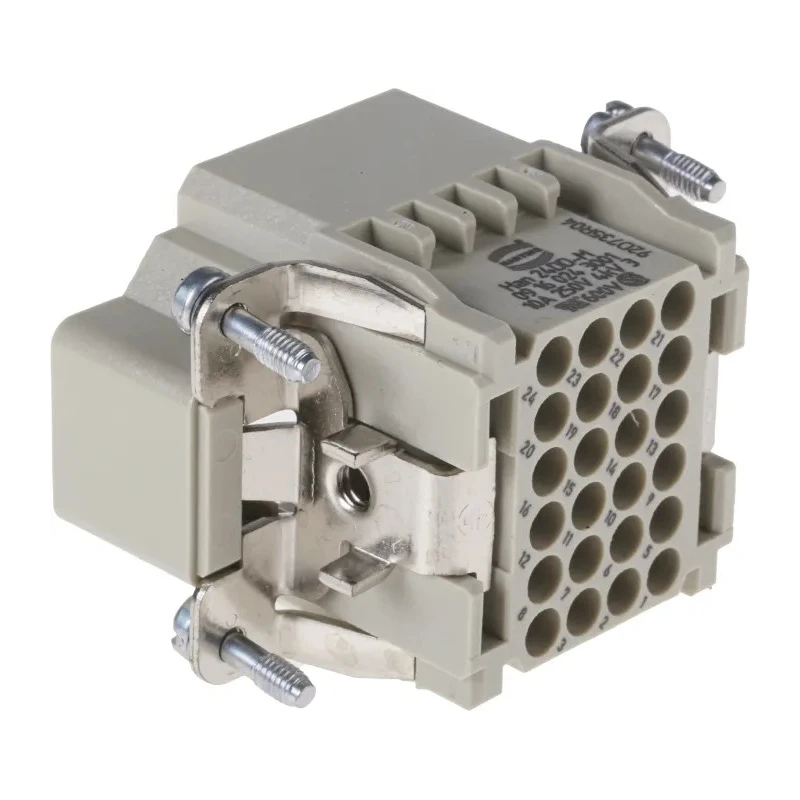

HARTING Heavy Duty Power Connector Module, 10A Current Rating, 24 Contacts, HAN DD Series Male, 250V Cable Mount 09160243001

Name: HARTING Heavy Duty Power Connector Module, 10A Current Rating, 24 Contacts, HAN DD Series Male, 250V Cable Mount 09160243001
Brand: HARTING
SKU: 200425
Price: 37.28 USD
Availability: InStock



Category Heavy Duty Power Connector Module Brand HARTING Condition New

Specifications

Country of Origin	Germany
Voltage	250V
Brand	HARTING
Orientation	Straight
Mount Type	Cable
Contact Material	Polycarbonate
Current Rating	10A
Series	HAN DD
Thread Size	M3 x 10
Sub Type	Connector Insert
Number of Rows	4
For Use With	Heavy Duty Power Connector
Pole Format	24+E
Number of Contacts	24
Connector Gender	Male
Minimum Wire Size mm²	0.14mm²
Maximum Wire Size mm²	2.5mm²
TE Connectivity Housing, 25 Way, 10A, Female, HND, 250 VBrand	TE Connectivity

Key Features

Supports current loads up to 10A for reliable power distribution.
Operates at 250V suitable for low-voltage industrial systems.

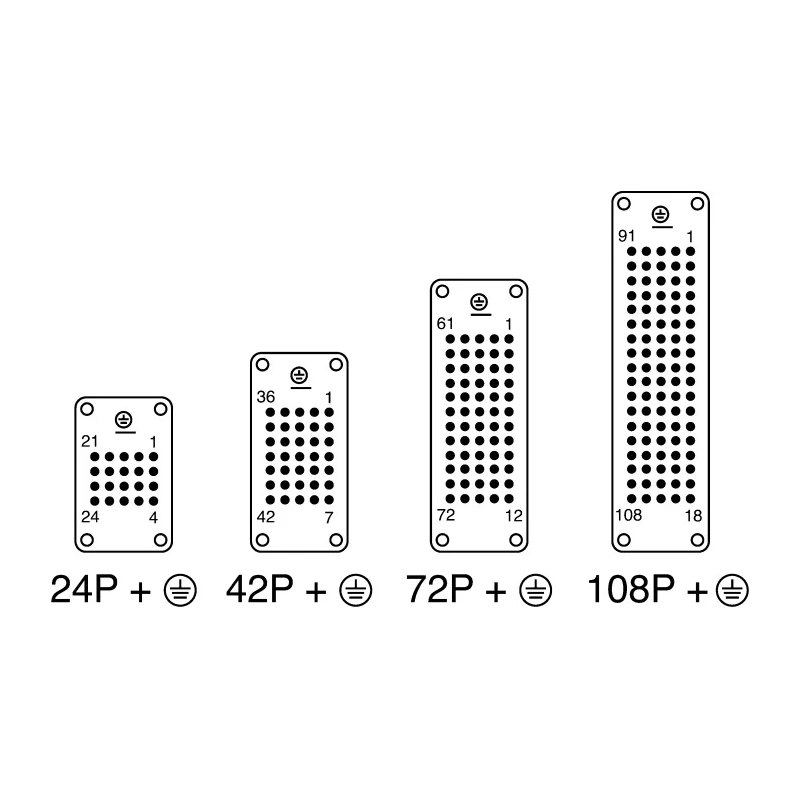

Features 24 contacts plus protective earth in a straight, cable mount male insert.
Compatible with conductor sizes from 0.14 to 2.5 mm² for versatile wiring.
Constructed with polycarbonate contact material providing durable insulation.
Crimp termination method ensures secure, vibration-resistant connections.
Mating life rating of 500 cycles supports frequent connect and disconnect use.
Rated for operating temperatures from -40°C to +125°C with high insulation resistance.

Product Description

HARTING 09160243001 Heavy Duty Power Connector Module is engineered for robust industrial power distribution applications, featuring a 10A current rating and rated voltage of 250V. This cable mount male insert is part of the HAN DD Series, providing a compact 24-contact layout plus protective earth designed to meet the needs of automation and electrical control systems.

This connector module supports conductor sizes ranging between 0.14 mm² and 2.5 mm², facilitating versatile cable selection. The use of polycarbonate for contact material ensures durable insulation and mechanical resilience, while the crimp termination system delivers vibration-resistant and secure electrical joints critical in industrial environments.

Its straight orientation and cable mounting type enable flexible installation options. The connector boasts a mating cycle durability of at least 500 operations, ensuring long-term reliability even under frequent connect-disconnect scenarios. Rated to function efficiently between -40°C and +125°C, it maintains insulation resistance above 1e10 Ω, making it suitable for harsh industrial conditions.

The product meets internationally recognized standards IEC 60664-1 and IEC 61984, with UL and CSA approvals further validating its suitability for industrial power distribution. It withstands impulse voltages up to 4 kV and is rated for pollution degree 3 environments, making it reliable in demanding installations.

Applications include factory automation power interconnections, control cabinet to motor supply leads, panel-to-harness power distribution, and environments requiring removable cable modules for maintenance. This module is supplied without crimp contacts, allowing customization with appropriate conductor contacts and crimp tools for tailored installation.

Supports current loads up to 10A for reliable industrial power distribution. Operates at 250V suitable for low-voltage systems. 24 contacts plus protective earth in a compact HAN DD Series male insert. Conductor range: 0.14 to 2.5 mm² for versatile cabling.

Polycarbonate contacts deliver durable insulation and reliability. Crimp termination provides secure, vibration-resistant connections. Mating life rated at 500+ cycles for repeated use. Operational temperature range from -40°C to +125°C.

Complies with IEC 60664-1 and IEC 61984; UL and CSA approved. Suitable for automation, industrial machinery, and panel power distribution. Explore EnvMart for more high-quality industrial power connectors and modules.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This module has a current rating of 10A, making it suitable for reliable power distribution in industrial applications.

It operates at a voltage rating of 250V, which is suitable for low-voltage industrial systems.

This connector module features a total of 24 contacts plus a protective earth, designed for robust connections.

It supports conductor sizes ranging from 0.14 mm² to 2.5 mm², allowing for versatile wiring options.

The mating life rating of this module is at least 500 cycles, ensuring durability for frequent connect and disconnect use.

It is rated for operating temperatures from -40°C to +125°C, making it suitable for harsh industrial environments.

The contacts are constructed from polycarbonate, providing durable insulation and mechanical resilience.

It utilizes a crimp termination method, which ensures secure and vibration-resistant connections.

Yes, it complies with IEC 60664-1 and IEC 61984, and has UL and CSA approvals for industrial applications.

This module features a cable mount type, allowing for flexible installation options in various applications.

The connector has a straight orientation, which aids in its installation and usage in different configurations.

It is suitable for applications such as factory automation power interconnections, control cabinet to motor supply leads, and panel-to-harness power distribution.
