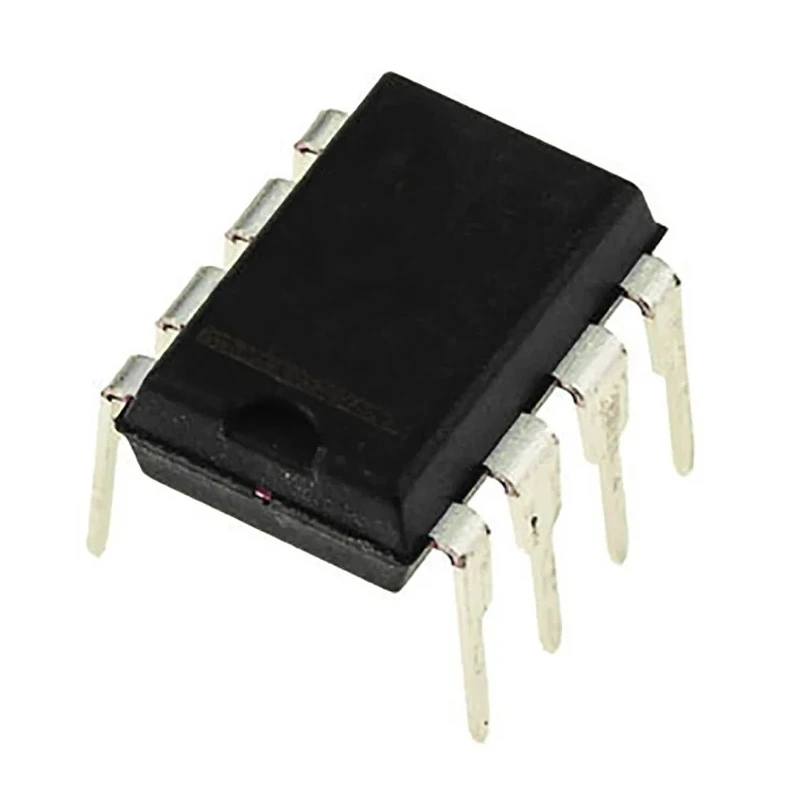

Lite-On DC Input Optocoupler Surface Mount 8-Pin DIP 1 Channel 25mA 5000Vrms Isolation LTV-3150

Lite-On LTV-3150 DC Input Optocoupler is a surface mount 8-pin DIP device designed for electrical isolation and signal transmission in various industrial and electronic applications.

This optocoupler features a DC input current type and one channel, making it ideal for single channel signal isolation tasks. The device offers a maximum forward voltage of 1.8 volts and can handle an input current up to 25mA, ensuring reliable and efficient operation within typical electronic circuits.

The isolation voltage is rated at 5000Vrms, providing excellent protection between input and output circuits in power supplies, motor control, and inverter systems. It complies with UL/cUL and IEC/EN/DIN EN 60747-5-5 standards, ensuring safety and performance reliability for industrial use.

Its operating temperature range from -40°C to 105°C allows for deployment in harsh environments, while the typical rise and fall time of 500 nanoseconds support fast response times necessary for gate drive applications in MOSFETs and IGBTs.

The 8-pin DIP package provides easy integration with existing PCB designs. The device is also equipped with a logic output stage capable of gate driving, making it suitable for controlling power transistors directly.

Designed with a DC input for stable control signals. Features 1 channel for single-channel applications. Capable of withstanding isolation voltage up to 5000Vrms. Surface mount mount type suitable for PCB assembly. Maximum forward voltage is 1.8V for efficient performance.

Maximum input current rated at 25mA for safe operation. Operating temperature range from -40°C to 105°C supports harsh environments. Typical rise and fall times of 500ns ensure fast switching. Package type is standard 8-pin DIP for compatibility with existing designs.

Compliance with UL/cUL and IEC/EN/DIN EN 60747-5-5 standards for quality assurance.

This optocoupler is widely used in industrial, laboratory, and power electronics applications such as motor control drives, power supply system inverters, and signal isolation for sensitive circuits. Its robust isolation rating and fast switching times ensure reliable performance in demanding environments.
