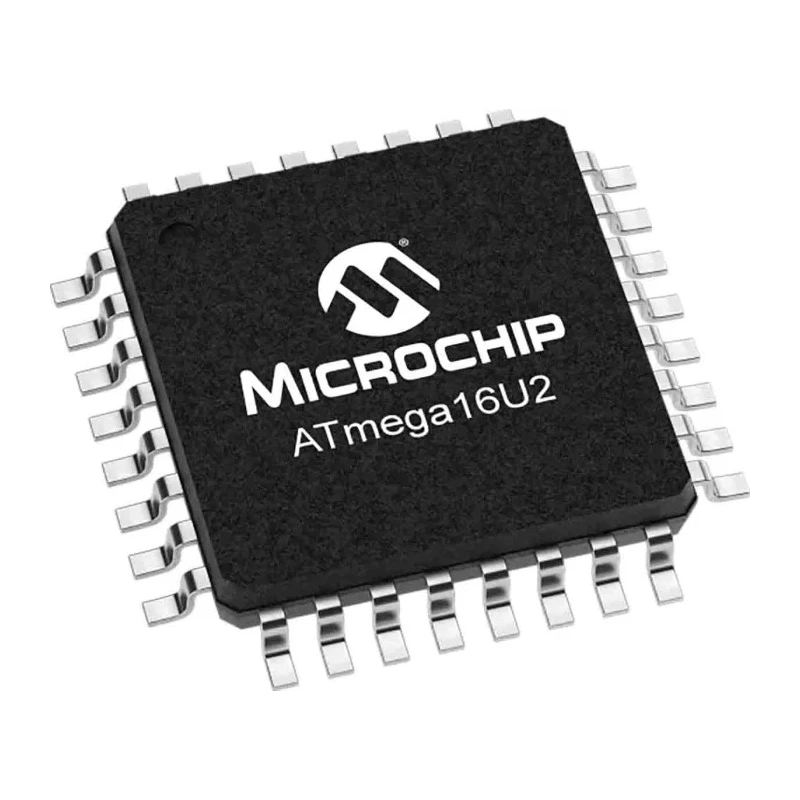

Microchip 8-bit AVR Microcontroller 16 MHz, 16kB FLASH, 32-Pin TQFP ATMEGA16U2-AU

Microchip ATMEGA16U2-AU is a CMOS 8-bit AVR microcontroller designed with enhanced RISC architecture delivering up to 16 MIPS throughput at 16 MHz. It operates efficiently over a supply voltage range of 2.7V to 5.5V, making it versatile for low-voltage applications.

This microcontroller integrates a 16kB in-system programmable flash memory with read-while-write capabilities, supported by 512 bytes of EEPROM and 512 bytes of SRAM. It also includes 22 programmable I/O lines enabling flexible connectivity for embedded systems.

The device features two flexible 8-bit Timer/Counters with compare functionality and pulse-width modulation (PWM), one USART, SPI serial communication ports, and a programmable watchdog timer with its own oscillator. It supports a debug wire interface for programming and on-chip debugging.

Power management is advanced with multiple selectable low-power modes: Idle mode allows the CPU to be halted while other modules continue running, Power-down mode halts the oscillator and halts most device functions preserving register contents, and Standby mode maintains the oscillator running while the device sleeps for rapid wake-up. This allows optimized power usage in energy-sensitive embedded applications.

This device supports programming security features such as programming lock, and hardware reset on USB bus reset without detachment. It provides master/slave SPI serial interface, internal calibrated oscillator, and multiple interrupt sources offering flexible control in complex systems.

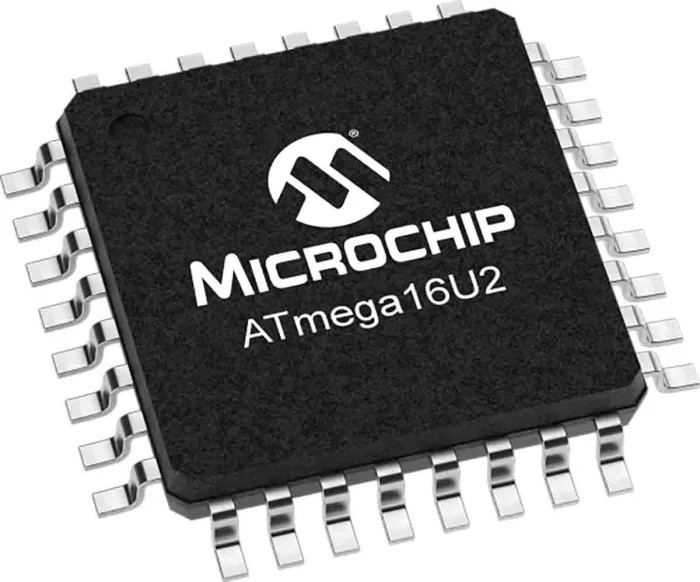

The compact TQFP 32-pin package (7mm x 7mm x 1.05mm) supports surface mounting on densely populated PCBs. The microcontroller is ideal for USB applications, industrial control, embedded computing, and automation systems requiring reliable AVR performance.

Based on AVR enhanced RISC architecture combining rich instruction set and 32 general-purpose working registers. Operates on a voltage supply range from 2.7V to 5.5V. Features 22 programmable I/O lines, two flexible Timer/Counters with compare modes and PWM functionality.

Integrated 512 bytes EEPROM, 512 bytes SRAM, and 16kB in-system programmable flash memory. Includes USART and SPI serial interfaces for robust communication. Offers several power-saving modes including Idle, Power-down, and Standby modes for energy efficiency.

Supports programming lock for software security and microcontroller reset on USB Bus reset without detach. Package dimensions approximately 7mm x 7mm x 1.05mm in a surface mount TQFP form. Suitable for industrial, embedded systems, and USB-based applications requiring efficient processing.
