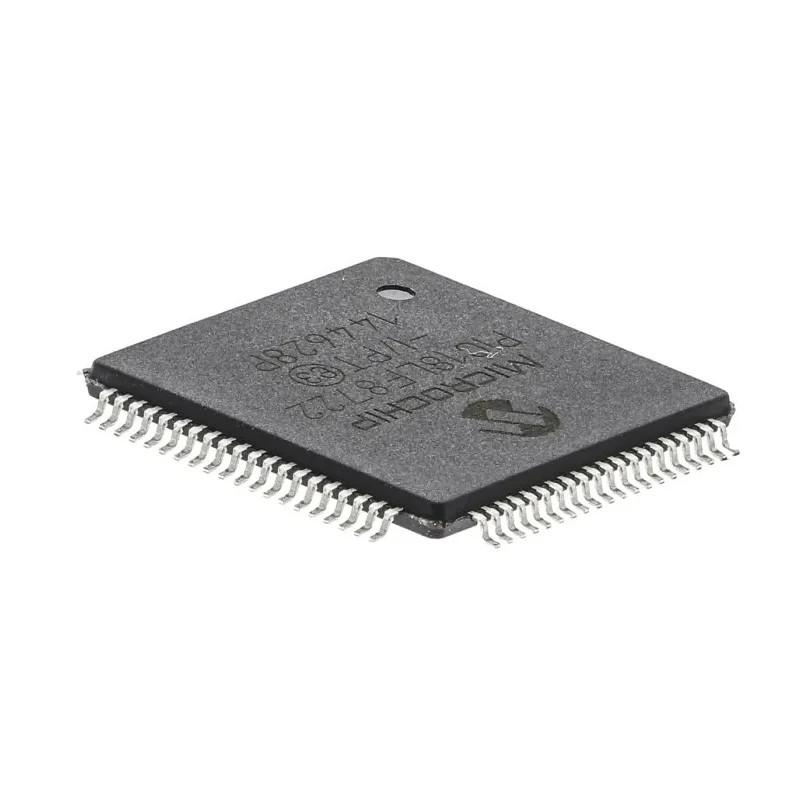

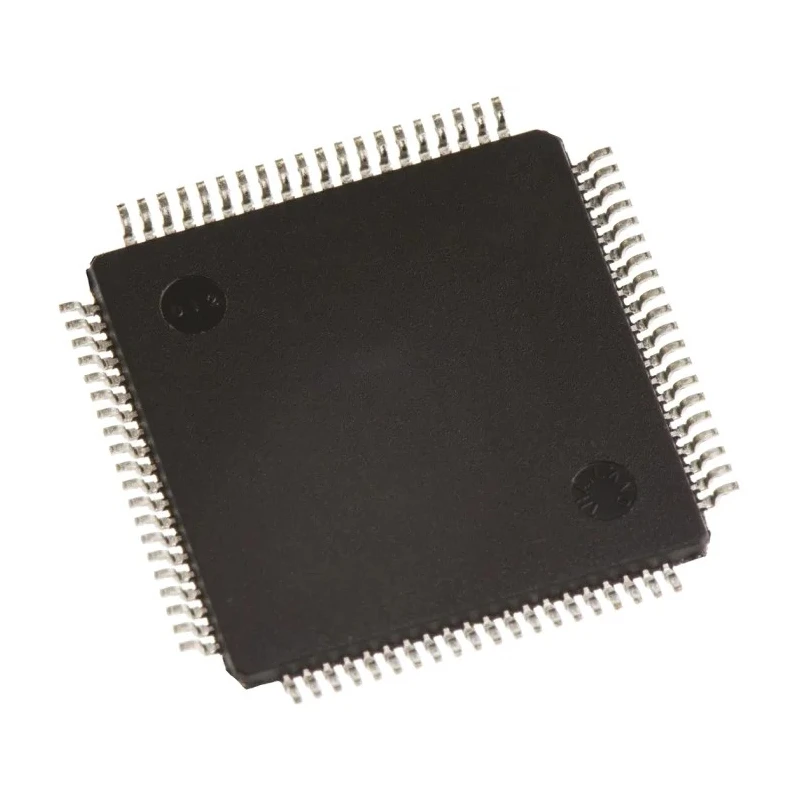

Microchip 8 bit PIC18F Microcontroller, 40 MHz, 1.024kB FLASH, 128 kB Memory, 80-Pin TQFP PIC18LF8722-I/PT

Microchip PIC18LF8722-I/PT 8 bit PIC18F Microcontroller operates at a maximum clock frequency of 40 MHz, offering high performance for embedded system applications. The microcontroller features a substantial 1.024kB of FLASH program memory and 128 kB expanded memory to accommodate complex software demands. It is housed in an 80-pin TQFP surface mount package, with compact dimensions of 12 mm width, 12 mm length, and 1.05 mm height ensuring suitability for space-constrained industrial applications.

The device operates over a wide supply voltage range from 2V to 5.5V and supports multiple low-power modes such as run, idle, and sleep states that optimize power consumption making it ideal for battery-powered and energy-sensitive applications. It includes 3.94kB RAM, five timers, and two analogue comparators enhancing its ability for precise timing and signal processing.

The microcontroller comes equipped with a 16-channel 10-bit Analog-to-Digital Converter (ADC) facilitating accurate analog signal measurement. Communication is supported via the SPI interface, and additional peripherals include multiple external interrupts, capture/compare/PWM modules enabling sophisticated motor control and signal generation requirements.

Safety and reliability are ensured with programmable brown-out resets, extended watchdog timers, and flexible oscillator structures with two-speed start-up capability. The wide operating temperature range from -40°C to 85°C qualifies the device for rigorous industrial and automotive environments.

This microcontroller family incorporates eXtreme Low Power (XLP) technology and uses a C compiler-optimized architecture for efficient software development. It supports in-circuit serial programming and debugging through two dedicated pins, improving development and testing efficiency.

Typical industrial, laboratory, automotive, and embedded applications benefit from this microcontroller’s robust design, power efficiency, and versatile peripheral set. It is RoHS compliant, ensuring environmental and manufacturing standard conformance.

Features 80-pin TQFP surface mount package suitable for compact designs. Operates within wide voltage range from 2V to 5.5V ensuring flexibility. Includes 3.94kB RAM and supports SPI interface for robust communication. Offers multiple timers and analogue comparators catering to precise control functions.

Incorporates advanced power management modes for low power consumption. Supports extended operating temperature range from -40°C to 85°C for industrial environments. Equipped with 16 channels of 10-bit ADC for accurate signal conversion.

Programmable brown-out reset and watchdog timers enhance reliability. Designed with RISC architecture and in-circuit programming/debugging capability. Explore the Microcontroller category on EnvMart to discover related devices and components for embedded design projects and industrial applications.
