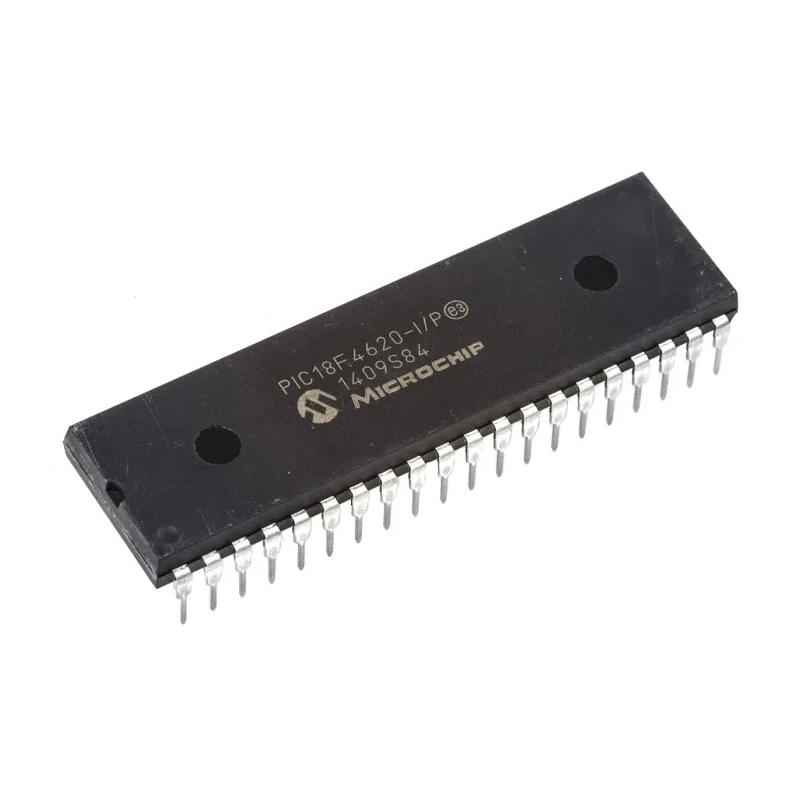

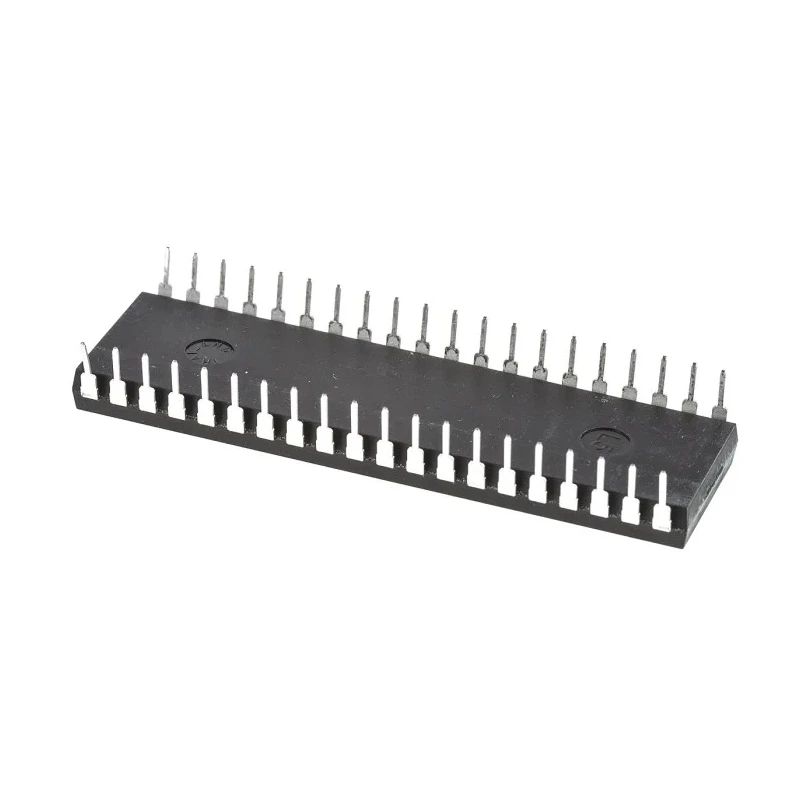

Microchip 8-Bit PIC18F Microcontroller 40 MHz, 1.024kB Flash, 64kB Program Memory, 40-Pin PDIP PIC18F4620-I/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.95mm |
| Length | 53.21mm |
| Model | PIC18F4620-I/P |
| Width | 14.73mm |
| Mount Type | Through Hole |
| Series | PIC18F |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 3.99kB |
| Interface Type | SPI |
| Pin Count | 40 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 1.024, 64kB |
| Maximum Clock Frequency | 40MHz |
| Number of Programmable I/Os | 33 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 1.02kB |
| Number of Timers | 4 |
| Instruction Set Architecture | RISC |
| ADCs | 13 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- High-performance 8-bit PIC microcontroller architecture operating at 40 MHz.
- Integrated 64 kB of FLASH program memory and 3.99 kB of RAM.
- Includes 13 channels of 10-bit analog-to-digital converters for precise measurement.
- Supports SPI interface for synchronous serial communication.
- Operates within a supply voltage range of 2 V to 5.5 V ensuring versatile power options.
- Equipped with 33 programmable input/output pins for flexible device control.
- Provides 4 timers for timing and counting applications.
- Features power saving nanoWatt technology for energy efficient embedded systems.
Product Description
Microchip PIC18F4620-I/P is a high-performance 8-bit microcontroller designed on the PIC18F series architecture, featuring a maximum clock speed of 40 MHz. This device integrates 64 kB of flash program memory with an effective program memory size of 1.024 kB and 3.99 kB RAM. The microcontroller is encapsulated within a 40-pin PDIP package suitable for through-hole mounting.
Its extensive peripheral set includes 13 channels of 10-bit Analog-to-Digital Converters (ADCs), enabling high-precision analog measurement crucial for industrial, laboratory, and embedded system applications. The device supports SPI interface for serial communication and offers 33 programmable input/output pins for flexible design integration.
The microcontroller operates reliably over a wide temperature range (-40°C to +85°C) and a broad supply voltage range from 2 V up to 5.5 V, suitable for robust and energy-efficient embedded applications. It integrates power-saving nanoWatt technology to minimize power consumption in battery-powered devices.
Additional features include multiple timers, extended instruction set, analog comparators, and enhanced watchdog and brown-out reset capabilities, making it ideal for automotive, industrial automation, and control systems where reliability and precision are vital.
High CPU speed of 40 MHz with 75 instruction set, expandable to 83 instructions. 31-level hardware stack providing efficient function call management. On-chip configurable RC oscillator allowing flexible clock source selection.
Power-On Reset (POR), Power-Up Timer (PWRT), and Brown-Out Reset (BOR) for system stability. In-Circuit Serial Programming (ICSP) and Debug support for convenient development and troubleshooting.
This microcontroller is well suited for applications in industrial control, automotive electronics, instrumentation, and consumer electronics development where processing speed and peripheral integration are critical.
Explore our catalog in the Microcontroller category for a wide range of semiconductor products tailored to diverse embedded application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 40 MHz.
It features a program memory size of 1.024 kB, with a total integrated flash program memory of 64 kB.
This microcontroller has 33 programmable input/output pins.
It operates reliably within a temperature range of -40°C to +85°C.
This model supports the SPI interface for synchronous serial communication.
The RAM size of this microcontroller is 3.99 kB.
It comes in a 40-pin PDIP package suitable for through-hole mounting.
The PIC18F4620-I/P includes 13 channels of 10-bit analog-to-digital converters.
The microcontroller operates within a supply voltage range of 2 V to 5.5 V.
This model is equipped with 4 timers for timing and counting applications.
It features power-saving nanoWatt technology to minimize power consumption in embedded systems.
The country of origin for this microcontroller is India.
