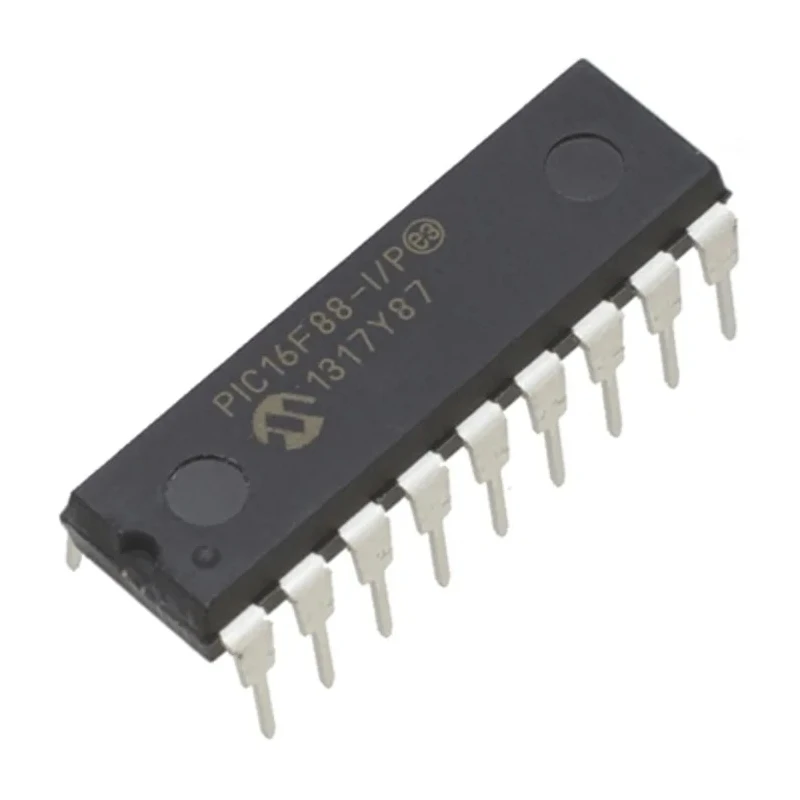

Microchip 8 bit PIC PIC16F Microcontroller 20 MHz 7.168 kB Flash 256B EEPROM 18-Pin PDIP PIC16F88-I/P

Microchip PIC16F88-I/P is an 8-bit PIC microcontroller designed with Microchip's PIC architecture, featuring a through-hole 18-Pin PDIP package ideal for embedded system applications.

This microcontroller operates at a maximum clock frequency of 20 MHz, providing up to 5 MIPS processing speed. It includes 7.168 kB of flash memory combined with 256 bytes of EEPROM and 368 bits of RAM, offering sufficient memory for medium complexity applications.

The device architecture is a Mid-Range core with 35 instructions and an 8-level deep hardware stack. It supports a selectable internal oscillator ranging from 8 MHz to 31 kHz and comes with integrated peripherals such as 3 timers, 2 analog comparators, and 7 channels of 10-bit ADC, allowing precise analog measurements.

The microcontroller supports synchronous serial port (SSP) with SPI and I2C interfaces, In-Circuit Serial Programming (ICSP), and In-Circuit Debug (ICD) functionalities, which facilitate easy programming and debugging during development.

Designed to operate reliably in industrial and commercial environments, it functions between -40°C to 85°C, with a power-efficient profile consuming a maximum of 1 watt and supply voltage limits from 2 V to 5.5 V.

Its dimensions measure 22.99 mm in length, 6.6 mm in width, and 3.68 mm in height, packaged for through-hole mounting on circuit boards. Operates with a maximum clock frequency of 20 MHz for efficient processing. Features 7.168 kB of flash program memory and 256 bytes of EEPROM.

Utilizes 8-bit PIC architecture with 22 programmable I/O pins. Equipped with 3 timers, 2 analog comparators, and 7 channels of 10-bit ADC for versatile applications. Supports SPI interface and In-Circuit Serial Programming for ease of development.

Robust operation from -40°C to 85°C operating temperature range. Measures 22.99 mm length, 6.6 mm width, and 3.68 mm height in a through-hole PDIP package. Low power consumption with a maximum power dissipation of 1 W and supply voltage range from 2 V to 5.5 V.

This microcontroller is widely used in embedded systems for industrial, automotive, consumer electronics, and educational applications, providing a balance of performance and peripheral integration.
