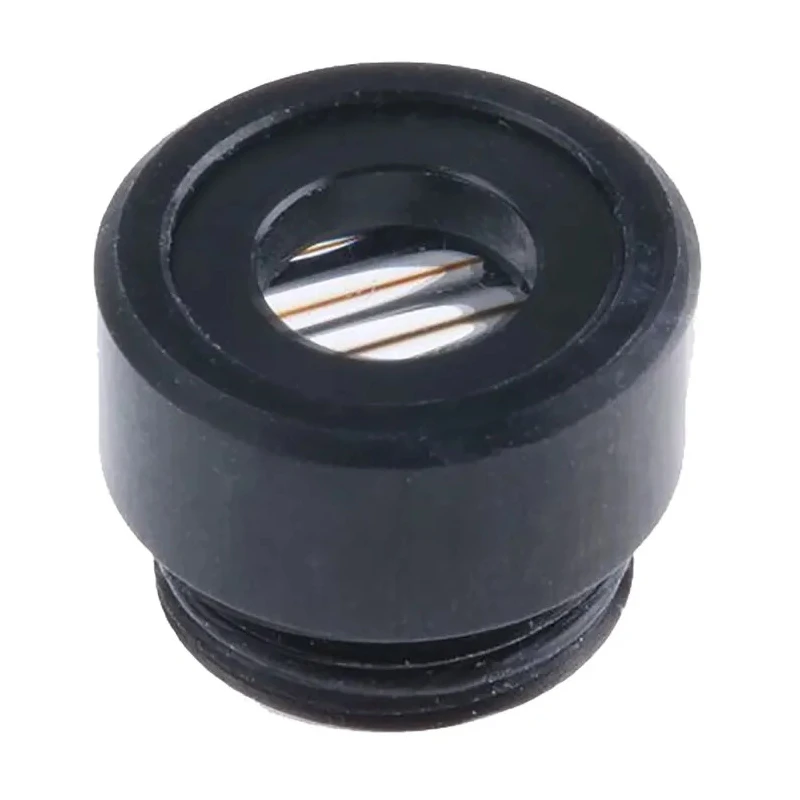

Global Laser 4.57° Fan Angle Grid Shape DOE Laser Lens with 5 mm Exit Aperture 1125-374-000

Global Laser 1125-374-000 is a precision Laser Lens engineered with a 4.57° fan angle and grid-shaped beam emission via a diffractive optical element (DOE) lens. It features a 5 mm exit aperture designed to deliver controlled and uniform beam shaping for industrial and electronic applications.

This lens is ideal for transforming laser diode outputs, particularly compatible with the LaserLyte-Flex series, converting projected dots into intricate patterns such as lines, crosses, and 4x4 grids. The optical design utilizes moulded multi-rod lenses to achieve accurate beam distribution patterns necessary for advanced laser applications.

The product is part of the M9 series and adheres to RoHS compliance, ensuring environmentally safe and regulated material usage. Its manufacturing in the United Kingdom underscores its high-quality production standards and reliability for diverse industrial use cases.

Common applications of this laser lens include precision laser modules in electronics manufacturing, measurement instrumentation, optical testing setups, and various laser component assemblies where beam pattern control is critical.

The lens is supplied as a standalone component for integration into broader laser systems, enabling customization of beam emission patterns to suit specific project or industrial requirements.

Laser lens designed for grid beam emission shape. Employs diffractive optical element (DOE) lens technology. Fan angle specification is 4.57 degrees for accurate light distribution. 5 mm exit aperture size allows controlled beam exit.

Complies with RoHS standards ensuring safe usage. Part of the M9 series designed for LaserLyte-Flex compatibility. Manufactured in the United Kingdom ensuring high quality. Explore more laser optical components and accessories at EnvMart to enhance your industrial and electronic projects.
