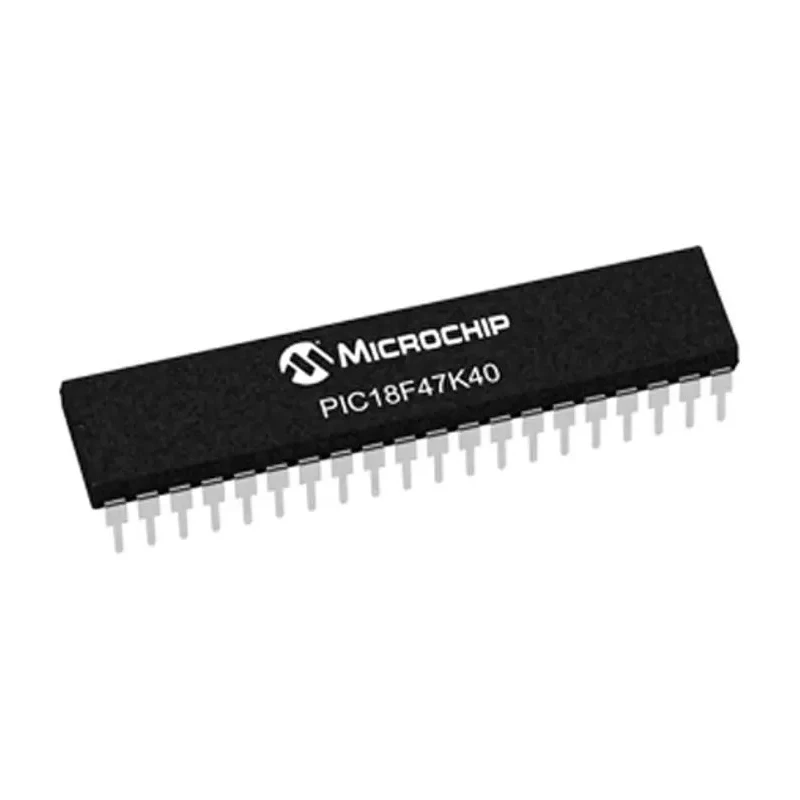

Microchip 8 bit PIC18F Microcontroller 64 MHz 128kB FLASH 40-Pin DIP PIC18F47K40-I/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.95mm |
| Length | 53.21mm |
| Model | PIC18F47K40-I/P |
| Width | 14.73mm |
| Mount Type | Surface |
| Series | PIC18F |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 3.73kB |
| Communications | 2 x I2C/SPI and 2 x EUSART with LIN support |
| Operating Voltage | 2.3 to 5.5V |
| Interface Type | SPI |
| Standards/Approvals | RoHS |
| Pin Count | 40 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 128kB |
| Maximum Clock Frequency | 64MHz |
| Number of Programmable I/Os | 33 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 128kB |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 35 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 5 bit |
Key Features
- Equipped with 128kB FLASH program memory and 3.73kB RAM for efficient data processing.
- Operates at a maximum clock frequency of 64MHz ensuring high-speed performance.
- Supports SPI interface and includes 33 programmable I/O pins for hardware flexibility.
- Wide operating voltage range from 2V to 5.5V suitable for various power conditions.
- Integrated 5-bit DACs, 2 analog comparators, and 35 channels of 10-bit ADC for precise analog processing.
- Built-in eXtreme Low-Power technology for energy efficient operation in embedded systems.
- Includes internal 64MHz oscillator and supports in-circuit programming and debugging.
- Operating temperature range from -40°C to 85°C ensuring reliability in harsh environments.
Product Description
Microchip PIC18F47K40-I/P is a high-performance 8 bit PIC microcontroller featuring a PIC18F core architecture. With a maximum clock frequency of 64 MHz and 128 kB of FLASH program memory, this microcontroller is designed to deliver efficient processing power for a wide range of applications.
This device supports a wide operating voltage between 2V and 5.5V and is equipped with advanced peripherals including 33 programmable I/O pins, 35 channels of 10-bit ADC, 5-bit DACs, and 2 analog comparators making it ideal for mixed-signal processing.
The PIC18F47K40-I/P includes integrated in-circuit serial programming (ICSP) and debugging capabilities allowing developers to streamline development and testing processes. Its built-in eXtreme Low-Power technology makes it particularly suited for battery-operated and energy-sensitive applications.
Designed with robust temperature operating limits from -40°C to 85°C, it ensures reliable operation under industrial and automotive conditions. The compact 40-pin DIP package measures 53.21mm by 14.73mm by 4.95mm, suitable for easy integration in standard PCB layouts.
Typical applications include embedded systems, industrial controls, communication devices, automotive electronics, and consumer products requiring low power and cost-effective microcontroller solutions.
128kB Flash memory ensures ample program storage. 64 MHz internal oscillator provides fast processing speeds. In-circuit programming and debugging simplifies system development. Wide operating voltage and temperature range for versatile deployment.
Compliance with RoHS ensures environmentally responsible manufacturing.
This Microchip PIC18F47K40-I/P microcontroller combines efficient performance, power management, and rich peripherals making it an excellent choice for industrial, automotive, and consumer electronics development. Browse other Microcontrollers in the Electronics & Electricals category at EnvMart for compatible components and solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 64 MHz, providing high-speed performance for various applications.
It operates within a voltage range of 2.3V to 5.5V, making it suitable for various power conditions.
This microcontroller features 128 kB of FLASH program memory, allowing for ample program storage.
It supports 2 x I2C/SPI and 2 x EUSART with LIN support, providing flexibility in communication options.
The PIC18F47K40-I/P includes 3.73 kB of RAM for efficient data processing.
This model is equipped with 33 programmable I/O pins, enhancing hardware flexibility for various applications.
It has an operating temperature range from -40°C to 85°C, ensuring reliability in harsh environments.
The PIC18F47K40-I/P comes in a 40-pin DIP package, which is suitable for standard PCB layouts.
This model features 35 channels of 10-bit ADC, enabling precise analog processing.
Yes, it includes 2 analog comparators and 5-bit DACs for advanced mixed-signal processing capabilities.
The PIC18F47K40-I/P complies with RoHS standards, ensuring environmentally responsible manufacturing.
The height of this microcontroller is 4.95 mm, making it compact for various applications.
