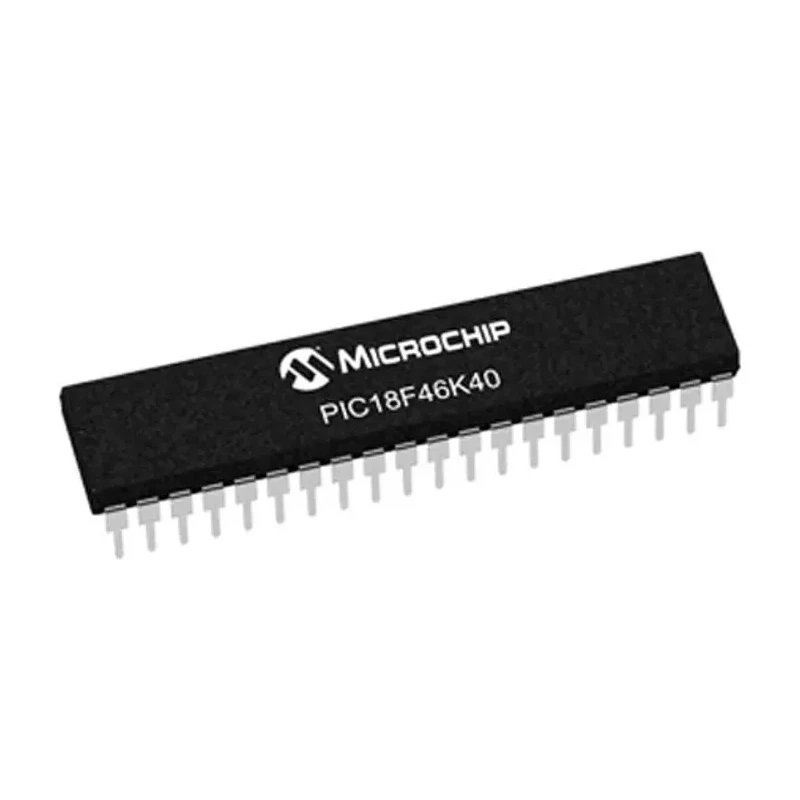

Microchip 8-Bit PIC18F Microcontroller 64 MHz 64kB FLASH 40-Pin DIP PIC18F46K40-I/P

Microchip PIC18F46K40-I/P is an advanced 8-bit PIC microcontroller designed for low power and high performance applications. Featuring a robust PIC18F core with a 3-level hardware stack, it operates at a clock frequency up to 64 MHz. This device incorporates 64kB of FLASH program memory and 3.73kB of RAM, making it suitable for complex embedded systems and control applications.

The microcontroller supports up to 33 programmable I/O pins and comes in a 40-pin Dual Inline Package (DIP), enabling easy prototyping and integration in various industrial, laboratory, and commercial electronics projects.

It offers versatile analog capabilities with 35 channels of 10-bit ADC, two analogue comparators, and 5-bit DACs, facilitating precise signal measurement and conversion. Its communication interfaces include two I2C/SPI channels and two EUSART channels with LIN protocol support, providing flexible data exchange options for embedded network systems.

Additional features include an internal 64 MHz oscillator, hardware capacitive voltage divider for touch sensing applications, zero-cross detection for AC line sensing, and in-circuit serial programming (ICSP) for simplified firmware updates and debugging.

This microcontroller operates over a wide voltage range from 2.3 to 5.5 volts and can sustain power dissipation up to 1 watt, with a robust operating temperature window from -40°C to 85°C, making it ideal for use in industrial automation, HVAC control, automotive electronics, and consumer electronic applications.

Operates at 64 MHz clock frequency for high-speed processing. 64kB Flash program memory with self-programming capability. 35 x 10-bit ADC channels and 5-bit DACs for analog interfacing. Communication interfaces: 2 x I2C/SPI, 2 x EUSART with LIN support.

In-circuit serial programming and on-chip debugging. Wide operating temperature and voltage range for industrial use. Compact and easy-to-use 40-pin DIP package.

Microchip PIC18F46K40 is a reliable microcontroller choice for diverse embedded system projects requiring robust analog interfaces, communication flexibility, and low power operation. It supports development for industrial, laboratory, automation, and consumer electronics industries. Explore the full range of Microchip Microcontrollers on EnvMart for your application needs.
