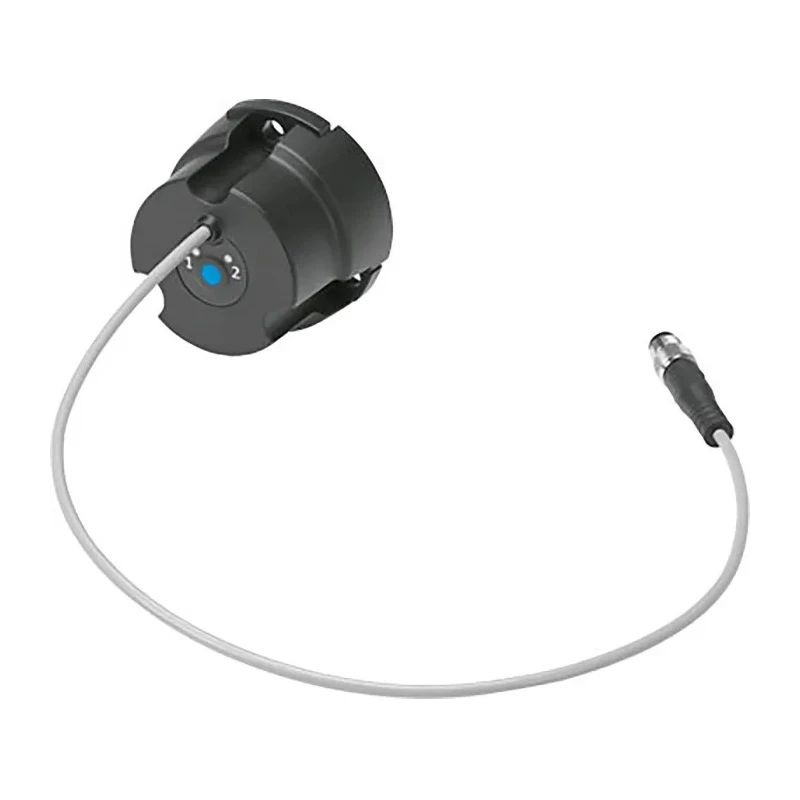

Festo M 8 Plug Connector Pneumatic Sensor, Round Polyester Nickel Plated Brass Housing, IP65 IP68, 10 30 V dc, Magnetic Hall
Specifications
| Country of Origin | Bulgaria |
|---|---|
| Voltage | 10, 30V dc |
| Brand | Festo |
| Model | IP65 |
| IP Rating | IP65, IP68 |
| Housing Material | Polyester, Nickel Plated Brass, Reinforced Polyamide |
| Construction | Round |
| Series | SRBS |
| Maximum Operating Temperature | 70°C |
| Measurement Principle | Magnetic Hall |
| Minimum Operating Temperature | -20°C |
| For Use With | DRVS 16 |
| Output Function | NO, NC, Switching output, 2 x NPN, 2 x PNP |
| Standards/Approvals | EN 60947-5-2, RoHS, RCM trademark, c UL us - listed (OL), CE marking to EU EMC Directive |
| Electrical Connection Type | M 8 Plug Connector |
| Switching Action | NPN, PNP |
Key Features
- The sensor supports NPN and PNP switching output functions with NO and NC configurations.
- It operates at voltages of 10 to 30 V dc with magnetic Hall measurement principle for accurate position sensing.
- The product features IP65 and IP68 ingress protection ratings enabling operation in harsh environments.
- Equipped with LED indicators for clear visual status feedback.
- Designed to detect rotation of shafts from DRVS and DSM rotary drives with sensing range over 270°.
- Operating temperature range from -20°C to 70°C ensures wide applicability.
- Quick assembly and non-contact sensing increase sensor life and reliability.
- Complies with EN 60947-5-2 standards and carries RoHS, RCM, c UL us - listed, and CE EMC directives certifications.
Product Description
Festo SRBS-Q12-16-E270-EP-1-S-M8 is a high-performance pneumatic sensor with a robust round design and an M 8 plug connector, built for industrial and fluid power applications. Its housing combines polyester, nickel-plated brass, and reinforced polyamide, providing durability and resistance to demanding environments. The sensor uses a magnetic Hall effect principle to detect the position and rotation of shafts from rotary drives such as the DRVS and DSM series.
With a voltage rating of 10 to 30 V dc, it supports both NPN and PNP switching outputs, configured as normally open (NO) or normally closed (NC), providing flexible integration options. The sensor has IP65 and IP68 ingress protection levels, ensuring resistance to dust and water immersion, making it suitable for harsh industrial, manufacturing, HVAC, and automation settings.
Featuring LED indicators, the sensor offers instant visual feedback on operational status. The sensing range exceeds 270°, allowing precise rotational detection over wide angles. The device operates reliably in temperatures from -20°C up to 70°C, ensuring consistent performance across varied industrial climates.
Its quick-assembly design facilitates installation without needing to manually locate switching points, extending service life through non-contact sensing technology. Compliance with EN 60947-5-2 standards alongside RoHS, RCM trademark, c UL us - listed (OL), and CE EMC Directive certifications adds assurance for safety and environmental regulations.
The sensor supports NPN and PNP output functions with NO and NC switching. Durable round construction with robust housing materials ensures longevity. IP65 and IP68 rating provides excellent protection against dust and water ingress.
10 to 30 V dc operating voltage accommodates various industrial systems. Magnetic Hall effect sensing principle enables precise position detection. Wide operating temperature range from -20°C to 70°C for versatile environments.
LED indicator simplifies status monitoring during operation. Designed for detecting rotary drive shaft positions for applications in fluid power and pneumatic systems.
This pneumatic sensor is ideal for industrial automation, manufacturing equipment, pneumatic cylinders control, and other machinery requiring contactless position sensing and signaling. Explore the Festo range of Pneumatic Sensors and connectors at EnvMart for reliable industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a voltage range of 10 to 30 V dc.
This model has IP65 and IP68 ingress protection ratings, ensuring resistance to dust and water immersion.
The sensor has a sensing range that exceeds 270°, allowing for precise rotational detection.
It supports both NPN and PNP switching output functions, configurable as normally open (NO) or normally closed (NC).
The maximum operating temperature is 70°C, making it suitable for various industrial environments.
The housing is made of polyester, nickel-plated brass, and reinforced polyamide, providing durability in demanding environments.
It features an M 8 plug connector for electrical connection.
The minimum operating temperature is -20°C, allowing it to function in colder environments.
It is designed for use with DRVS 16 rotary drives.
It complies with EN 60947-5-2 standards and carries RoHS, RCM, c UL us - listed, and CE EMC directives certifications.
The sensor features a robust round construction, suitable for industrial applications.
It is suitable for industrial automation, manufacturing equipment, and pneumatic cylinder control, requiring contactless position sensing.
