| Country of Origin | Taiwan |
|---|---|
| Diameter | 4mm |
| Brand | RS PRO |
| Colour | Red |
| Model | 613-9772 |
| Insulation | Insulated |
| Overall Length | 16.5mm |
| Contact Material | Copper |
| Series | RS PRO |
| Insulation Material | Vinyl |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Per Unit, RS stock no | 613-9772 |
| RS stock no | 270-7624 |
| Splice Type | Parallel |
| RS PRO Butt Wire Splice Connector, Red, Insulated, Tin 16 AWGBrand | RS PRO |
| RS PRO Parallel Splice Connector, Red, Insulated, Tin 16 AWGRS Stock No. | 270-7624Brand: RS PRO |
| PL Crimp Butt Splice Terminal, Red, Insulated, Tin 22 → 16 AWGBrand | NEUTRAL |

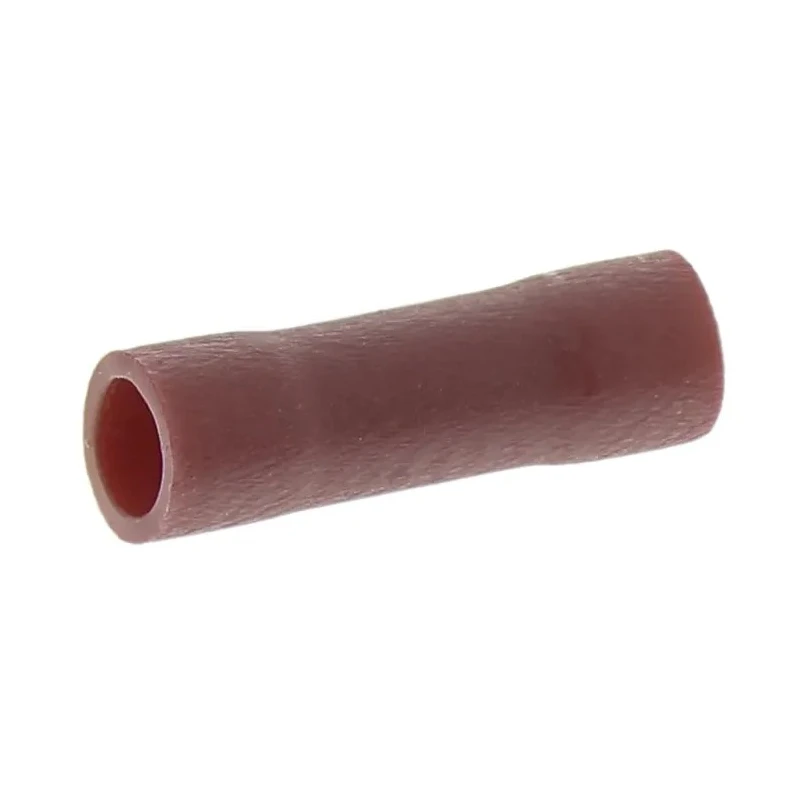

RS PRO 613-9772 Parallel Splice Connector is a high-quality insulated crimp butt splice terminal designed for efficient, solderless electrical wire joining. It features tin-plated copper contacts and red vinyl insulation for durability and safe wire handling. The product accepts wire sizes from 0.5 mm² (22 AWG) up to 1.5 mm² (16 AWG), with an overall length of 16.5 mm and a diameter of 4 mm, making it compact and practical for various wiring tasks.
The red insulation serves as a color-coded aid for wire size identification, reducing errors and enhancing efficiency during installation.
This connector is widely used across industrial control setups, automotive and transportation wiring, machine building projects, and electrical or electronic equipment assembly. It enables electricians and technicians to repair, extend, or modify electrical circuits safely and reliably without soldering.
Installation involves stripping the wire ends, inserting them into the connector's copper tube, and applying a suitable crimp tool to achieve consistent termination. The compression-style connection guarantees maximum contact with wires and provides resistance to mechanical stresses.
The RS PRO Parallel Splice Connector does not come with specific certifications but meets standard quality expectations for industrial and commercial applications. Its small pack size is individually sold under RS stock no: 613-9772, with larger pack options available.
Provides a secure, solderless electrical connection using a crimp method. Insulated with red vinyl for safety and easy wire size identification. Tinned copper contacts enhance corrosion resistance and conductivity. Suitable for wire sizes ranging from 0.5 mm² to 1.5 mm² or 22 AWG to 16 AWG.
Compact overall length of 16.5 mm and diameter of 4 mm for versatile applications. Constructed to meet industrial and commercial electrical wiring needs. Ideal for automotive, machine building, and industrial control systems.
Easy to use with compatible crimping tools for reliable compression-style connections. Explore more RS PRO electronic components and connectors in our comprehensive catalog for professional and industrial users.
