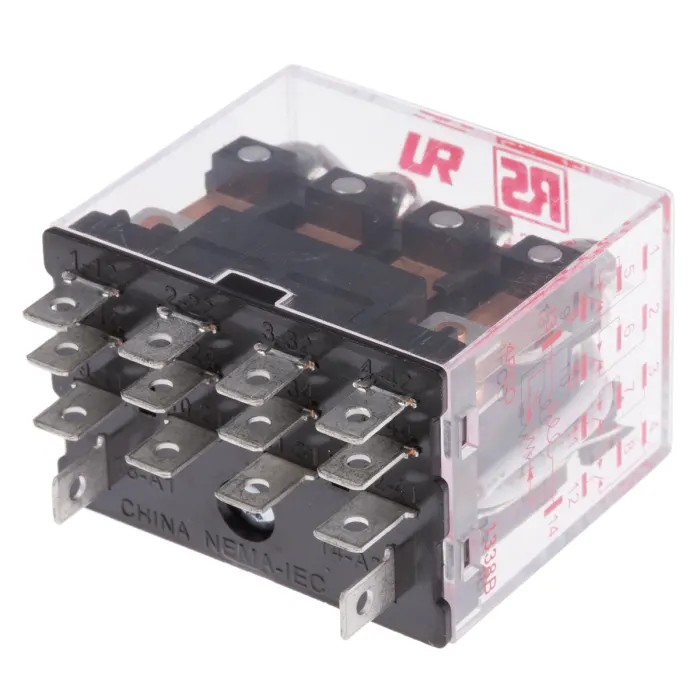

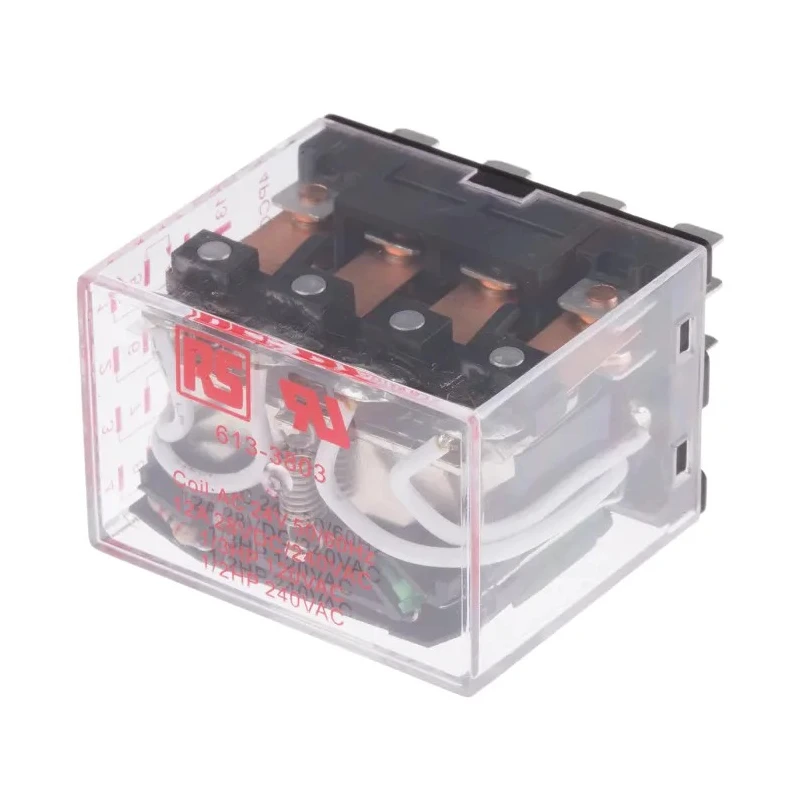

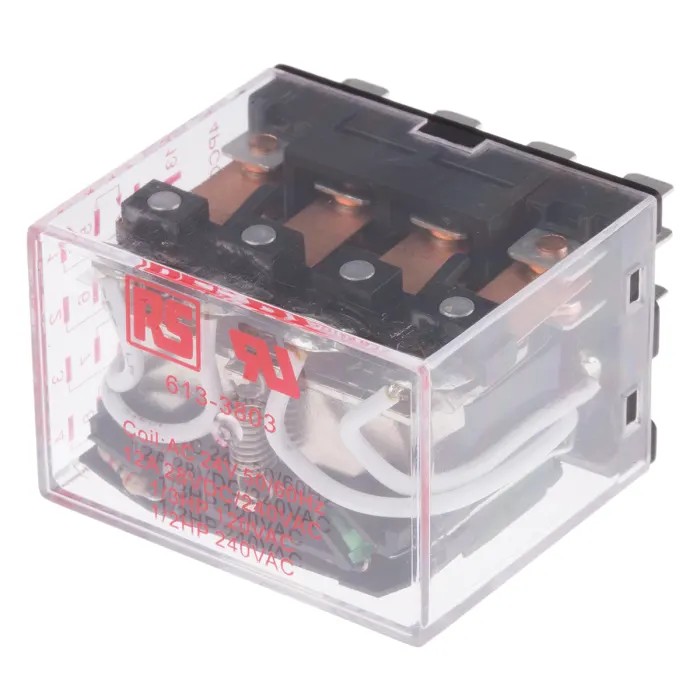

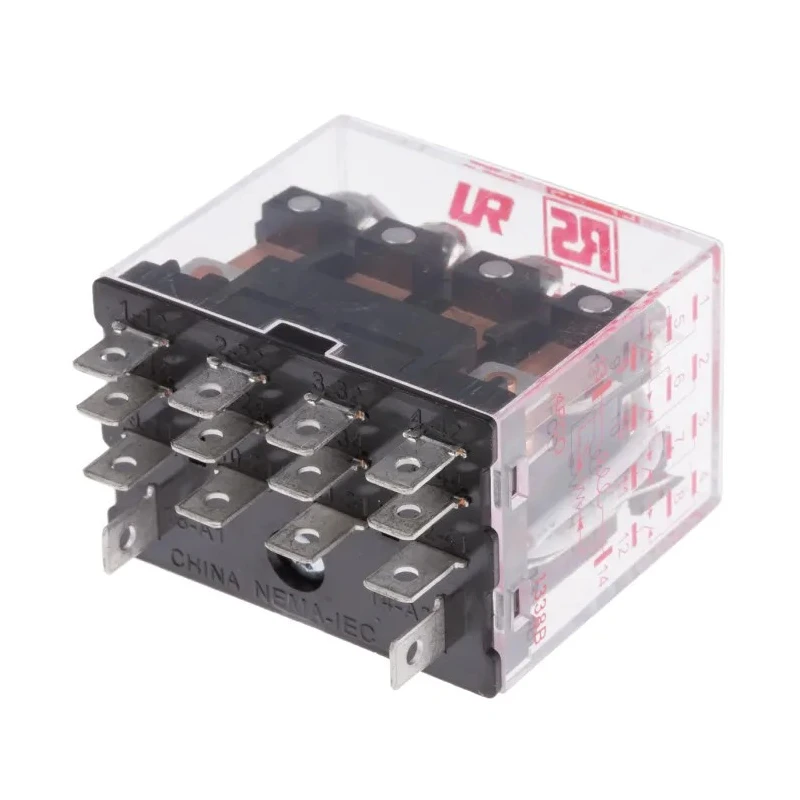

RS PRO Plug-in Power Relay 24V AC Coil, 12A Switching Current, 4PDT 613-3803
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 35mm |
| Length | 40.8mm |
| Model | 613-3803 |
| Width | 27.4mm |
| Mount Type | Plug-in |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -45°C |
| Switching Current | 12A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ max |
| Standards/Approvals | CE, EN, UL |
| Mechanical Life | 10 million operations |
| Coil Resistance | 84.5Ω |
| Coil Voltage | 24V ac |
| Switching DC Voltage | 28V dc |
| Switching AC Voltage | 240V ac |
| Coil Power | 2.5W |
| Electrical Life | 100000 operations |
Key Features
- Operates at coil voltage of 24V AC and coil power of 2.5W.
- Features 4PDT (four-pole double throw) contact configuration for versatile applications.
- Supports switching currents up to 12A with silver alloy contact material.
- Suitable for operating temperatures ranging from -45°C to 55°C.
- Designed with plug-in mount type and PCB pin terminals for easy installation.
- Compact dimensions of 40.8mm length, 27.4mm width, and 35mm height.
- Offers long mechanical life of 10 million operations and electrical life of 100,000 operations.
- Complies with CE, EN, and UL standards ensuring safety and quality.
Product Description
RS PRO 613-3803 is a high-quality Plug-in Power Relay featuring a 24V AC coil voltage and a 12A switching current capacity, designed primarily for industrial and automation control systems requiring reliable switching performance.
This relay is equipped with a 4PDT (four-pole double throw) contact configuration, allowing for multiple switching operations simultaneously. The contact material is made from silver alloy, ensuring low contact resistance of a maximum 50mΩ for efficient conductivity and durability.
The device is engineered to operate within a wide temperature range of -45°C to 55°C, making it suitable for harsh industrial environments. The plug-in mount type combined with PCB pin terminals facilitates straightforward installation and replacement in control panels or electronic assemblies.
With a coil resistance of 84.5Ω and coil power consumption at 2.5W, this relay offers efficient power usage. Its compact dimensions of 40.8mm length, 27.4mm width, and 35mm height allow integration in space-constrained applications.
It boasts a mechanical life expectancy of up to 10 million operations and an electrical life of 100,000 switching cycles, making it a robust choice for demanding industrial processes. Compliance with CE, EN, and UL standards verifies its adherence to strict quality and safety norms.
Operates at coil voltage of 24V AC and coil power of 2.5W. Features 4PDT contact configuration for versatile control applications. Supports switching currents up to 12A with silver alloy contacts. Wide operational temperature range from -45°C to 55°C.
Plug-in mount with PCB pin terminals for efficient installation. Compact dimensions suitable for various panel installations. Extended mechanical and electrical lifecycle for durable operation. Certified to CE, EN, and UL standards ensuring compliance and safety.
This RS PRO plug-in power relay is ideal for industrial automation, electrical control panels, manufacturing equipment, and other applications requiring reliable and durable switching solutions.
Explore more Power Relays on EnvMart to find suitable components for your projects and installations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates at a coil voltage of 24V AC.
It supports a maximum switching current of 12A.
This relay features a 4PDT (four-pole double throw) contact configuration.
The dimensions are 40.8mm in length, 27.4mm in width, and 35mm in height.
The coil power consumption is 2.5W.
It has a mechanical life expectancy of up to 10 million operations.
The electrical life is rated at 100,000 operations.
It operates within a temperature range of -45°C to 55°C.
It is designed with PCB pin terminals for easy installation.
It complies with CE, EN, and UL standards.
The contact material is made from silver alloy, ensuring low contact resistance.
This model features a plug-in mount type for efficient installation.
