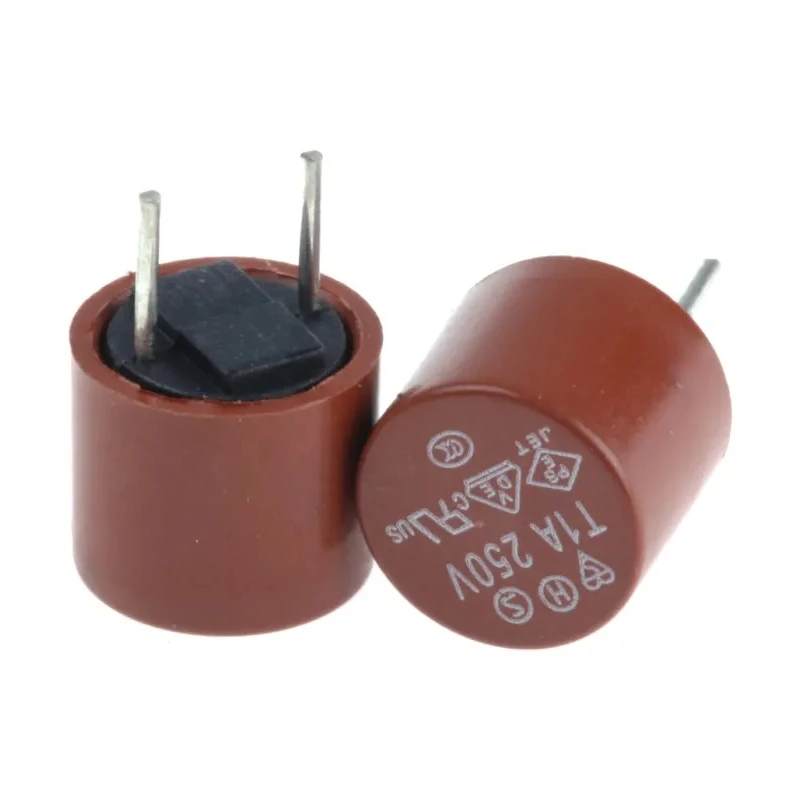

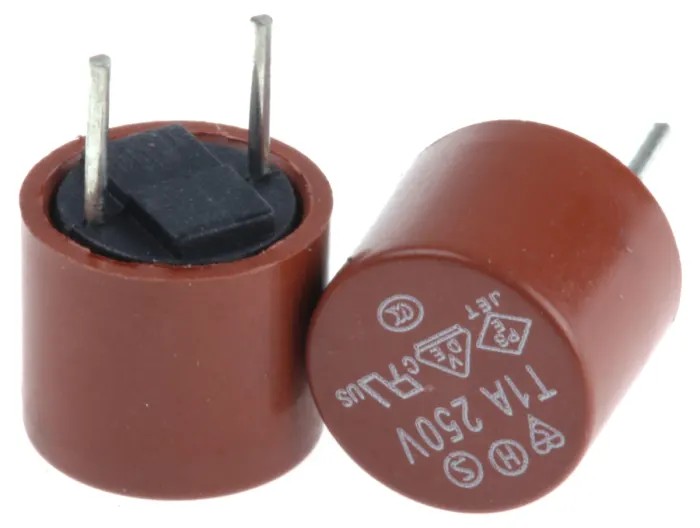

RS PRO Non-Resettable Fuse Radial 1A 250V AC Nylon Body TR5 Series 611-0686

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Non-Resettable Fuse Radial 1A 250V AC Nylon Body TR5 Series 611-0686

Name: RS PRO Non-Resettable Fuse Radial 1A 250V AC Nylon Body TR5 Series 611-0686
Brand: RS PRO
SKU: 198385
Price: 0.74 USD
Availability: InStock



Category Non Resettable Fuse Brand RS PRO Condition New

Specifications

Country of Origin	China
Voltage	250V ac
Diameter	8.5mm
Brand	RS PRO
Body Material	Nylon
Height	8mm
Length	7.2mm
Model	611-0686
Current Rating	1A
Series	RS PRO
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Lead Length	4.3mm
Breaking Capacity	35A
Standards/Approvals	RoHS
Lead Diameter	0.6mm
Lead Orientation	Radial

Key Features

This fuse features a high breaking capacity of 35A ensuring reliable circuit protection.
Compact dimensions with length 7.2 mm, diameter 8.5 mm, and height 8 mm for easy integration into electrical assemblies.
Operating temperature range from -40°C to 85°C for stable performance in varied environments.
Equipped with 0.6 mm diameter leads and 4.3 mm lead length suited for automatic insertion or direct soldering.
Compliance with RoHS standards ensures environmental safety and material compliance.
Constructed with thermoplastic polyamide body material for enhanced durability and insulation.
Part of the RS PRO TR5 series designed for series and system reliability.

Product Description

RS PRO 611-0686 Non-Resettable Fuse is engineered to provide effective overcurrent protection in electrical and automation applications. Featuring a radial lead orientation and rated for 1 ampere current at 250V AC voltage, this fuse is built into a robust nylon thermoplastic polyamide body ensuring durability and electrical insulation.

The compact physical dimensions of 7.2 mm length, 8.5 mm diameter, and 8 mm height allow easy mounting in various circuit configurations. It is designed for automatic insertion and can be directly soldered or plugged into fuse holders (compatible with fuseholder stock no. 110-7900).

With a high breaking capacity of 35A and an operating temperature range from -40°C minimum to 85°C maximum, it assures reliable operation under harsh conditions. The radial leads measure 0.6 mm in diameter and 4.3 mm length, facilitating integration in automated assembly processes.

Manufactured as part of the RS PRO TR5 series, this fuse complies with RoHS directives, emphasizing environmental and safety compliance required in industrial and commercial electrical circuits.

This fuse is suitable for use in industrial automation, electrical distribution, manufacturing equipment, and general-purpose circuit protection. This fuse features a high breaking capacity of 35A ensuring reliable circuit protection.

Compact dimensions with length 7.2 mm, diameter 8.5 mm, and height 8 mm for easy integration into electrical assemblies. Operating temperature range from -40°C to 85°C for stable performance in varied environments. Equipped with 0.6 mm diameter leads and 4.3 mm lead length suited for automatic insertion or direct soldering.

Compliance with RoHS standards ensures environmental safety and material compliance. Constructed with thermoplastic polyamide body material for enhanced durability and insulation. Part of the RS PRO TR5 series designed for series and system reliability.

Explore more high-quality non-resettable fuses and related electrical components in the Circuit Breakers & Fuse category at EnvMart to find the ideal solution for your application needs.
