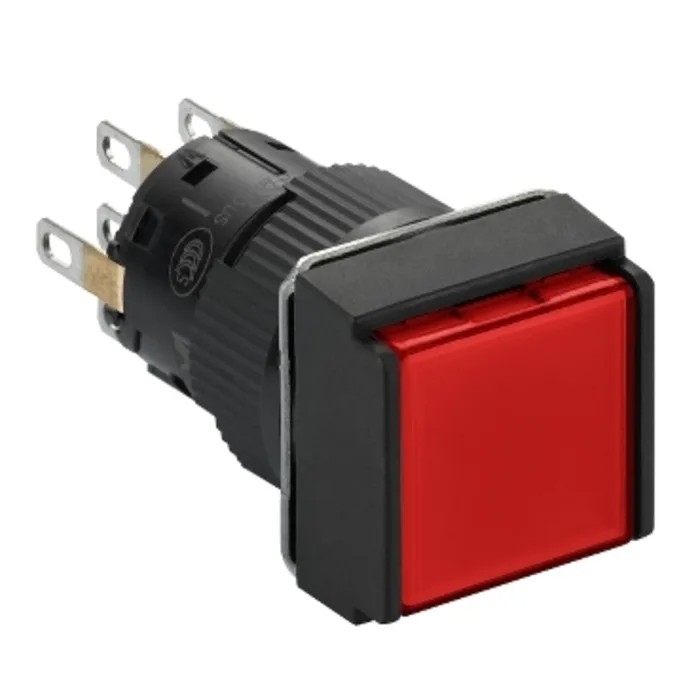

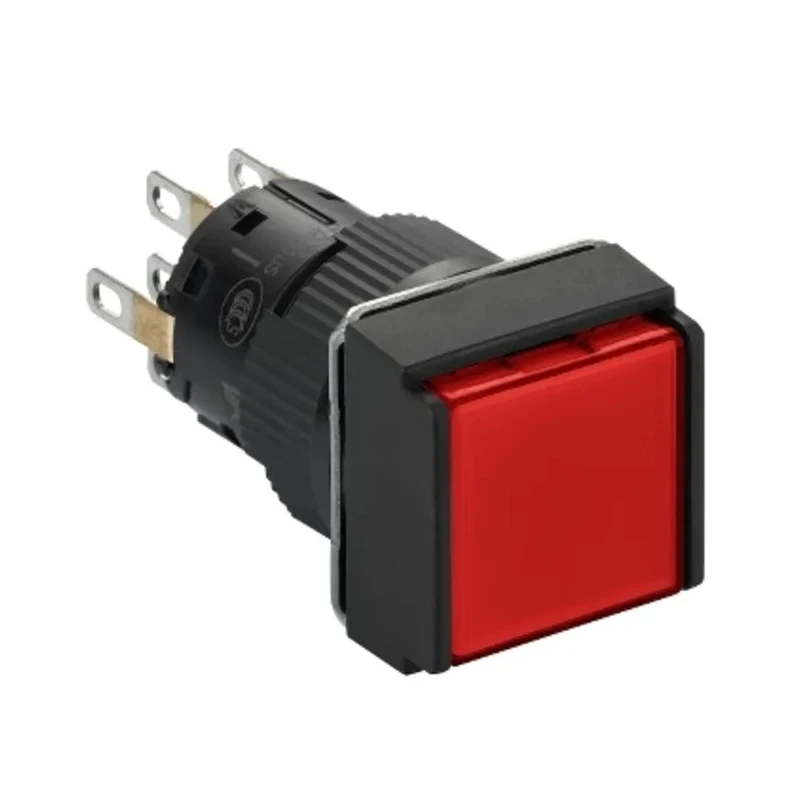

Schneider Electric Illuminated Push Button Switch DPDT Spring Return 16 mm Cutout Red LED Harmony XB6 XB6ECW4B2P

Schneider Electric XB6ECW4B2P Illuminated Push Button Switch is engineered for industrial and electrical automation applications requiring reliable control inputs. Featuring a spring return actuator and a square flush mount head, this switch is designed for panel installation with a 16 mm cutout to suit most control panels.

Equipped with a double pole double throw (DPDT) contact configuration (2NO + 2NC), it provides versatile switching capabilities. The integral 24 Vdc red LED offers bright, visible indication to operators, enhancing operational safety and status awareness.

The device supports a contact current rating of 1A and contact voltages of up to 110 V DC and 250 V AC, making it suitable for a wide range of control circuits. The IP65 rating certifies the switch as resistant to dust ingress and water jets, ensuring long-term durability in harsh environments.

It features quick connect and solder tag terminal options for flexible and secure wiring connections. Designed to operate efficiently in temperature ranges from -25°C to 55°C, this switch meets diverse industrial requirements.

Manufactured in China as part of the Harmony XB6 series, this push button switch is often utilized in industrial automation, electrical control panels, HVAC systems, manufacturing processes, and other commercial applications where visual indication and reliable switching are essential.

This push button switch has a 16 mm panel cutout size suitable for standard installations. The actuator is a square flush mount head designed for easy operation and durability. The device provides 2NO + 2NC contacts ensuring double pole double throw switching functionality.

It features a 24 Vdc integral red LED for clear indication and illumination. The switch is rated for contact DC voltage up to 110 V and AC voltage up to 250 V. IP65 protection rating ensures dust-tight and water-resistant operation.

Terminal types include quick connect and solder tag for flexible wiring options. Operating temperature range is from -25°C to 55°C, suitable for various environments. The product is manufactured in China and belongs to the Harmony XB6 series.
