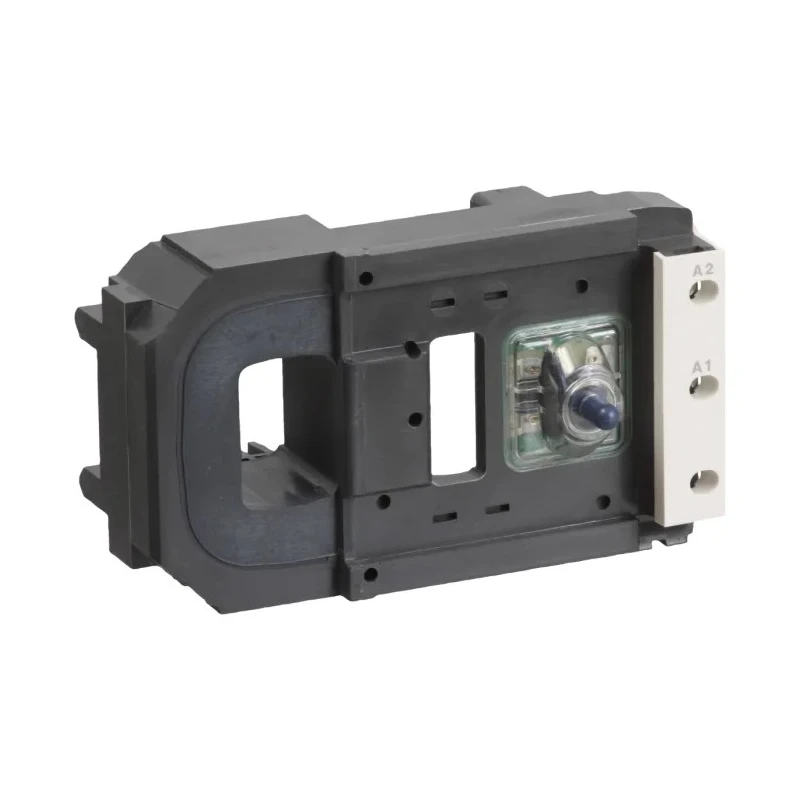

Schneider Electric TeSyS F Contactor Coil 220/230V 40-400Hz for LC1 Series LX1FJ220

Schneider Electric LX1FJ220 is a TeSyS F series contactor coil designed for use with the LC1 Series 3-pole and 4-pole contactors, specifically LC1F400 models. It operates at an AC voltage range of 220 to 230 volts with a frequency range from 40 to 400 Hz, classified under voltage code M7/P7, providing excellent versatility in industrial automation settings.

This coil features a low sealed consumption design to improve energy efficiency during operation. It is engineered to withstand ambient temperature conditions up to 55°C, maintaining reliable performance across various environments.

With the ability to operate continuously at rates up to 2400 cycles per hour, the LX1FJ220 coil is well-suited for applications requiring frequent switching cycles, such as manufacturing automation and process control.

The product is Green Premium compliant, meeting RoHS and REACh requirements, emphasizing environmentally responsible manufacturing and disposal. In addition, it is designed for easy disassembly, further supporting sustainability efforts in industrial equipment management.

Ideal for a wide range of industrial, electrical, and automation use cases, this Contactor Coil enhances the performance and durability of control gear assemblies. Operates within voltage limits of 0.85-1.1 Uc ensuring stable performance.

Compatible with TeSys F 3-pole and 4-pole contactors LC1F400 for versatile use. Low sealed consumption coil design ensures energy efficiency. Supports high operating rates up to 2400 cycles per hour for demanding environments.

Rated to perform reliably at ambient temperatures up to 55°C. Compliant with Green Premium standards including RoHS and REACh regulations. Designed for disassembly to facilitate recycling and sustainability. Explore our extensive range of Schneider Electric automation and control products at EnvMart for reliable industrial solutions.
