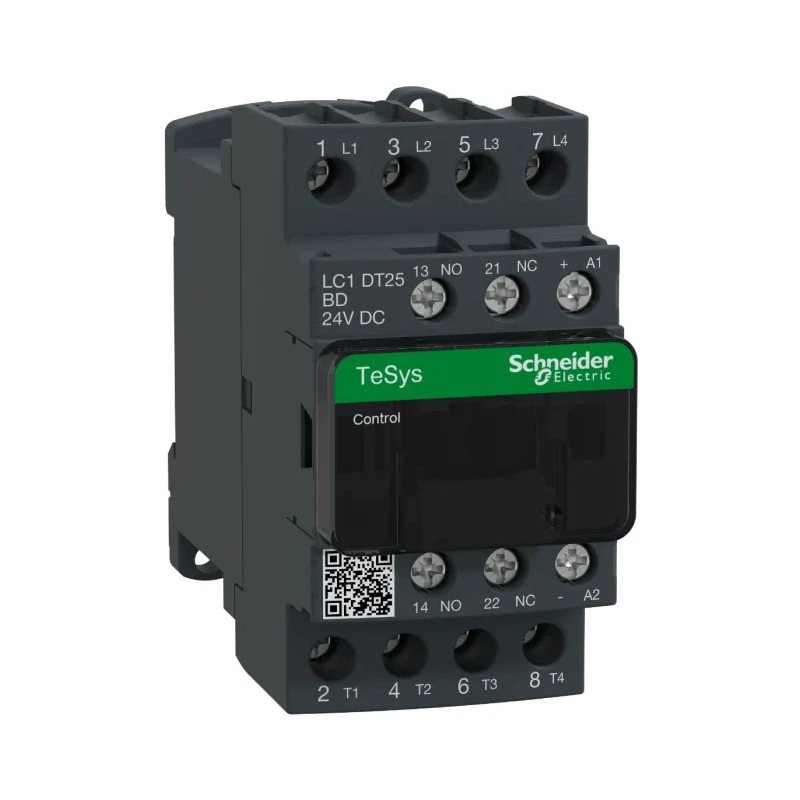

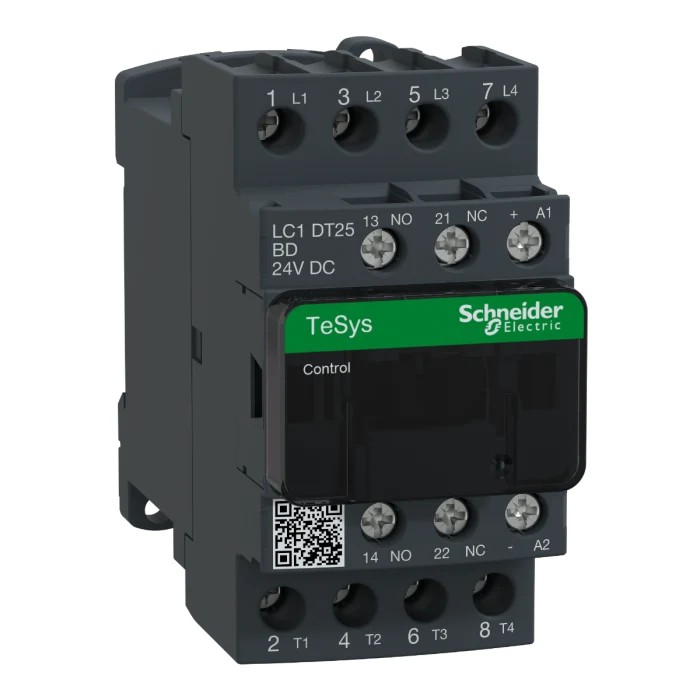

Schneider Electric LC1DT25BD LC1D Contactor, 24V DC Coil, 4-Pole, 25A, 1.56W Power Rating, 690V AC Contact Voltage

Schneider Electric LC1DT25BD is a high-performance LC1D series contactor engineered for reliable motor control and resistive load switching. Featuring a 24V DC coil voltage and a 4-pole configuration, it provides operational current capacity of 25 Amperes and supports contact voltages up to 690 Volts AC. This contactor is highly suitable for demanding industrial and commercial electrical applications requiring precise control and durability.

Its compact size with dimensions 85mm (length) by 45mm (width) by 90mm (depth) allows easy installation on DIN rails, making it ideal for control panels with space constraints. To ensure safety during handling and maintenance, it carries an IP20 touch-proof rating.

The contactor includes 4 normally open main contacts and 2 auxiliary contacts configured as 1 NO/1 NC, facilitating extended control circuit functions. The screw terminal design enables secure and straightforward wiring connections.

With a power consumption of 1.56 Watts at 24V DC coil voltage, this contactor operates efficiently to support various applications such as industrial cooling systems, commercial lighting controls, manufacturing equipment, and other resistive load operations. Its operational temperature range from -5°C up to 60°C ensures reliable performance in diverse environmental conditions.

Compliant with multiple international standards including CCC, CSA, EAC, IEC, RoHS, and UL certifications, this Schneider Electric contactor delivers trusted quality and safety. Additionally, its design under the Better World initiative focuses on disassembly for sustainability and ease of recycling.

For enhanced adaptability, auxiliary contact units such as LADN22, LADN11, or LADN20 can be mounted on the device to increase functionality as required. This product is manufactured in Indonesia and supports robust industrial automation demands, helping facilities maintain reliable electrical control and reduce downtime.

Operates with a 24V DC coil voltage for industrial automation applications. Features 4 normally open contacts (4 NO) and supports 1 NO/1 NC auxiliary contact configuration. Designed for motor control and resistive load functions with DIN Rail mount type.

Supports contact voltage up to 690V AC and power rating of 1.56W at 24V DC coil voltage. Robust construction with IP20 touch-proof rating and broad operating temperature range from -5°C to 60°C. Screw terminal type for secure and easy installation.

Complies with multiple certifications including CCC, CSA, EAC, IEC, RoHS, and UL standards. Compact dimensions: Length 85mm, Width 45mm, Depth 90mm to fit constrained control panels. Auxiliary contacts configurable with up to 2 contacts supporting extended functionality.

Ideal for industrial cooling systems, commercial lighting, manufacturing facilities, and resistive load applications. Designed for disassembly supporting sustainability and product lifecycle management. Explore EnvMart's comprehensive selection of Schneider Electric automation and control gear for your industrial and commercial electrical needs.
