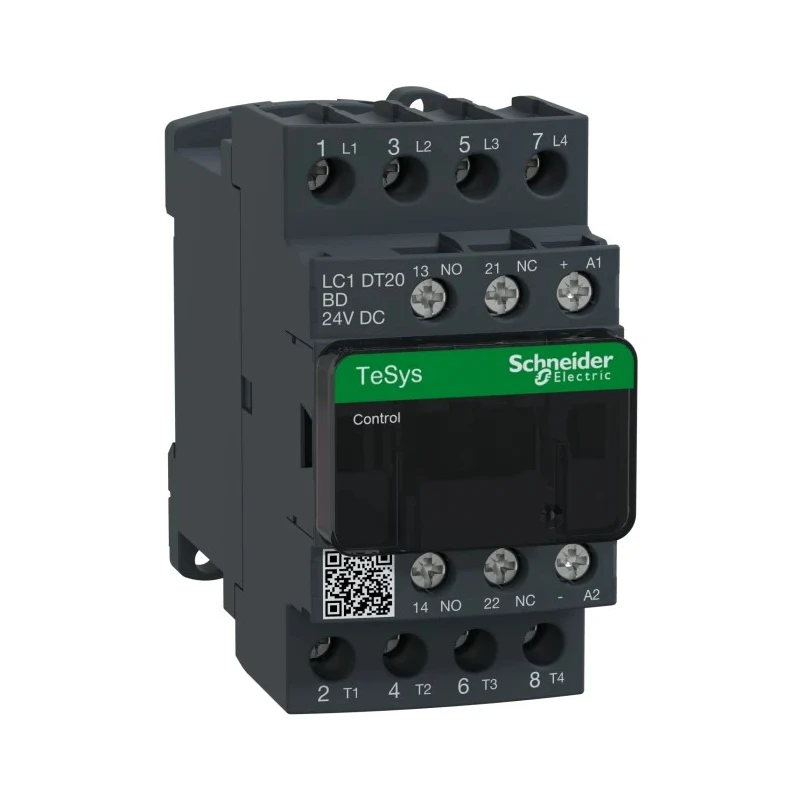

Schneider Electric LC1D Contactor, 24V DC Coil, 4-Pole, 20 A, 1.56 W Power Rating, 4 NO, 690V AC LC1DT20BD
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 85mm |
| Model | LC1DT20BD |
| Depth | 90mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 1.56W |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | CCC, CSA, EAC, RoHS, IEC, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 4 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 20A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 20A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with integrated auxiliary contacts for remote control monitoring.
- Compact DIN rail mount design for easy installation.
- Durable screw terminal connections with IP20 finger-safe protection.
- Supports a wide operating temperature range from -5°C to 60°C.
- Mechanical lifespan of up to 30 million operations ensures long-term reliability.
- Designed for resistive load applications with 4 normally open contacts.
- Complies with CCC, CSA, EAC, RoHS, IEC, and UL standards.
- Compact dimensions of 45mm width, 85mm length, and 90mm depth save panel space.
Product Description
Schneider Electric LC1DT20BD is a highly reliable 4-pole contactor designed for motor control and resistive load applications. Featuring a 24V DC coil and a 20A contact current rating, it delivers efficient switching performance suitable for various industrial and commercial control systems.
This contactor is conveniently mountable on DIN rails, providing quick and tool-free installation. Its compact dimensions of 45mm (W) x 85mm (H) x 90mm (D) enable dense panel layouts without compromising accessibility or safety.
The integrated auxiliary contacts (1 NO / 1 NC) allow for enhanced control and remote monitoring, while the robust screw terminal connections with IP20 finger-safe design safeguard against accidental contact.
Operable within temperatures spanning from -5°C up to 60°C, this device ensures dependable performance across diverse environmental conditions. Designed to endure up to 30 million mechanical operations, LC1DT20BD guarantees extended service life and consistent switching.
Certified to international standards including CCC, CSA, EAC, RoHS, IEC, and UL, this contactor meets rigorous safety and quality requirements for global deployment. Applications are broad and include HVAC systems, electrical generators, and food production equipment, where reliable and efficient switching is essential.
Integrated auxiliary contacts provide remote control signal feedback. Protective cover guards front plate against mechanical impacts. Compact form factor for tight DIN rail installations. Mechanical lifecycle rated at 30 million operations.
IP20 finger-safe screw terminals with international markings. Bidirectional peak-limiting diode suppressor protects coil. Suitable for motor starters and control systems integration. Choose Schneider Electric LC1DT20BD for durable, efficient contactor solutions that support automation and control needs in demanding industrial environments.
