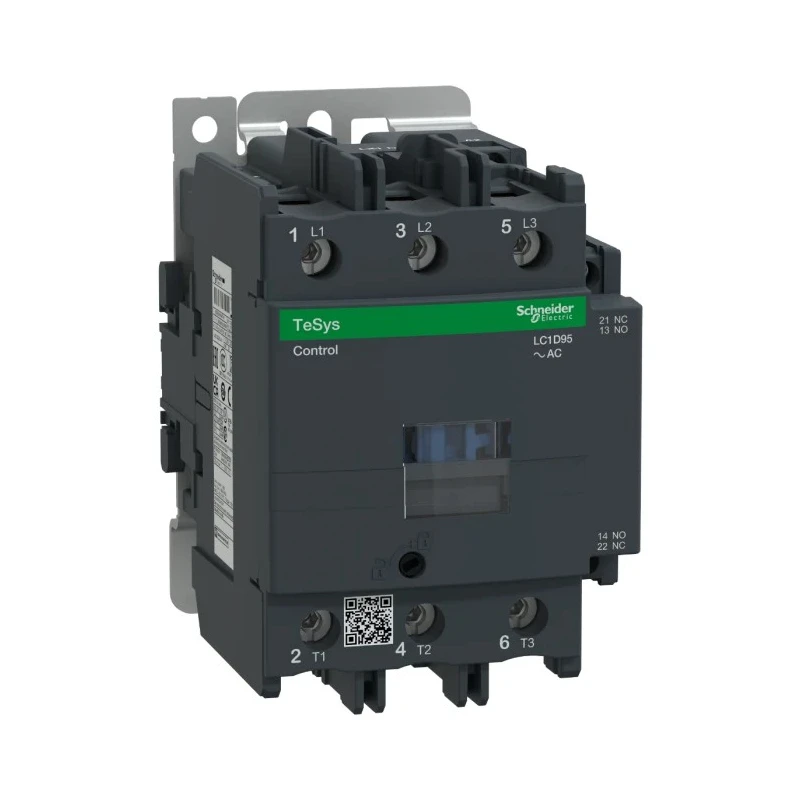

Schneider Electric LC1D TeSys D Contactor, 48V AC Coil, 3-Pole, 95A, 45 kW, 1kV AC, 3 NO Auxiliary Contacts LC1D95E7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 127mm |
| Model | LC1D95E7 |
| Depth | 125mm |
| Width | 85mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 45kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, EN 60947-5-1, IEC, RoHS, UL |
| Contact Voltage | 1kV ac |
| Coil Voltage | 48V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 95A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 95A |
| Control Circuit Voltage Uc | 48V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
| Ue Rated Voltage Power circuit | 1000 V AC 25...400 Hz |
Key Features
- Designed for motor control and resistive load functions.
- Equipped with 3 normally open contacts and 2 auxiliary contacts (1 NO/1 NC).
- Coil voltage of 48V AC suitable for 50/60 Hz operation.
- Compact DIN rail mounting design with screw terminals for power and control connections.
- Operates reliably between -5°C to 60°C ambient temperature.
- Rated for operational voltage up to 1kV AC and power frequency 25 to 400 Hz.
- Meets multiple international standards including IEC, UL, CSA, CCC, EAC, and RoHS compliance.
- Supports operational current of 95A and power rating of 45 kW at 48V AC coil voltage.
Product Description
Schneider Electric LC1D95E7 is a high-performance TeSys D contactor designed for motor control and resistive load applications. It features a 48V AC coil suitable for 50/60 Hz operation and is equipped with three poles rated for 95A current and a power rating of 45 kW.
The contactor includes three normally open (3 NO) contacts and two auxiliary contacts configured as 1 normally open and 1 normally closed (1 NO/1 NC), providing flexibility for control circuitry. It is designed for DIN rail mounting with reliable screw terminals for both power and control circuit connections.
Constructed for industrial use, this model supports operational voltages up to 1 kV AC within a frequency range of 25 to 400 Hz. It operates efficiently within ambient temperatures from -5°C to 60°C, making it suitable for diverse environments.
The LC1D95E7 contactor complies with international standards including IEC, UL, CSA, CCC, EAC, and RoHS, ensuring high reliability and environmentally friendly design. It is certified for applications involving motor starters, lifting equipment, conveyors, pumps, mixers, and HVAC systems.
Its compact form factor measures approximately 85 mm in width, 127 mm in length, and 125 mm in depth, weighing about 1.61 kg (3.55 lbs). The contactor supports use cases in industrial automation, manufacturing, water treatment, and electrical distribution systems.
Designed for motor control and resistive load functions. Equipped with 3 normally open contacts and 2 auxiliary contacts (1 NO/1 NC). Coil voltage of 48V AC suitable for 50/60 Hz operation. Compact DIN rail mounting design with screw terminals for power and control connections.
Operates reliably between -5°C to 60°C ambient temperature. Rated for operational voltage up to 1kV AC and power frequency 25 to 400 Hz. Meets multiple international standards including IEC, UL, CSA, CCC, EAC, and RoHS compliance.
Supports operational current of 95A and power rating of 45 kW at 48V AC coil voltage. Durable construction for industrial and automation environments. Dimensions approx. 85mm width, 127mm length, and 125mm depth.
This Schneider Electric contactor is an ideal choice for reliable, energy-efficient motor switching and control in various industrial and commercial electrical installations. Explore additional Schneider Electric automation and control gear products at EnvMart for integrated system solutions.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operational current rating of this model is 95A.
This contactor operates with a coil voltage of 48V AC, suitable for 50/60 Hz operation.
The dimensions of this unit are approximately 85 mm in width, 127 mm in length, and 125 mm in depth.
It is equipped with two auxiliary contacts, configured as one normally open (1 NO) and one normally closed (1 NC).
The power rating of this contactor is 45 kW at a coil voltage of 48V AC.
It operates reliably within an ambient temperature range of -5°C to 60°C.
This model meets multiple international standards including IEC, UL, CSA, CCC, EAC, and RoHS compliance.
It is designed for DIN rail mounting with screw terminals for both power and control connections.
The maximum contact voltage for this contactor is 1 kV AC.
This contactor is suitable for applications involving motor control, resistive loads, lifting equipment, conveyors, pumps, mixers, and HVAC systems.
It features three normally open (3 NO) contacts.
It supports a power frequency range of 25 to 400 Hz.
