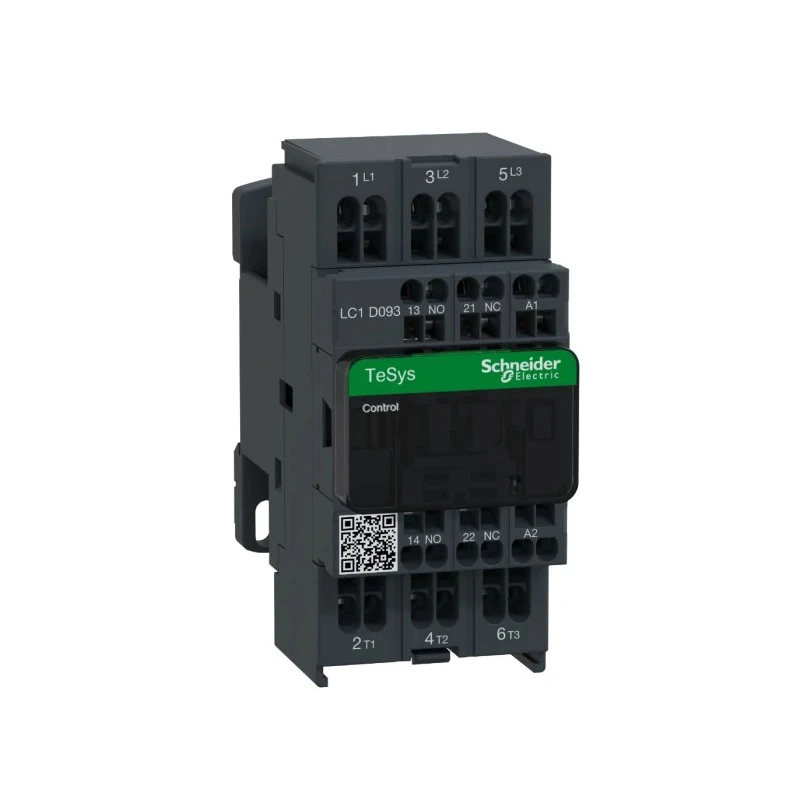

Schneider Electric LC1D Contactor 24V AC Coil 3-Pole 9 A 4 kW 3 NO 690V AC LC1D093B7

Schneider Electric LC1D093B7 Contactor is engineered with a 24V AC coil voltage, 3 poles, and an operational current of 9 A, rated at 4 kW power, tailored for motor control and resistive load switching applications. It is designed to provide high reliability and long mechanical and electrical lifespan. The contactor supports control circuits operating at 24V AC and switch contact voltages up to 690V AC.

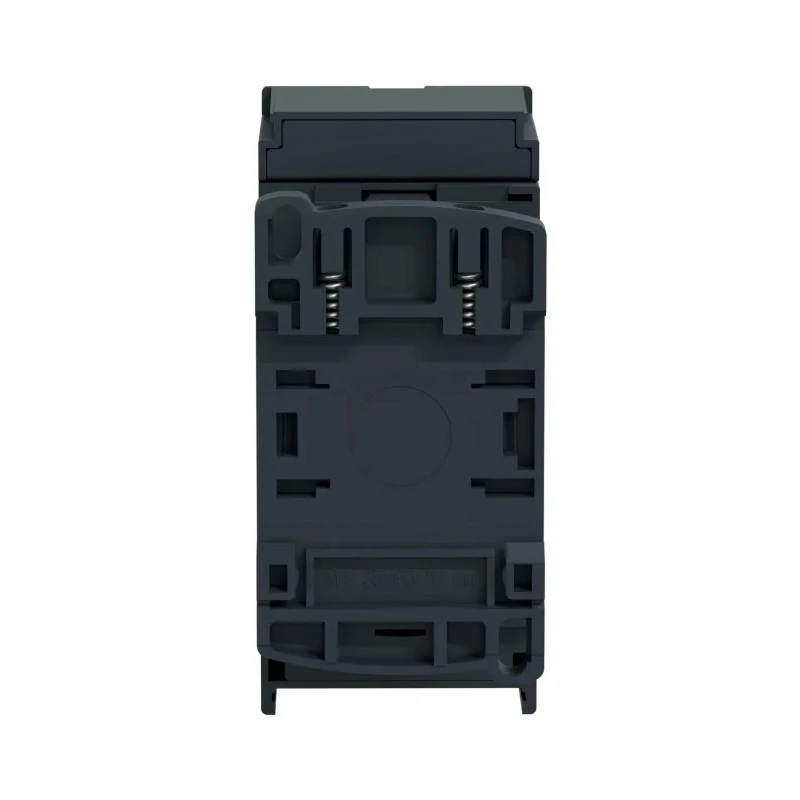

Featuring 3 normally open (NO) contacts and an auxiliary contact block with 1 NO and 1 NC contacts, this device expands switching capabilities. The cage clamp terminal design coupled with IP20 finger-safe screw connections with international and North American markings ensures safe and efficient wiring. The unit is mountable on DIN rails or via panel screws for versatile setup.

Its compact dimensions (45mm width, 99mm length, and 84mm depth) enable integration into diverse control panels within industrial automation setups. Operating temperature ranges from -5°C to 60°C, allowing dependable function in varying environments. The contactor complies with international standards including CCC, CSA, EAC, EN 60947-5-1, IEC, RoHS, and UL ensuring quality and safety.

The LC1D series supports AC-1 utilization for resistive loads such as heating and distribution, and AC-3 utilization, ideal for squirrel cage motors and demanding motor applications like lifts, escalators, conveyors, compressors, pumps, mixers, and air conditioning units. It uses linear translation movement providing double break pole configuration for effective contact breaking.

Designed for disassembly, the product aligns with sustainability goals, allowing ease of recycling. Accessories include auxiliary contact blocks, dust-tight mounting options, time delay blocks, surge suppressors, and interface modules, enhancing functionality across application demands.

Equipped with 3 normally open contacts. Power rating of 4 kW at 690V AC. Mount type DIN Rail with cage clamp terminals. Ambient operating temperature from -5°C to 60°C. Auxiliary contact configuration 1 NO/1 NC with 2 total auxiliary contacts.

Compact dimensions 99mm length, 45mm width, 84mm depth. Compliant with international standards including IEC and RoHS. Suitable for motor control, HVAC, pumps, and industrial automation. Designed for easy installation and high reliability.
