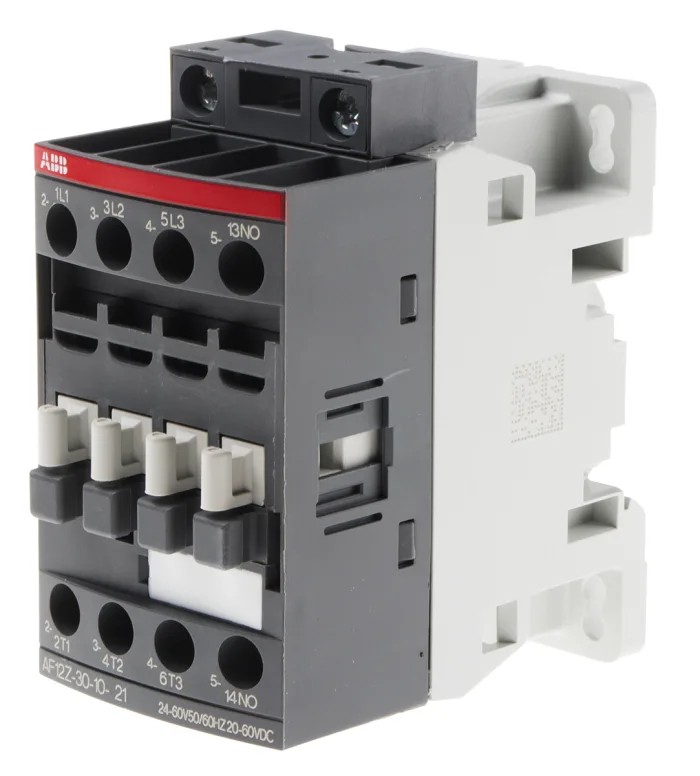

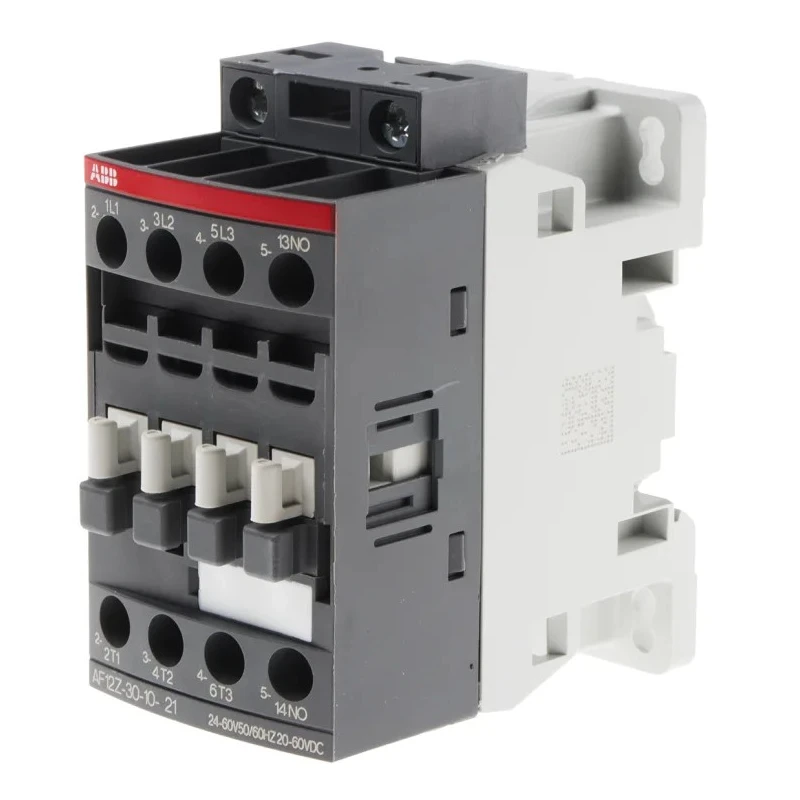

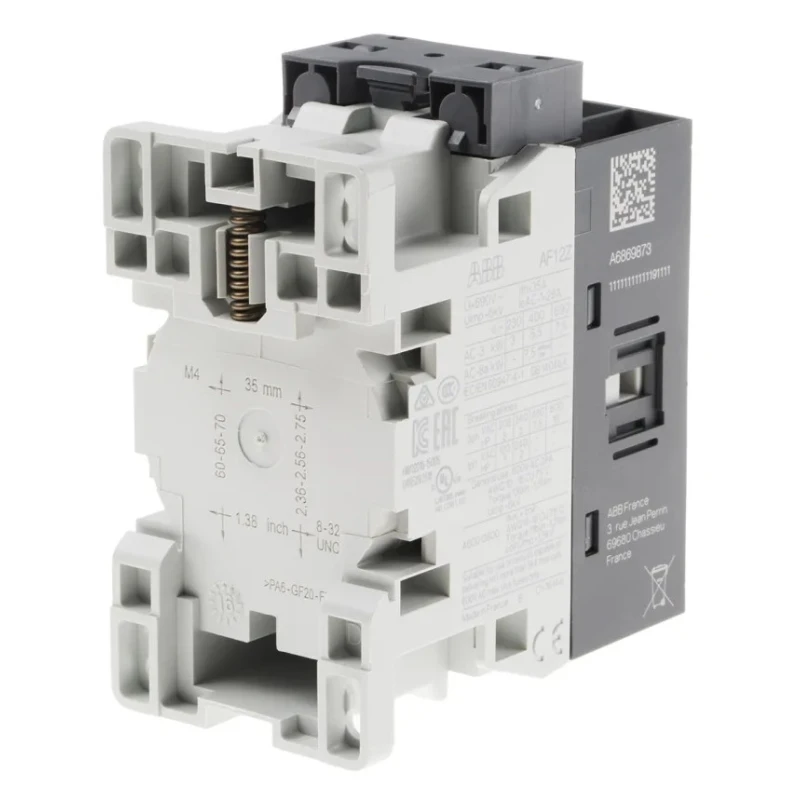

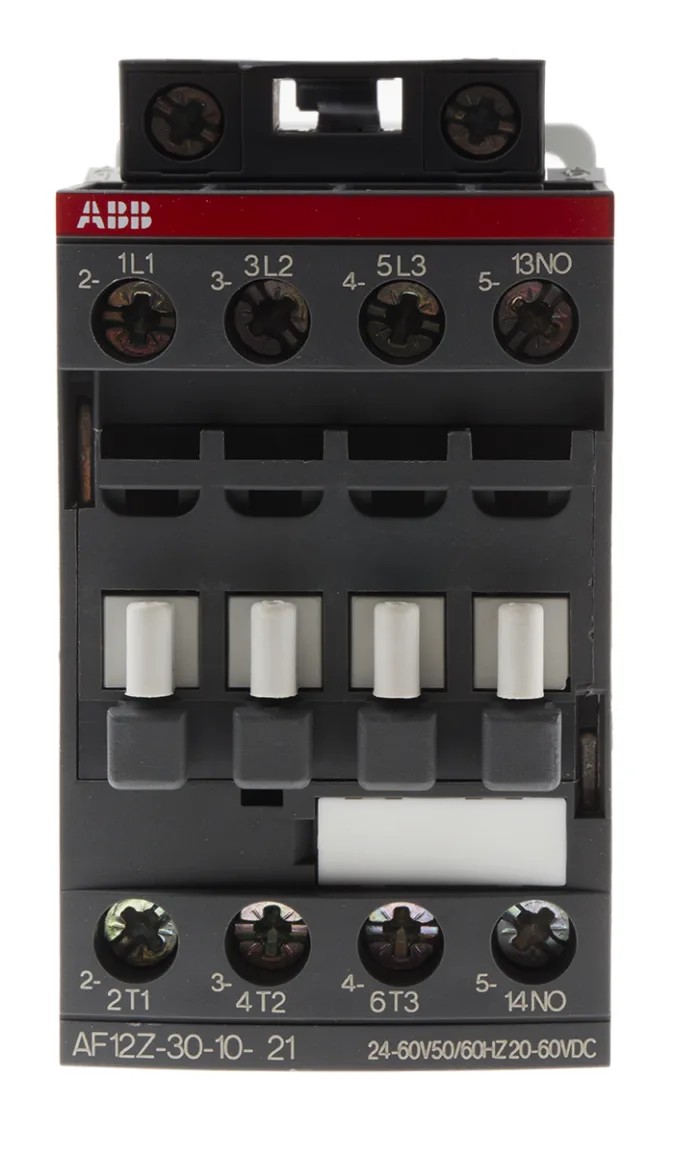

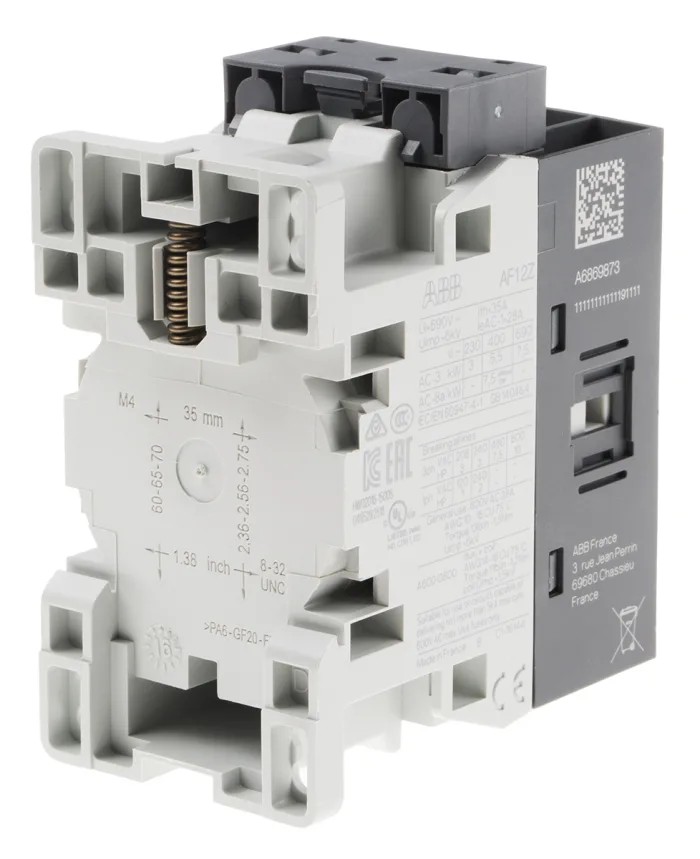

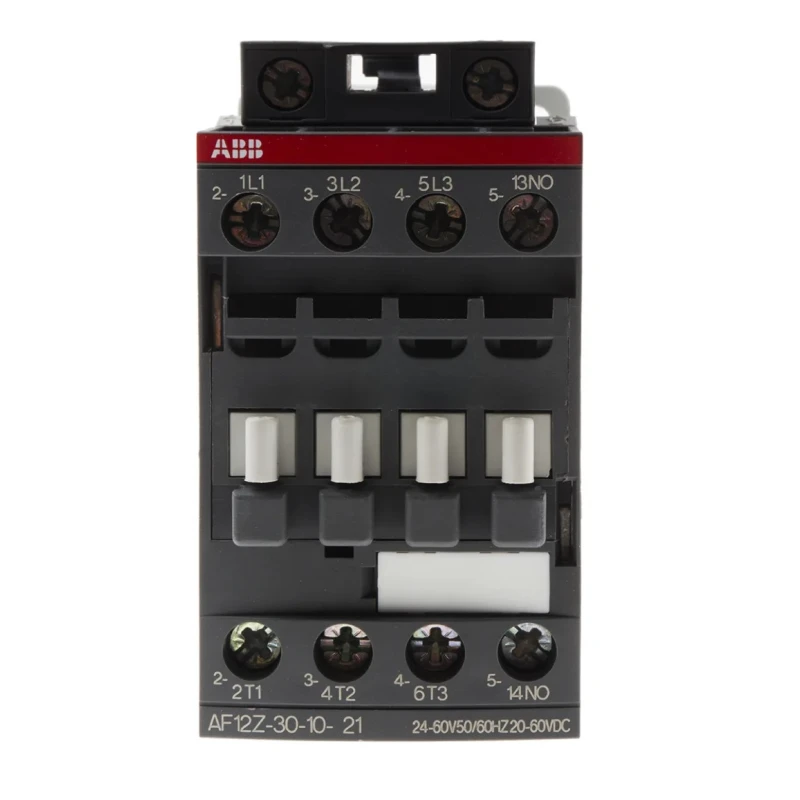

ABB AF12 Contactor, 60V DC Coil, 3-Pole, 9 A Contact Current, 5.5 kW Power Rating, 690V AC, Motor Control AF12



Category Contactors Brand ABB Condition New

Specifications

Country of Origin	France
Brand	ABB
Function	Motor Control
Length	80mm
Model	AF12
Depth	77mm
Width	45mm
Mount Type	DIN Rail
Series	AF12
Power Rating	5.5kW
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Terminal type	Screw
Number of Poles	3
Standards/Approvals	IEC 60947-4-1
Contact Voltage	690V ac
Coil Voltage	60V dc
Normal State Configuration	3 NO
Contact Current	9A
Number of Auxiliary Contacts	1
Auxiliary Contact Configuration	1 NO
Operational Current Ie	28A
Control Circuit Voltage Uc	60V dc
Contactor Application	Motor Control
Pole and Throw Configuration	3

Key Features

Rated for 690V AC voltage suitable for industrial applications.
Features one auxiliary contact with 1 NO configuration for extended control functions.
Mounts easily on DIN Rail with screw terminals for secure connections.
Operates reliably in temperatures from -40°C to 70°C.
Complies with IEC 60947-4-1 standards ensuring quality and safety.
Compact dimensions of 80mm length, 45mm width, and 77mm depth.
Supports motor control functions efficiently in automation systems.
Manufactured in France assuring quality European standards.

Product Description

ABB AF12 Contactor with 60V DC coil voltage and a 3-pole design offers robust motor control for diverse electrical and automation environments. This contactor supports a contact current of 9 A and is capable of handling power ratings up to 5.5 kW, making it ideal for industrial and commercial motor applications.

The device is rated for contact voltages up to 690V AC and includes one built-in auxiliary contact configured as 1 NO, enhancing the functionality in complex power and automation control circuits. It features screw-type terminals for secure and reliable electrical connections and mounts on standard DIN rails, simplifying installation and maintenance.

With operational temperature settings ranging from -40°C to 70°C, the ABB AF12 contactor is suitable for various industrial environments, maintaining performance under demanding conditions. Compliance with IEC 60947-4-1 standards ensures it meets international safety and quality norms.

Dimensionally compact with 80mm in length, 45mm in width, and 77mm in depth, this contactor is space-efficient for dense control panels. The robust design facilitates motor control operations in automation systems, manufacturing lines, and commercial electrical installations.

Rated for 690V AC voltage suitable for industrial applications. Features one auxiliary contact with 1 NO configuration for extended control functions. Mounts easily on DIN Rail with screw terminals for secure connections.

Operates reliably in temperatures from -40°C to 70°C. Complies with IEC 60947-4-1 standards ensuring quality and safety. Compact dimensions of 80mm length, 45mm width, and 77mm depth. Supports motor control functions efficiently in automation systems.

Manufactured in France assuring quality European standards.

This ABB AF12 contactor is a crucial component of automation and motor control systems used in industrial manufacturing, water treatment facilities, HVAC controls, and commercial power management. Its reliable operation supports effective power switching and enhances system longevity.

Explore the ABB catalog on EnvMart to find compatible Contactors and control gear components designed for diverse industrial applications and specifications.
