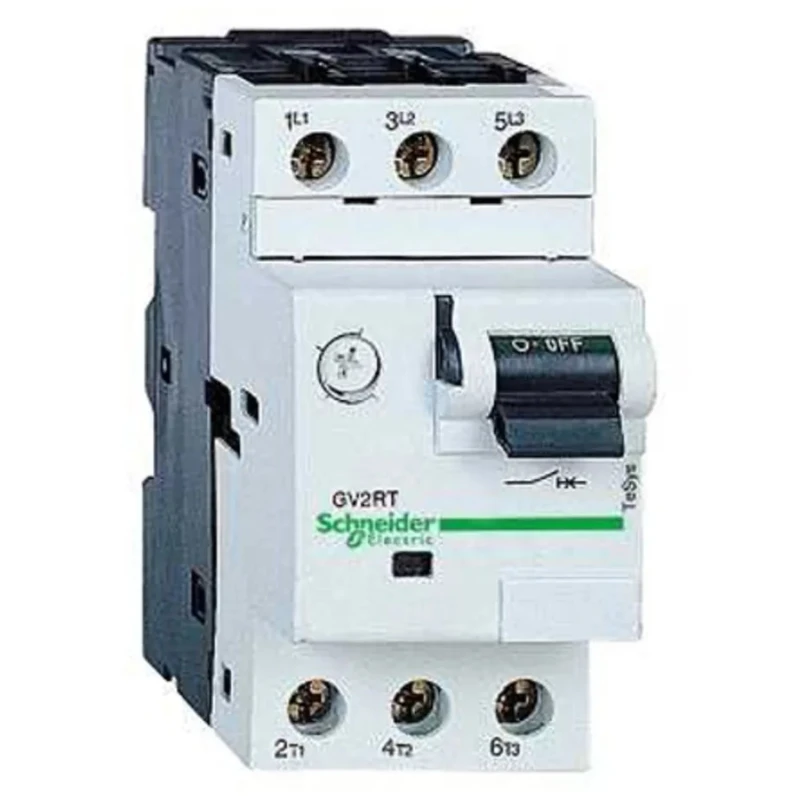

Schneider Electric Motor Protection Circuit Breaker 4A-6.3A, 3 Poles, Thermal Magnetic, 690V, IP20, TeSyS GV GV2RT10

Free Delivery in India | Lowest Global Shipping Charges

Schneider Electric Motor Protection Circuit Breaker 4A-6.3A, 3 Poles, Thermal Magnetic, 690V, IP20, TeSyS GV GV2RT10

Name: Schneider Electric Motor Protection Circuit Breaker 4A-6.3A, 3 Poles, Thermal Magnetic, 690V, IP20, TeSyS GV GV2RT10
Brand: Schneider Electric
SKU: 197816
Price: 120.4 USD
Availability: InStock



Category Motor Protection Circuit Breaker Brand Schneider Electric Condition New

Specifications

Country of Origin	France
Brand	Schneider Electric
Model	GV2RT10
IP Rating	IP20
Overall Length	89mm
Current Rating	4, 6.3A
Series	TeSyS GV
Overall Width	44.5mm
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-20°C
Sensing type	Thermal Magnetic
Supply Voltage	690V
Number of Poles	3
Overall Depth	78.5mm
Better World Claim	Designed for Disassembly
Motor Protection Component	Circuit Breaker
Motor Protection System	Motor Protection Circuit Breaker

Key Features

Equipped with thermal magnetic trip for enhanced motor protection.
Designed for 3-pole operation suitable for three-phase motor applications.
Compact dimensions of 89mm length, 44.5mm width, and 78.5mm depth.
IP20 rated enclosure ensuring protection against solid objects and limited ingress of dust.
Operates reliably between -20°C to 60°C ambient temperatures.
High breaking capacity of 100kA at 400V for exceptional fault interruption.
Screw clamp terminals guarantee secure electrical connections.
Toggle switch designed for start-stop control with 100,000 AC-3 operating cycles.

Product Description

Schneider Electric GV2RT10 is a high-performance Motor Protection Circuit Breaker from the TeSyS GV series designed for protecting three-phase motors and transformers. Featuring a thermal magnetic sensing type, it offers adjustable thermal protection ranging between 4 and 6.3 Amps, suitable for motors up to 2.2 kW at 400 V.

This circuit breaker comes with a 690 V supply voltage rating and an IP20 rated enclosure that provides protection against solid particle ingress. Its compact form factor with dimensions 89 mm (L) x 44.5 mm (W) x 78.5 mm (D) makes installation convenient in control panels with limited space. The breaker is engineered for tough industrial environments, operating reliably within an ambient temperature range of -20°C to 60°C.

The device boasts a high breaking capacity rated at 100 kA at 400 V AC, ensuring robust fault interruption during short circuits or overload conditions. Screw clamp terminals facilitate secure wiring, while the toggle rocker lever enables efficient start-stop control, guaranteed for over 100,000 AC-3 duty cycles. The unit supports 3-pole (3P) configuration to ensure comprehensive phase protection.

GV2RT10 meets stringent certifications including CSA, EAC, EN/IEC 60947-2, CCC, DNV GL, IECEE CB, RINA, EN/IEC 60947-4-1, UL, and conforms to REACH and RoHS environmental standards. It is also designed for disassembly under the Better World product label promoting sustainability.

This Motor Protection Circuit Breaker is ideal for use in industrial automation, manufacturing plants, HVAC motor control, and electrical distribution systems requiring reliable motor protection for machines and transformers.

Thermal magnetic sensing for dual protection against overload and short circuit. Suitable for motors with high starting current peak up to 2.2 kW @ 400 V. Compact size with precise dimensions for easy integration. Robust construction to withstand industrial operating conditions.

High breaking capacity ensures motor and system safety. Secure screw clamp terminals for reliable wiring connections. Long-life toggle switch designed for frequent operation. Multiple international certifications for global compliance.

Environmentally compliant and designed for easy recycling. 3-pole configuration supports three-phase motor applications. Browse the Electronics & Electricals category on EnvMart for additional automation and motor protection solutions from Schneider Electric and other leading brands.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has an adjustable current rating range of 4 to 6.3 Amps, suitable for protecting motors up to 2.2 kW at 400 V.

The supply voltage rating for this circuit breaker is 690V, making it suitable for various industrial applications.

It utilizes a thermal magnetic sensing type, providing dual protection against overload and short circuits.

The dimensions of this circuit breaker are 89 mm in length, 44.5 mm in width, and 78.5 mm in depth, allowing for convenient installation in control panels.

It operates reliably within an ambient temperature range of -20°C to 60°C, suitable for various industrial environments.

This model is designed for 3-pole operation, making it suitable for three-phase motor applications.

The GV2RT10 has a high breaking capacity rated at 100 kA at 400 V, ensuring effective fault interruption during overload conditions.

It is equipped with screw clamp terminals, providing secure electrical connections for reliable operation.

This model meets several international certifications including CSA, EAC, EN/IEC 60947-2, and UL, ensuring compliance with global standards.

The toggle switch is designed for over 100,000 AC-3 operating cycles, ensuring longevity for frequent use.

Yes, it conforms to REACH and RoHS environmental standards and is designed for disassembly under the Better World product label.

It is ideal for use in industrial automation, manufacturing plants, HVAC motor control, and electrical distribution systems requiring reliable motor protection.
