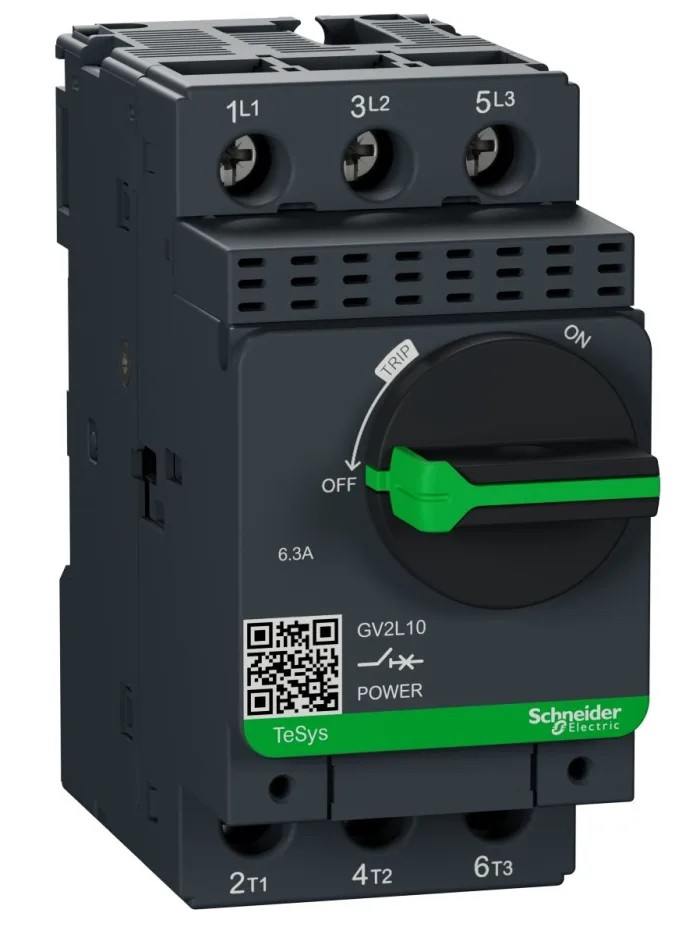

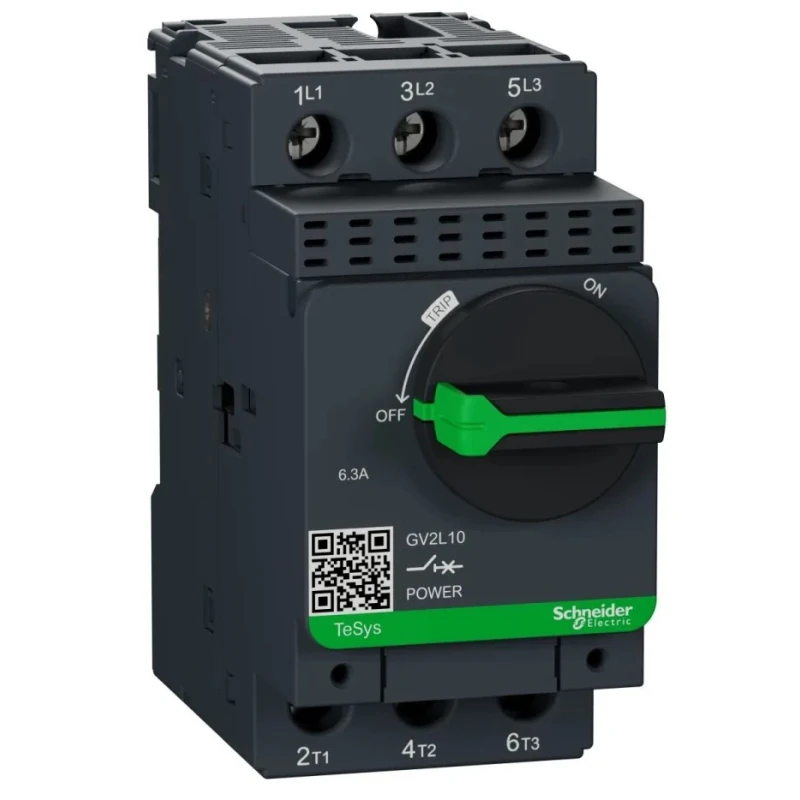

Schneider Electric Motor Protection Circuit Breaker, 4A 6A Current Rating, 690V AC, Thermal Magnetic Sensing, 3 GV2L10

Schneider Electric GV2L10 Motor Protection Circuit Breaker is a thermal magnetic sensing device designed for reliable safeguarding of 3-phase motors operating at currents of 4A and 6A and voltage up to 690V AC. It features a compact and lightweight form factor with overall dimensions of 89mm length, 44.5mm width, and 97mm depth, making it ideal for installations where space is limited. The device carries an IP20 rating ensuring finger-safe protection against dust and contact with live parts, enhancing operational safety in industrial environments.

The GV2L10 motor circuit breaker is part of the TeSyS GV series known for its robust, high-performance motor protection solutions. It provides magnetic protection with a tripping level set at 13 times the nominal current, which ensures prompt action against high fault currents. The unit is rated with a high breaking capacity (Icu) of 100kA at 400V, capable of handling significant fault surges without damage. The device includes screw clamp terminals with a tightening torque of 1.7 Nm for maintaining reliable mechanical and electrical contact with minimal vibration impact.

Operational temperature ranges from -20°C to 60°C, enabling reliable performance in harsh industrial and commercial settings. It incorporates a rotary handle control mechanism rated for 100,000 cycles in AC-3 utilization category to allow local manual start-stop motor operation. Additionally, the breaker can be locked using up to three padlocks to prevent unauthorized operation or tampering, enhancing safety and control.

For complete motor protection, the GV2L10 should be used in combination with the LRD010 thermal overload relay (sold separately), creating a robust and comprehensive motor protection system compliant with international standards including IEC, UL, CSA, and others. This circuit breaker is suitable for applications such as manufacturing plants, oil and gas industries, and commercial buildings.

Thermal magnetic sensing for dual protection. 3-pole configuration for 3-phase motors. High breaking capacity with 100kA Icu at 400V AC. IP20 finger-safe rating and rugged design. Rotary handle with 100,000 operation cycle rating.

Lockable to prevent unauthorized access. Compatible with LRD010 thermal overload relay.
