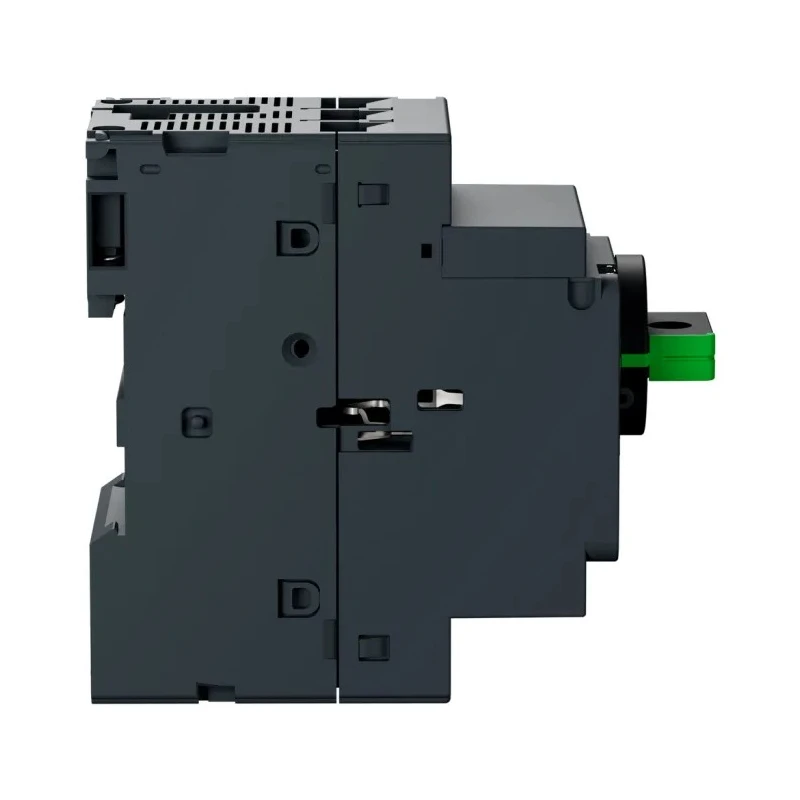

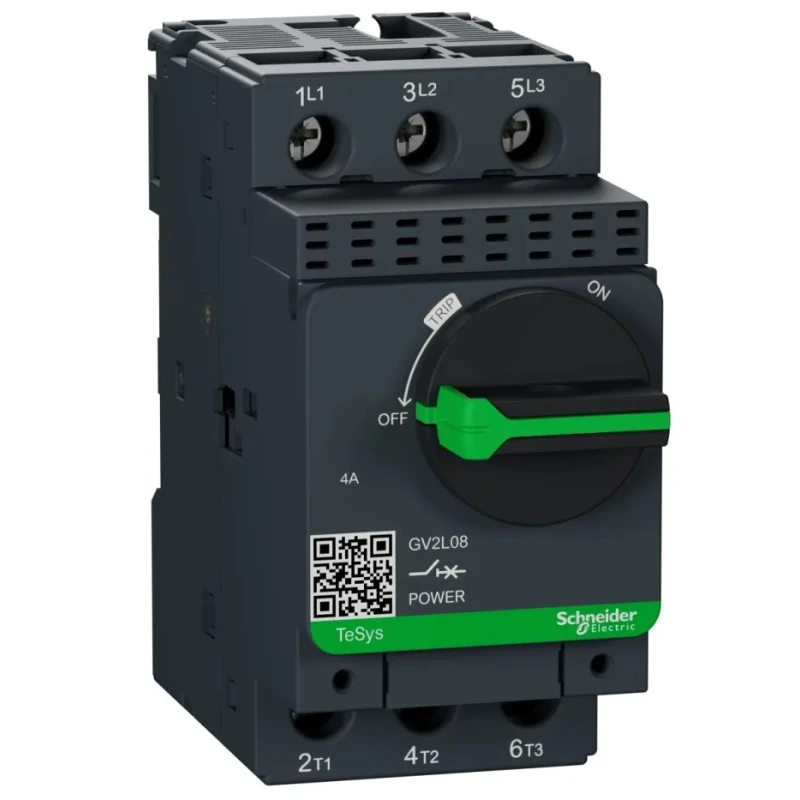

Schneider Electric TeSyS GV Motor Protection Circuit Breaker 690V Thermal Magnetic 3 Poles GV2L08

Schneider Electric GV2L08 is a TeSyS GV series Motor Protection Circuit Breaker designed to ensure superior protection for electrical motors in industrial environments. Rated for 690V and equipped with thermal magnetic sensing, this 3-pole circuit breaker offers reliable defense against overloads and short circuits for motors typically between 1.1 to 1.5 kW at 400V.

Its lightweight and compact form factor facilitates installation in constrained spaces without compromising durability. The rotary knob control permits straightforward local manual operation including start and stop functions, engineered for up to 100,000 AC-3 cycles to guarantee long service life. The device uses screw clamp terminals ensuring secure and stable wiring connections.

The GV2L08 model includes a magnetic trip feature activating at 13 times the nominal current to protect motors from high current faults with a breaking capacity of 100kA at 400V. Additionally, the motor circuit breaker supports remote control tripping via a built-in shunt trip, enhancing operational safety and flexibility.

Operating temperature range from -20°C to 60°C makes it suitable for diverse industrial conditions. This circuit breaker complies with multiple international standards including ATEX, BV, CCC, CSA, DNV GL, EAC, IEC 60947-2 and IEC 60947-4-1, IECEE CB Scheme, REACH and RoHS directives, RINA, and UL certifications. The IP20 rating ensures protection against solid object ingress while limiting user contact with live parts for enhanced safety.

Typical applications include electrical motor control and protection in automation and manufacturing settings. It can be easily mounted on rails by screw or clip fixing and used alongside thermal overload relays (such as the LRD08 model) for comprehensive motor protection systems.

This Schneider Electric TeSyS GV Motor Protection Circuit Breaker offers a dependable solution for protecting motors and minimizing downtime in demanding industrial operations. Thermal magnetic sensing for motor overload and short circuit protection.

Compact and lightweight suitable for tight installation spaces. Rotary knob manual control with extensive durability. Supports remote tripping via built-in shunt trip. Conforms to multiple international safety and quality standards.

IP20 rated for protection against solid intrusion and contact safety. Installable by screw or clip on mounting rails. Explore more Schneider Electric Motor Protection Circuit Breakers and related automation solutions at EnvMart.
