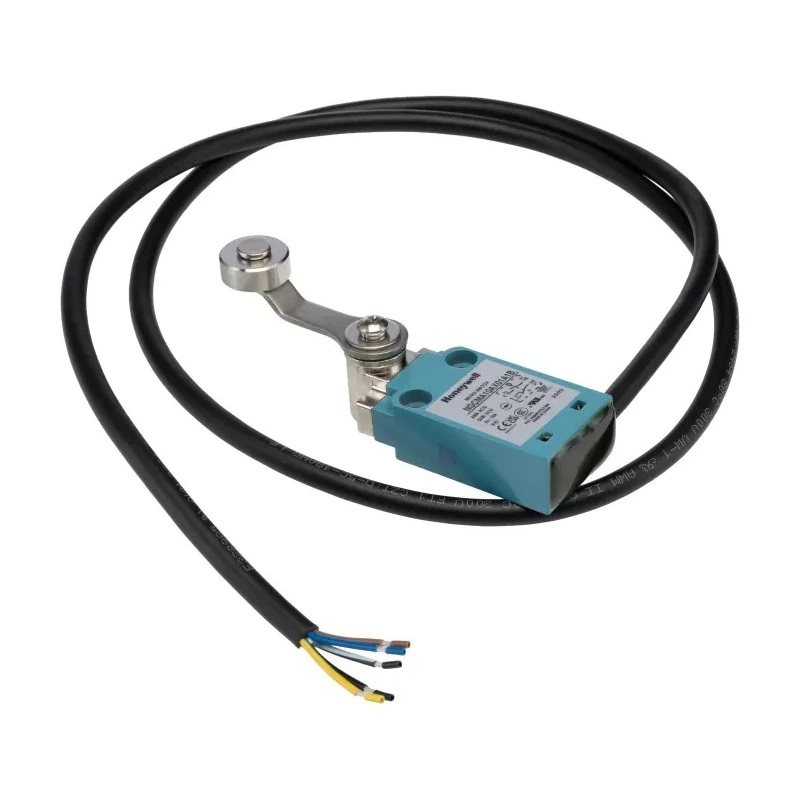

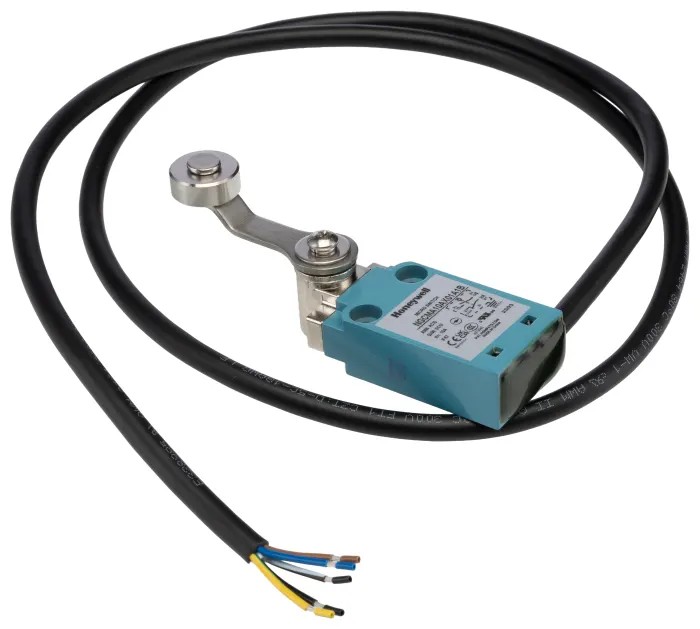

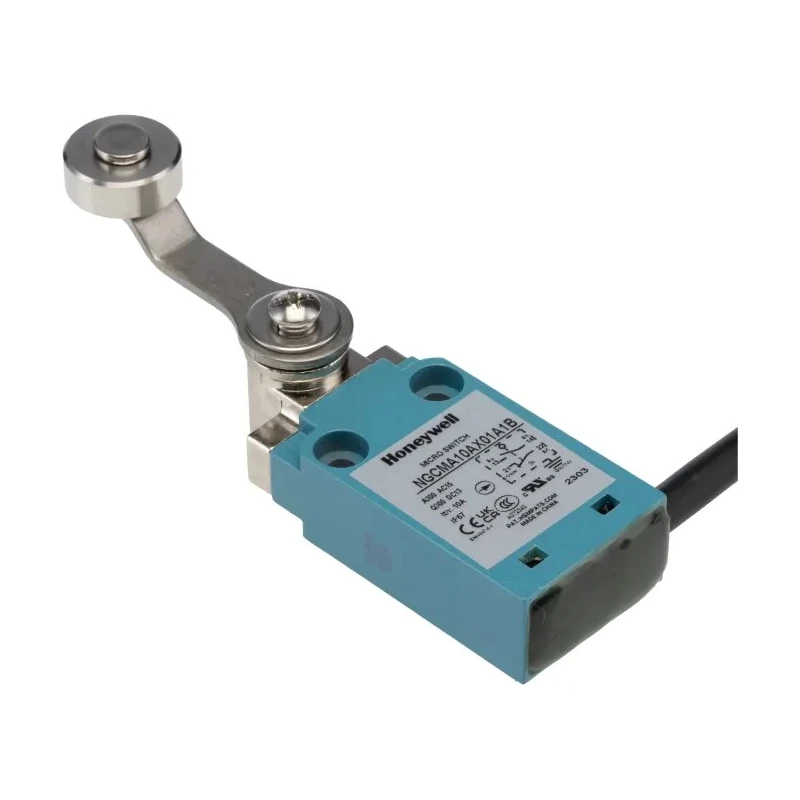

Honeywell Technologies NGC Series Roller Lever Limit Switch, SPDT, IP67 Metal Housing, 240V AC, 6A NGCMA10AX01A1B
Specifications
| Country of Origin | China |
|---|---|
| Brand | Honeywell |
| Length | 30mm |
| Model | NGCMA10AX01A1B |
| Depth | 106.3mm |
| IP Rating | IP67 |
| Width | 32.5mm |
| Housing Material | Metal |
| Series | NGC |
| Maximum Operating Temperature | 75°C |
| Mounting Orientation | Vertical |
| Contact Configuration | SPDT |
| Actuator Type | Roller Lever |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -25°C |
| Switching Current | 6A |
| Terminal type | Cable |
| Standards/Approvals | RoHS |
| Mechanical Life | 5000000Cycles |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 240V ac |
| Conduit Entry | M12 x 1 |
Key Features
- The switch features a robust metal housing providing IP67 protection against dust and water.
- Snap-action SPDT contacts ensure precise electrical switching performance.
- Rated switching current of 6A supports loads at 240V AC and 250V DC.
- Designed for vertical mounting and operates reliably between -25°C and 75°C.
- Cable termination with M12 x 1 conduit entry offers secure wiring installation.
- Mechanical life rated at 5 million cycles reduces maintenance needs.
- Suitable for conveyor position sensing, mechanical press limit detection, and guarding interlocks.
- Provides single-pole double-throw contact arrangement for flexible circuit design.
Product Description
Honeywell NGCMA10AX01A1B is a Roller Lever Limit Switch from the NGC Series, designed for industrial automation and control systems. It features a metal housing with IP67 ingress protection, ensuring durability and resistance to dust and water in harsh environments. The switch is equipped with snap-action SPDT contacts that provide reliable and precise switching behaviour supporting electrical loads up to 6A at 240V AC or 250V DC.
This limit switch is engineered for vertical mounting orientation to optimize actuator travel and contact operation. Its cable termination uses a secure M12 x 1 conduit entry, facilitating sealed electrical connections suitable for industrial installations.
Designed to withstand a broad operating temperature range from -25°C to 75°C and a mechanical life expectancy of 5 million cycles, the NGCMA10AX01A1B minimizes downtime and maintenance requirements in continuous operation environments.
Common applications include conveyor position sensing in automated production lines, limit detection on mechanical presses, actuated doors, guarding interlocks, and material handling systems providing accurate position feedback. The single-pole double-throw contact configuration enables both normally open and normally closed circuit implementation, enhancing circuit flexibility without additional relays.
The switch’s metal housing ensures robust protection and long service life. Snap-action contacts offer rapid switching transitions for precise control. IP67 rating guarantees operation in environments exposed to dust and water.
Supports electrical loads of 6A at 240V AC and 250V DC. Vertical mounting orientation optimizes actuator performance. Conduit entry M12 x 1 provides secure and sealed cable connections. Mechanical life rated at 5 million cycles for extended durability.
Flexible contact configuration supports multiple control circuit designs.
This Honeywell limit switch is manufactured in China and is RoHS compliant, making it suitable for industrial automation, manufacturing, material handling, and safety control applications. For a comprehensive range of Limit Switches and related control devices, browse EnvMart’s Electronics & Electricals section.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this model is 6A.
It operates reliably between -25°C and 75°C.
It features a single-pole double-throw (SPDT) contact configuration.
This limit switch has an IP67 rating, providing protection against dust and water.
The cable termination uses an M12 x 1 conduit entry for secure wiring installation.
The mechanical life is rated at 5 million cycles, reducing maintenance needs.
The housing is made of metal, ensuring durability in industrial environments.
The dimensions are 30mm in length, 32.5mm in width, and 106.3mm in depth.
Yes, the NGCMA10AX01A1B is RoHS compliant, making it suitable for industrial applications.
It is suitable for conveyor position sensing, mechanical press limit detection, and guarding interlocks.
It uses a roller lever actuator type for precise operation.
It supports switching voltages of 240V AC and 250V DC.
