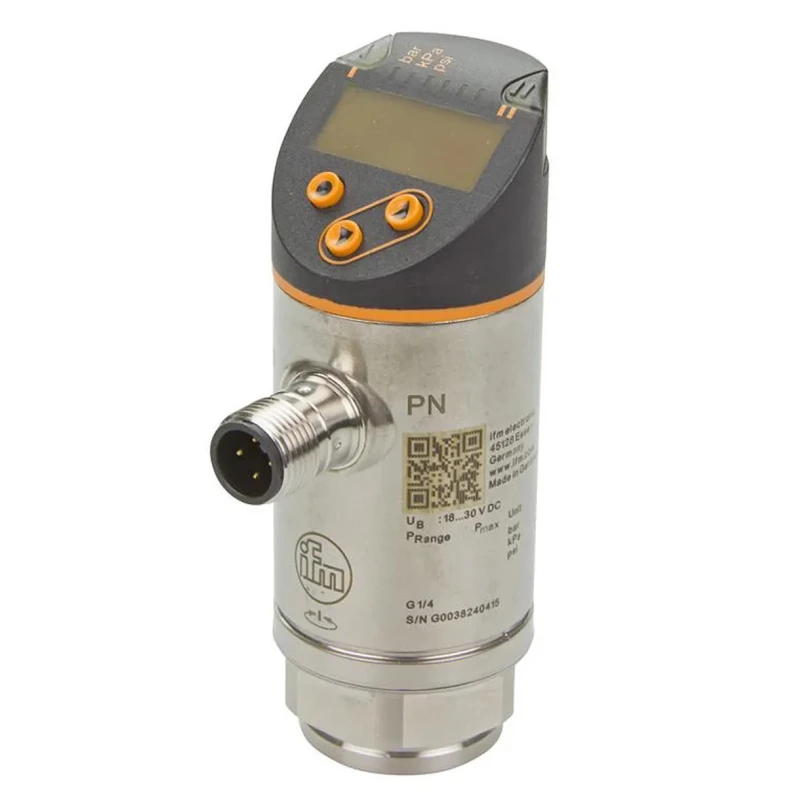

ifm electronic PN Series Pressure Sensor 0 bar to 600 bar Relative Reading IP65/IP67 Fibreglass Reinforced PBT GF30 PN7160

ifm electronic PN7160 PN Series Pressure Sensor provides high-precision relative pressure measurement ranging from 0 bar minimum to 600 bar maximum. This sensor is engineered for demanding industrial environments, with a durable fibreglass reinforced PBT GF30 and stainless steel housing ensuring longevity and robustness.

The sensor features an accuracy of ±0.5% and a fast 3 ms response time, enabling precise and timely pressure monitoring. It operates efficiently between -25°C and 80°C, making it suitable for varied ambient conditions.

Its IP65 and IP67 ratings protect the sensor against dust ingress and water immersion, allowing use in harsh environments including industrial automation, hydraulic, pneumatic, and fluid control systems.

The PN7160 includes IO-Link communication and dual switch outputs (NC/NO) with adjustable hysteresis, providing enhanced control options often replacing multiple mechanical switches. The sensor continuously displays system pressure on a bright 4-digit alphanumeric display which clearly signals switching states with red and green visual cues.

Additional features include signal damping, configurable output delays, high overload protection, and a highly stable ceramic measuring element tolerant to overpressure, minimizing drift caused by ageing, temperature, or pressure fluctuations.

This pressure sensor complies with DIN EN 61000-6-2, DIN EN 60068-2-6, UL approval number J003, DIN EN 61000-6-3, DIN EN 60068-2-27, and IEC 61131-9 standards, ensuring quality and reliability.

Its flexible design allows rotation in any direction upon installation for simplified setup. The PN7160 pressure sensor is well-suited for industrial, automation, hydraulic, pneumatic, water treatment, and manufacturing applications requiring precise fluid pressure monitoring.

The sensor offers an accuracy of ±0.5% ensuring reliable pressure readings. Equipped with a robust housing made from fibreglass reinforced PBT GF30 and stainless steel for durability. Operates within a temperature range of -25°C to 80°C suitable for diverse environments.

Features fast response time of 3 ms for real-time pressure monitoring. Designed for industrial automation with IO-Link communication and dual switch outputs. High overload protection and low zero offset enhance sensor stability.

Visual status indication through a bright 4-digit alphanumeric electronic display. Compatible with fluids as the measured media, ideal for hydraulic and pneumatic systems. Meets multiple international standards including DIN EN and UL approvals.

Ensures easy installation with its flexible rotational mounting design. Explore more Pressure Sensors and automation components on EnvMart for comprehensive industrial solutions.
