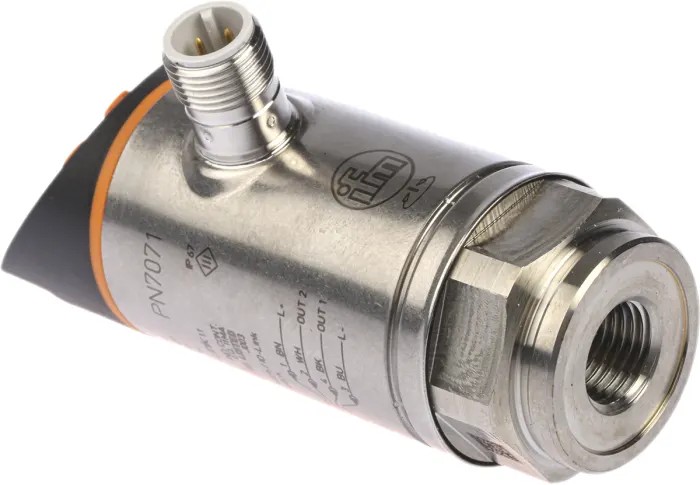

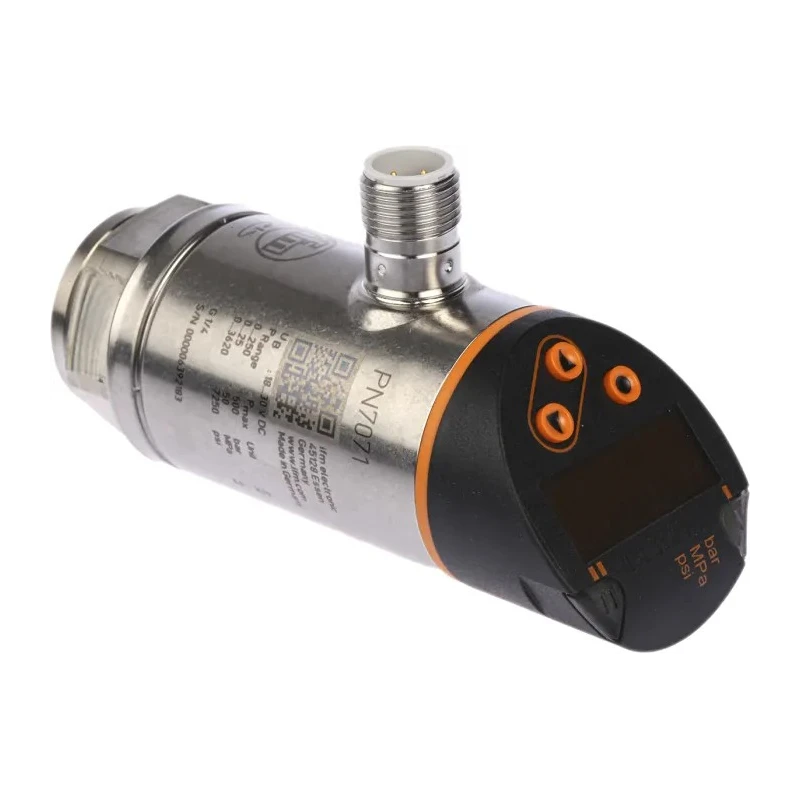

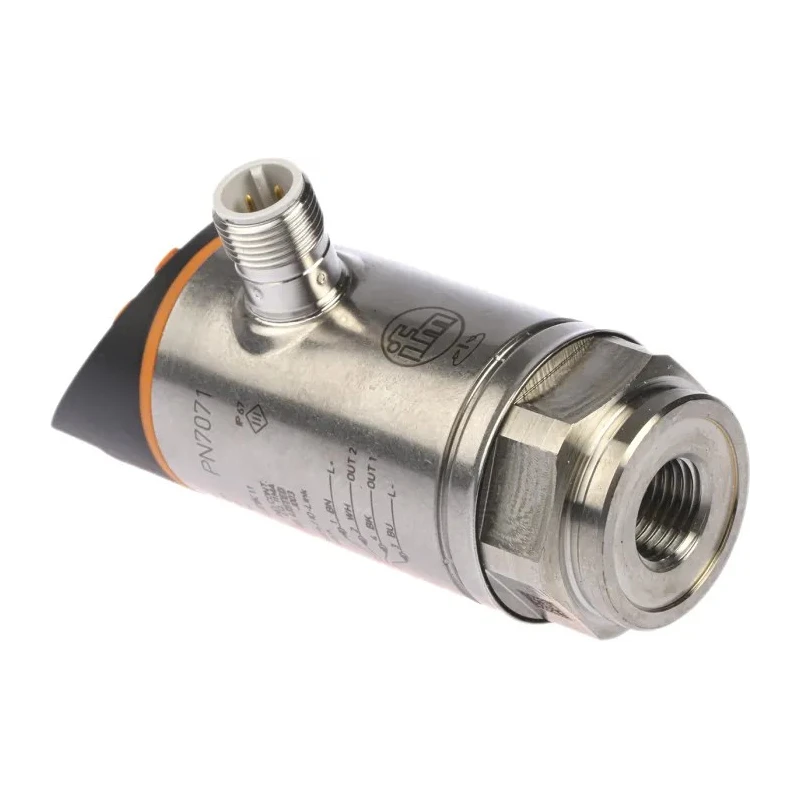

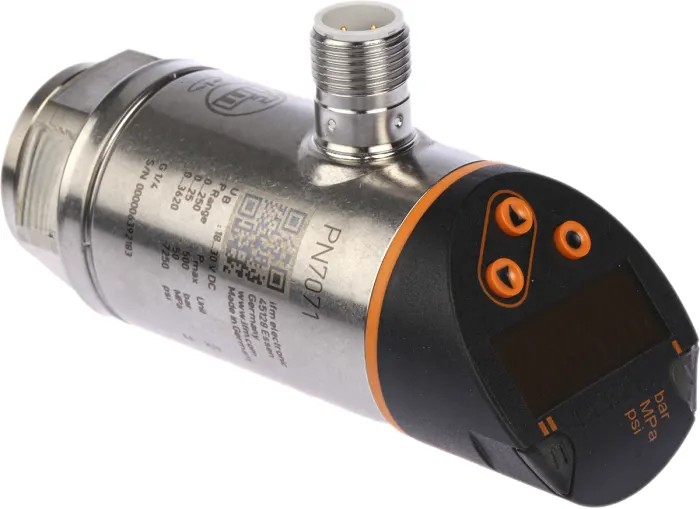

ifm electronic PN Series Pressure Sensor 0 bar to 250 bar Relative Reading with Dual Switched Outputs PN7071

ifm electronic PN7071 Pressure Sensor is a high-performance industrial sensor designed for precise relative pressure measurement from 0 bar minimum to a maximum of 250 bar. This pressure sensor features a dual switched output functionality with normally closed and normally open options, allowing flexible control for industrial automation systems.

Its rugged construction incorporates fibreglass reinforced PBT GF30 and stainless steel materials, providing excellent resistance to mechanical stress and environmental factors. The sensor is rated IP65 and IP67, offering protection against dust ingress and immersion, making it suitable for harsh industrial environments such as manufacturing, hydraulic systems, process control, and fluid monitoring applications.

The sensor integrates a highly stable ceramic measuring element that maintains accuracy with minimal zero offset or drift, even under overpressure conditions or varying temperatures. With a fast 3 millisecond response time and programmable hysteresis for output switching, it can replace traditional mechanical switches, providing digital precision and reliability.

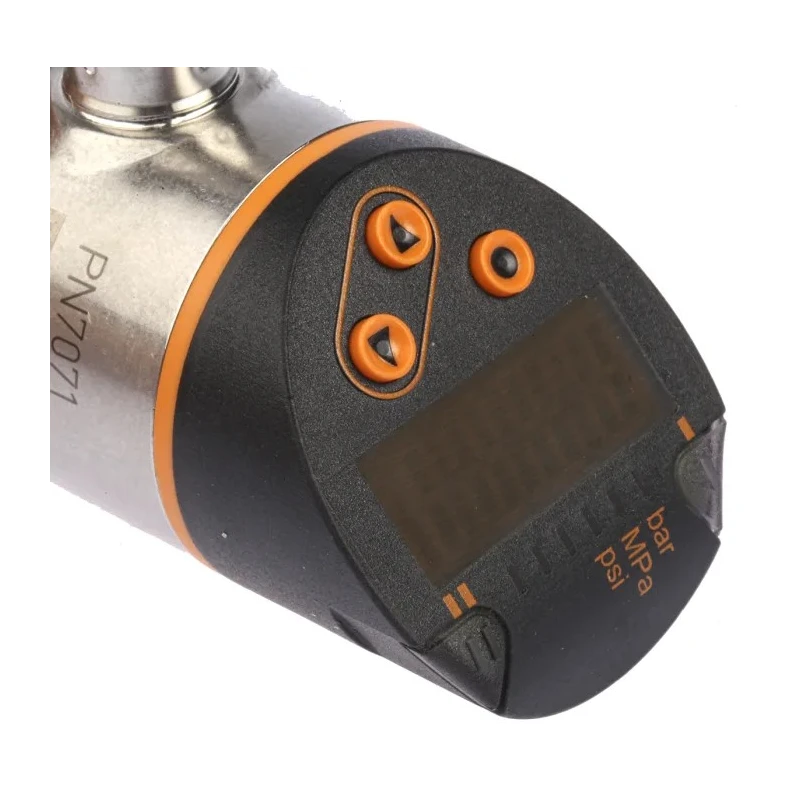

IO-Link communication support enables seamless integration into modern automation networks, and the bright 4-digit alphanumeric display clearly visualizes system pressure and switching states with color-coded LED indicators. Operating over a voltage range from 18V to 30V DC and conforming to IEC 61131-9 standards, this sensor guarantees compatibility and performance consistency.

This pressure sensor is ideal for applications in industrial automation, hydraulic and pneumatic systems, water treatment plants, laboratory instrumentation, and environmental monitoring, where precise pressure measurement and robust operation are critical.

Equipped with dual switched NC/NO outputs programmable for independent set and reset points. Features a highly stable ceramic measuring element tolerant of overpressures. Robust housing made of fibreglass reinforced PBT GF30 and stainless steel ensuring durability.

High overload protection with IP65 and IP67 ingress protection rating. Fast response time of 3 milliseconds suitable for dynamic industrial processes. Wide operating temperature range from -25°C to 80°C for versatile environments.

Supports IO-Link communication with visual switching states on LEDs for easy monitoring. Operates on supply voltage from 18V to a maximum of 30V DC ensuring compatibility with industrial control systems. Conforms with IEC 61131-9 standard ensuring reliable and standardized performance.

Display with 4-digit alphanumeric for clear pressure readings and switching states. Set contains one Pressure Sensor with part number PN7071 by ifm electronic. Explore more sensors and automation solutions in EnvMart's Electronics & Electricals Sensors category.
