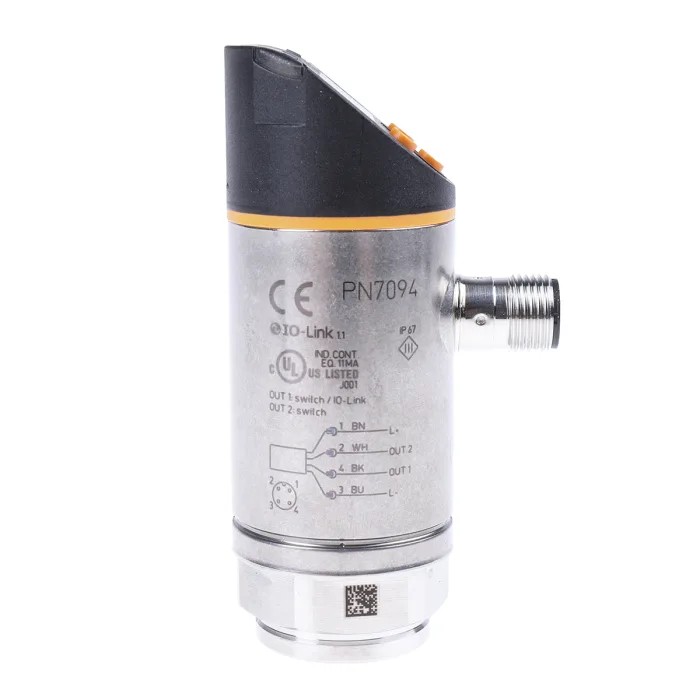

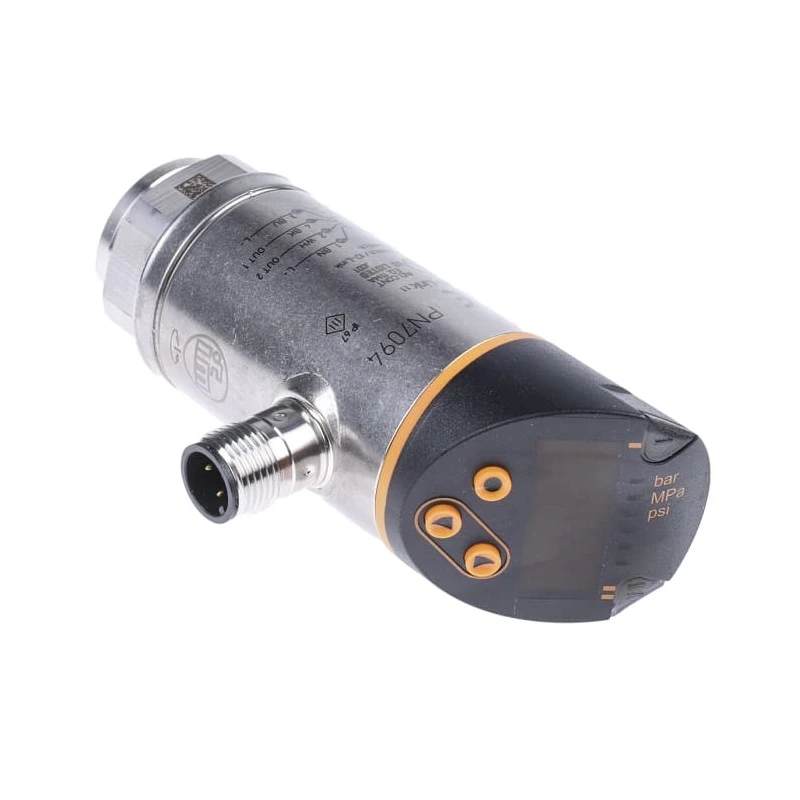

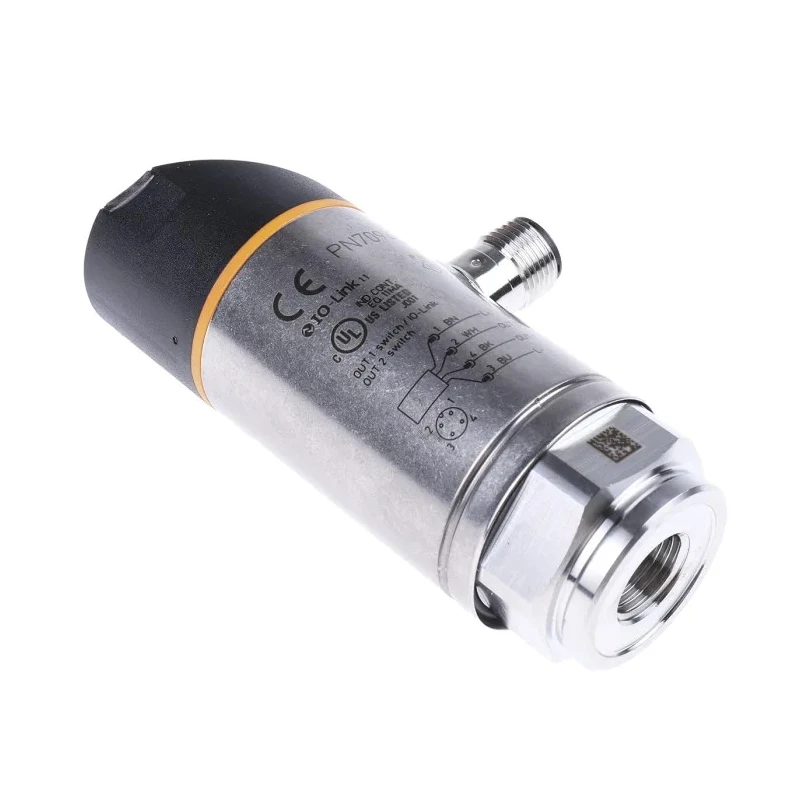

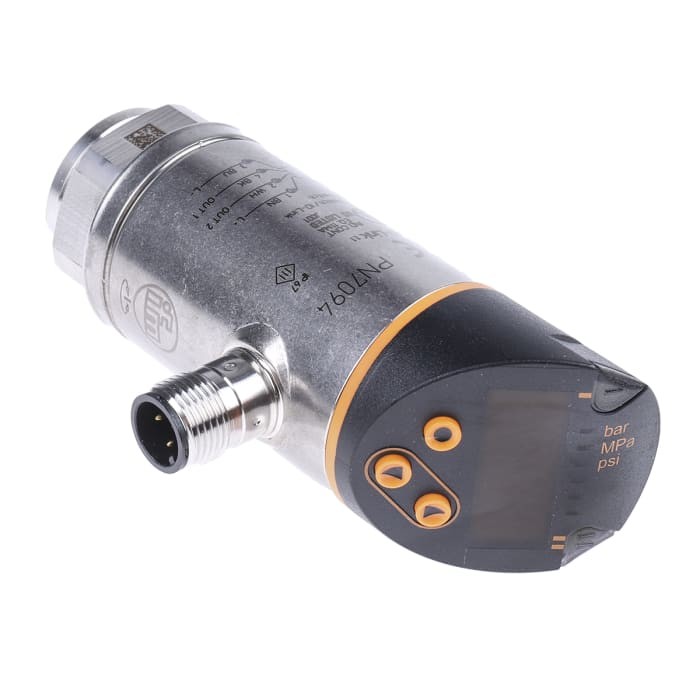

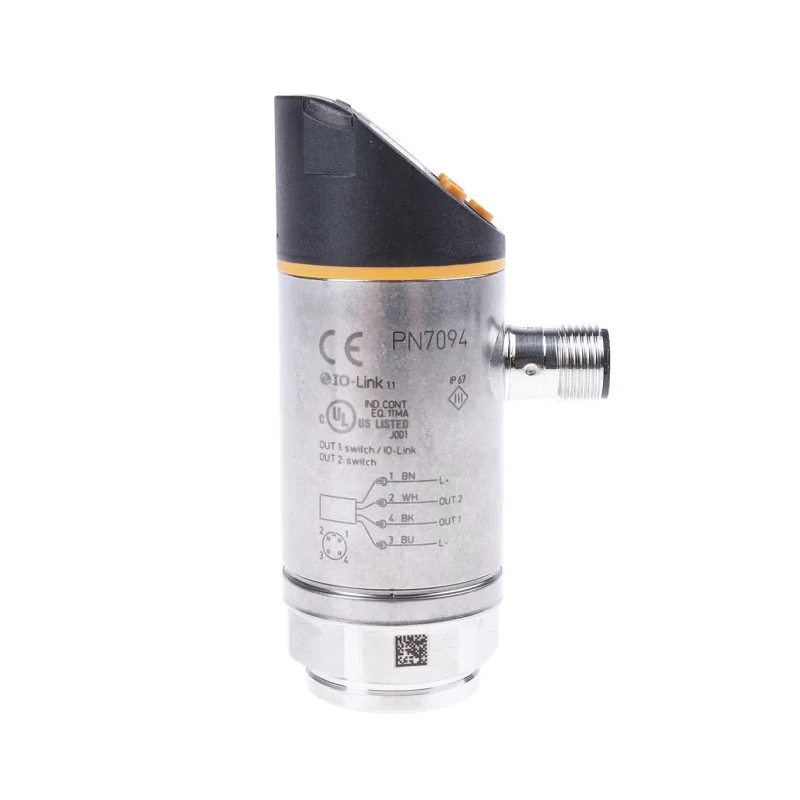

ifm electronic PN Series Pressure Sensor -1 bar to 10 bar Relative Measurement with Fibreglass Reinforced PBT GF30 PN7094
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±0.5 % |
| Brand | ifm electronic |
| Response time | 3ms |
| Model | PN7094 |
| IP Rating | IP65, IP67 |
| Housing Material | Fibreglass Reinforced PBT GF30, Stainless Steel |
| Series | PN |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -25°C |
| Standards/Approvals | IEC 61131-9 |
| Maximum Pressure Measurement | 10bar |
| Minimum Pressure Measurement | -1bar |
| Maximum Supply Voltage | 30V dc |
| Minimum Supply Voltage | 18V |
| Pressure Reading Type | Relative |
| Media Measured | Fluid |
Key Features
- The sensor provides high accuracy of ±0.5% ensuring precise pressure monitoring.
- Robust housing is made of fibreglass reinforced PBT GF30 with stainless steel for durability.
- Dual switched NC/NO outputs allow flexible control with adjustable hysteresis.
- Ingress protection ratings of IP65 and IP67 ensure suitability in harsh environments.
- Operating temperature ranges from -25°C to 80°C for reliable performance.
- Equipped with IO-Link communication and visual LED switching state indicators.
- Response time is rapid at 3 milliseconds for timely detection.
- High overload protection with a stable ceramic measuring element resistant to ageing and temperature effects.
Product Description
ifm electronic PN7094 PN Series Pressure Sensor is a high-performance device designed for relative pressure measurement in fluid media, supporting a pressure range from -1 bar minimum to a maximum of 10 bar. The sensor features a durable fibreglass reinforced PBT GF30 plastic housing with stainless steel components, ensuring robustness for industrial environments. It supports supply voltages from 18V to 30V DC and meets IEC 61131-9 standards.
This model incorporates dual switched normally closed and normally open outputs with fully adjustable hysteresis, making it versatile enough to replace two separate mechanical switches. The sensor quickly responds within 3 milliseconds, providing rapid pressure detection essential for automation and control systems.
The IP65 and IP67 ingress protection ratings make it suitable for tough conditions including dust and immersion. Operating temperature ranges from -25°C to 80°C, allowing use in diverse industrial and laboratory settings such as manufacturing lines, hydraulic and pneumatic systems, HVAC monitoring, and water treatment facilities.
Distinctive features include IO-Link communication for seamless integration into modern control systems and brightly visible LED indicators that signal switching states clearly, improving diagnostics and maintenance workflows. The sensor’s ceramic measuring element is highly stable, tolerant to overpressure, and exhibits minimal zero offset or drift from aging or temperature fluctuations.
The sensor's flexible installation design permits rotation in any direction after mounting, enhancing convenience and precision in alignment. This makes the PN7094 ideal for use in industrial instrumentation setups, automated manufacturing, process control, and lab equipment requiring precise pressure sensing.
The sensor’s rugged design includes fibreglass reinforced PBT GF30 and stainless steel housing. Full scale range from -1 bar to 10 bar relative pressure measurement. Dual switched NC/NO outputs with adjustable hysteresis for flexible control.
Fast response time of 3 milliseconds enables real-time pressure monitoring. Ingress protection ratings IP65 and IP67 for harsh environment suitability. Operating temperature range from -25°C to 80°C supports varied industrial applications.
IO-Link communication protocol supports advanced automation integration. Highly stable ceramic sensor element resists zero offset and aging effects. Bright LED display indicates switching state for easy visual monitoring.
Flexible sensor rotation after installation allows adaptable mounting positions. Explore our extensive inventory of sensors from leading manufacturers at EnvMart for all your automation, industrial, and laboratory pressure measurement needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PN7094 pressure sensor measures relative pressure from -1 bar to a maximum of 10 bar.
This model has an accuracy of ±0.5%, ensuring precise pressure monitoring.
The sensor has IP65 and IP67 ingress protection ratings, making it suitable for harsh environments including dust and immersion in water.
The response time of this sensor is 3 milliseconds, allowing for rapid pressure detection.
It operates effectively within a temperature range of -25°C to 80°C.
The housing is made of fibreglass reinforced PBT GF30 and stainless steel, providing robustness for industrial applications.
This model features dual switched normally closed (NC) and normally open (NO) outputs with adjustable hysteresis.
The PN7094 requires a supply voltage between 18V and 30V DC.
Yes, it is equipped with IO-Link communication for seamless integration into modern control systems.
The sensor meets IEC 61131-9 standards, ensuring compatibility with industrial automation systems.
Yes, the sensor allows for flexible installation and can be rotated in any direction after mounting.
It is designed to measure relative pressure in fluid media.
