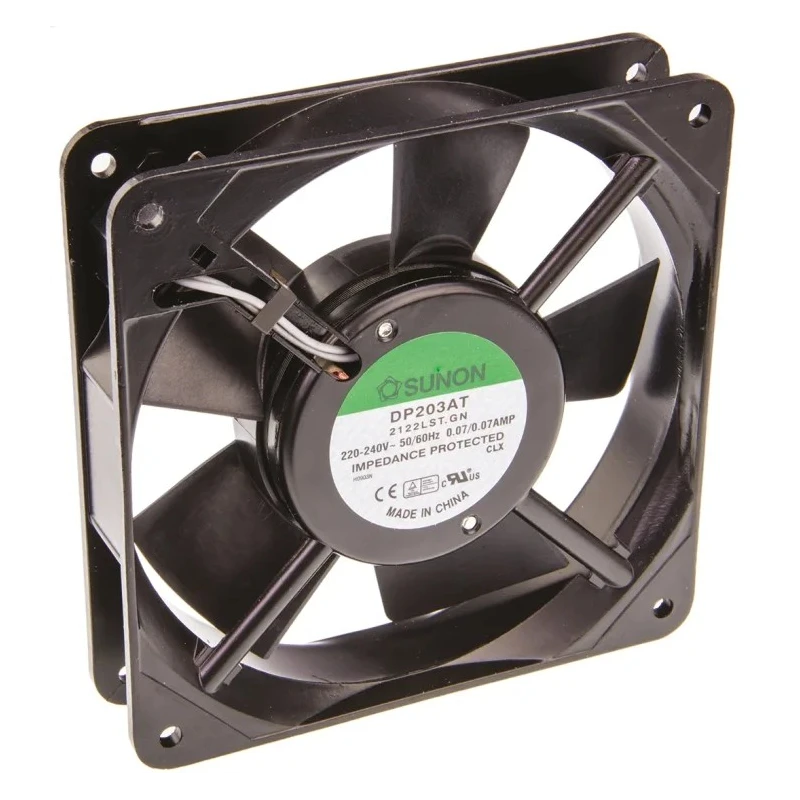

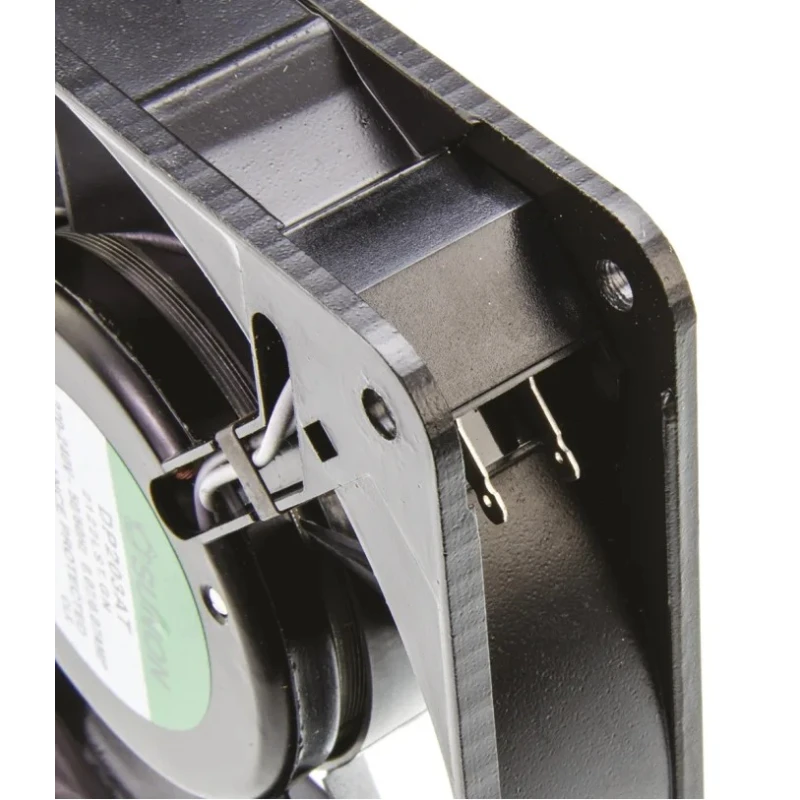

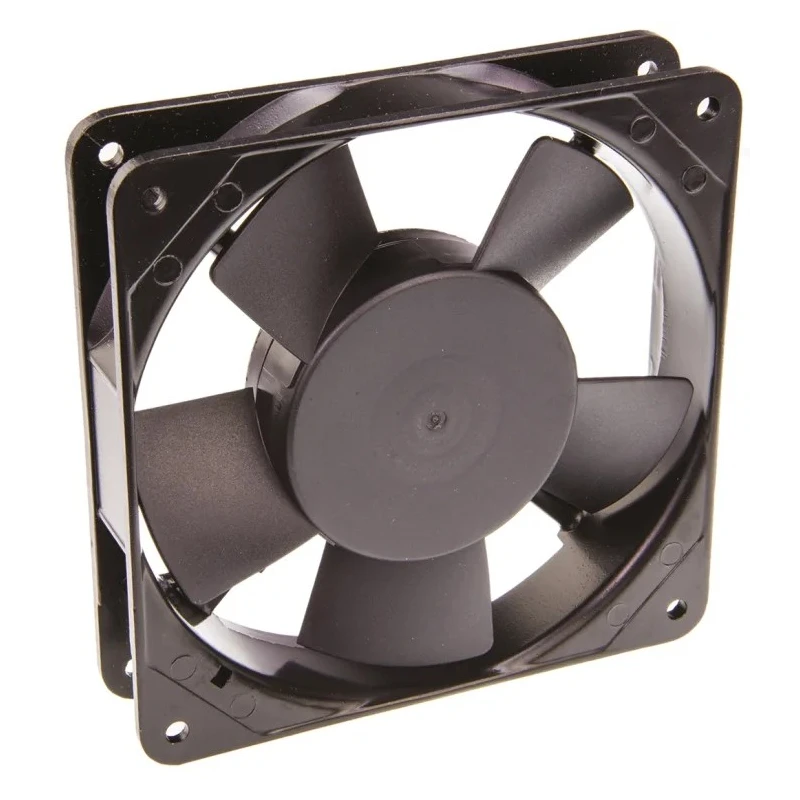

Sunon DP Series Axial Fan 230V AC 13W 78.2 m³/h Airflow 120x120x25 mm Sleeve Bearing DP203AT/2122LST.GN

Sunon DP203AT/2122LST.GN Axial Fan is a robust industrial cooling component engineered for efficient thermal management with a power rating of 13W and airflow capacity of 78.2 cubic meters per hour. Operating at 230V AC and delivering 70 mA maximum current, this axial fan offers reliable performance for diverse industrial use cases including air conditioning units, heating devices, automation systems, and medical equipment.

The fan features a compact square frame with dimensions of 120 mm by 120 mm by 25 mm, constructed from a sturdy aluminium alloy to provide strength and stability. The thermoplastic impellers complement the structural design, ensuring low weight and resistance to thermal stress. Equipped with a sleeve bearing, the fan offers an extended service life of approximately 50,000 hours under normal operating conditions.

The fan's forward curve characteristic contributes to smooth airflow and noise efficiency with a sound level rated at a low 38 dB, suitable for environments requiring quiet operation. Its motor speed of 1800 rpm allows effective air movement and temperature regulation in cooling systems. The fan supports blow or extract mounting methods, allowing installation versatility in various orientations.

Designed with energy conservation in mind, this DP series axial fan incorporates eco-friendly technology that balances performance with low power consumption. It meets multiple international certifications including UL, cUR, TUV, RoHS, and CE, ensuring compliance with safety and environmental standards.

Applications for this axial fan include HVAC systems, industrial automation controls, medical devices, and other environments demanding reliable air circulation and cooling efficiency.

Equipped with a durable sleeve bearing for extended operational life. Compact square fan frame measuring 120 mm by 120 mm by 25 mm. Fan speed rated at 1800 rpm with forward curve direction. Low noise operation at 38 dB ensuring quiet performance.

Constructed with aluminium alloy frame and thermoplastic impellers for durability. Suitable for mounting to blow or extract air in various applications. Designed to withstand high temperature and is impedance protected. Ideal for industrial cooling, HVAC systems, automation control, and medical equipment.

Certified to standards including UL, cUR, TUV, RoHS, and CE. Explore the Sunon range in EnvMart's Industrial Coolers Blowers & Fans category for more Axial Fan options and related thermal management solutions.
