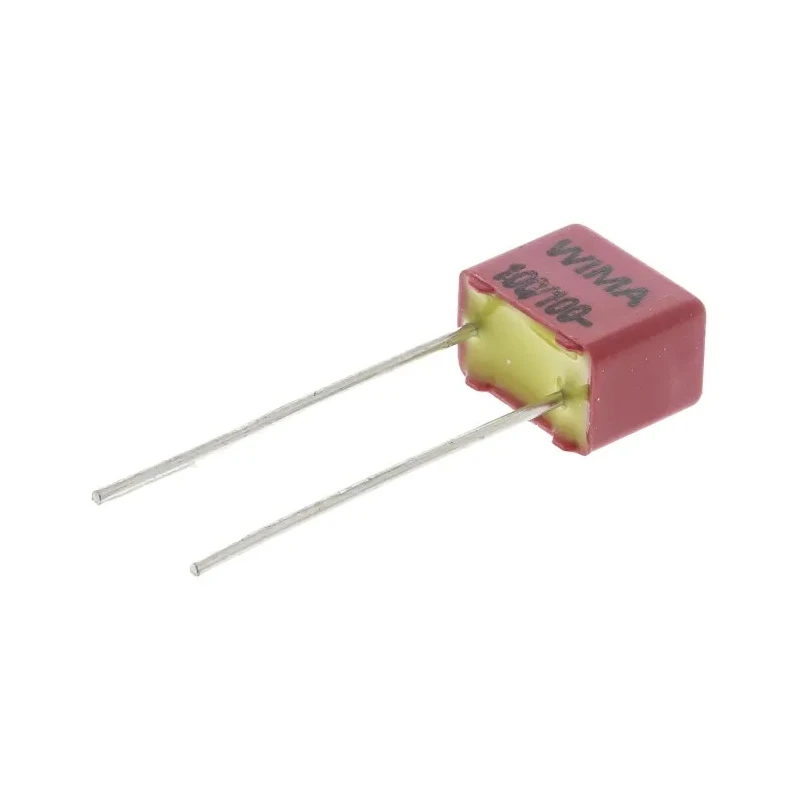

WIMA FKP2 Film Capacitor, 100 pF ±5%, Rated 100 V DC 63 V AC, Through Hole Mount, Lead Pitch 5 mm FKP2

WIMA FKP2 Film Capacitor FKP2 model is a high-quality passive electronic component designed for through hole applications. It offers a capacitance of 100 pF with a tolerance of ±5%, making it suitable for precision use in electronic circuits that require stable capacitance values.

Rated for 100 V DC and 63 V AC, this capacitor can handle moderate voltage conditions typical in audio equipment, oscillators, timing circuits, and LC filters. The lead pitch of 5 mm ensures compatibility with standard through hole PCB layouts.

The capacitor's compact dimensions of 7.2 mm length, 4.5 mm width, and 6 mm height, along with a lead diameter of 0.5 mm, make it suitable for dense electronic assemblies. It is designed to operate between -55°C and 100°C, enabling use in various industrial and commercial environments.

Additional electrical characteristics include a temperature coefficient of approximately -200 ppm/°C for consistent performance under temperature variations. The insulation resistance exceeds 5x105 MΩ and it supports a maximum pulse rate-of-change of 1000 V/μs, which enhances durability against surges and transient voltages.

Manufactured in Germany, this capacitor complies with international standards DIN EN ISO 14001:2004 and ISO 9001:2008, ensuring quality and environmental responsibility, also meeting RoHS directive requirements for hazardous substance restrictions.

Capacitance: 100 pF with ±5% tolerance. Rated DC voltage: 100 V; AC voltage: 63 V. Compact through hole design with 5 mm lead pitch. Temperature range from -55°C to 100°C for versatile applications. High insulation resistance and pulse rate capability.

Compliant with international quality and environmental standards. Manufactured in Germany ensuring high reliability.

This WIMA FKP2 Film Capacitor is ideal for use in electronic components manufacturing, audio equipment, testing and measurement devices, and industrial control circuits. Its stable performance and compliance with quality standards make it a reliable choice for precision electronic circuit design.
