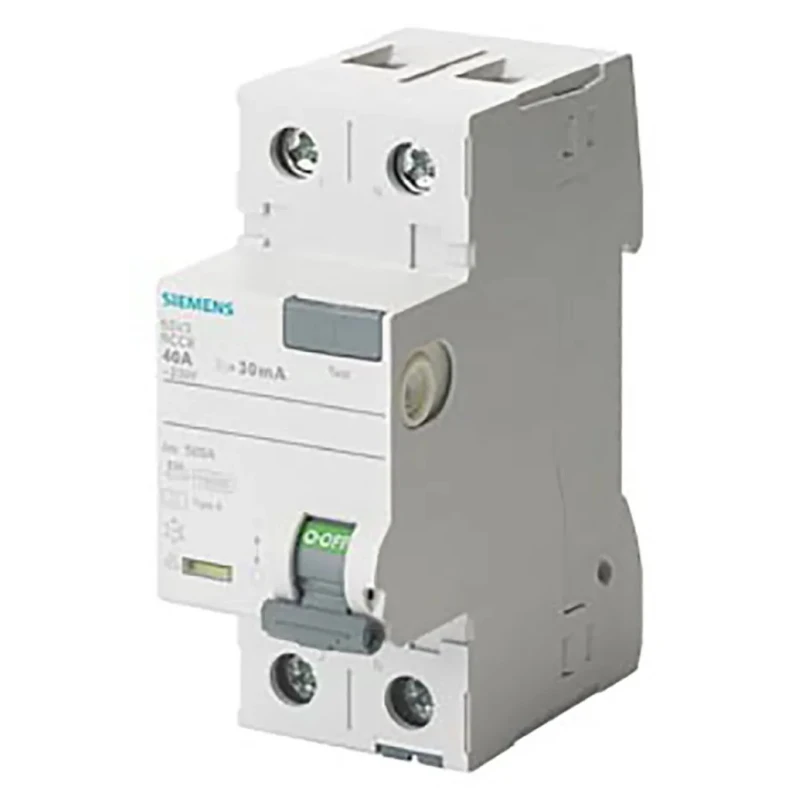

Siemens Residual Current Circuit Breaker 40A 2-Pole 300mA Type A 0.8kA 230V AC 5SV3614-6

Siemens 5SV3614-6 Residual Current Circuit Breaker is a high-quality electrical protection device designed for residential and industrial applications. Featuring a current rating of 40A and two poles, this circuit breaker is built to protect personnel and fire hazards by detecting earth leakage currents of 300mA with Type A sensitivity.

Its robust design allows DIN rail mounting for straightforward integration into electrical panels. The rated AC voltage is 230V, with a breaking capacity of 0.8kA and an instantaneous break time to ensure rapid disconnection in fault conditions.

The device uses a toggle switch for reset actuator and screw terminal connections for secure wiring. It complies with important international standards including CCC, EAC, CE, UKCA, and VDE, providing assurance of safety and performance. The compact enclosure, rated at IP20, with dimensions of height 90mm, width 72mm, and depth 70mm, fits into standard switchboards easily.

Operating reliably in ambient temperatures from -25 to +45 °C, the breaker’s equipment life span exceeds 10,000 switching cycles. The electromagnetic tripping mechanism ensures precise response to residual currents of type A earth leakage protection.

Ideal for both residential and industrial usage, the Siemens 5SV3614-6 series RCCB offers long service life, instant tripping capability, and conforms to international safety standards. This device supports sustainability claims with extended product lifecycle design and silicone-free materials.

This RCCB features a trip sensitivity of 300mA and Type A tripping characteristics. It is designed for DIN rail mounting and operates at a rated AC voltage of 230V ac. Breaking capacity is rated at 0.8kA with instantaneous break time for efficient circuit interruption.

Equipped with a toggle switch reset actuator and screw terminal type for easy installation. Constructed to IEC standards with approval marks including CCC, EAC, CE, UKCA, and VDE. Compact dimensions of 90mm height, 72mm width, and 70mm depth make it suitable for various switchboards.

Its enclosure rating is IP20 with an ambient temperature range of -25 to +45 °C. Durable design with equipment life expectancy exceeding 10,000 switching cycles ensures long service life. Provides earth leakage protection type A and features an electromagnetic tripping mechanism.
