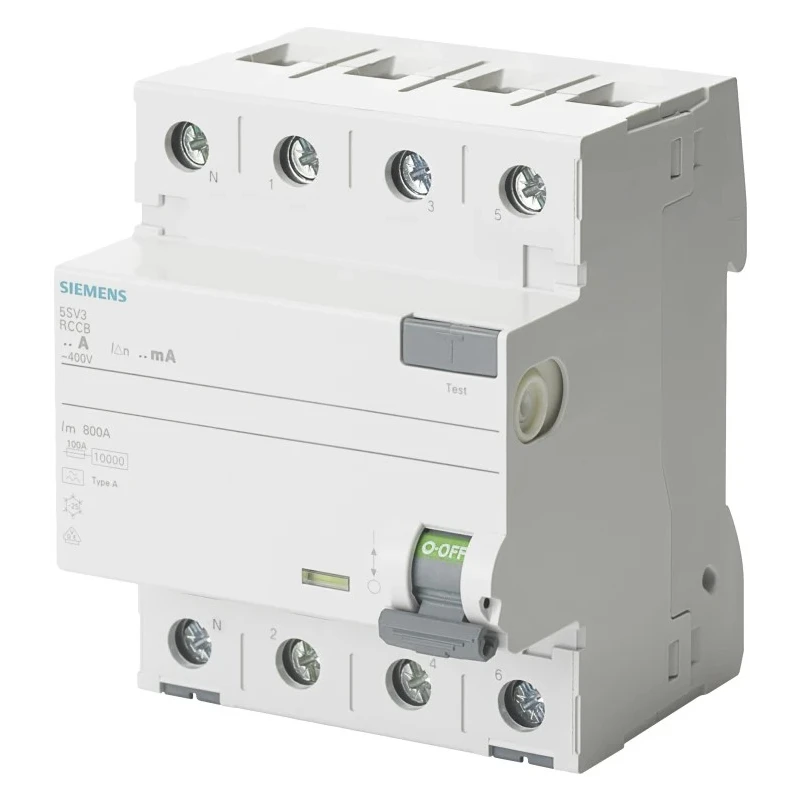

Siemens Residual Current Circuit Breaker 40A 4-Pole 30 mA Type A 0.8 kA 400V AC 5SV3344-6KL
Specifications
| Country of Origin | Germany |
|---|---|
| Range | SENTRON |
| Brand | Siemens |
| Height | 90mm |
| Model | 5SV3344-6KL |
| Depth | 70mm |
| Enclosure | IP20 |
| Width | 72mm |
| Mount Type | DIN Rail |
| Current Rating | 40A |
| Series | 5SV3 |
| Terminal type | Screw |
| Ambient Temperature | -25→+45 °C |
| Breaking Capacity | 0.8kA |
| Number of Poles | 4 |
| Standards/Approvals | VDE, CE, EAC, UKCA, CCC |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type A |
| Better World Claim | Extended Product Life |
| Tripping Mechanism | Electromagnetic |
| Reset Actuator Type | Toggle Switch |
| Trip Sensitivity | 30mA |
| Break Time | Instantaneous |
| Earth Leakage Protection Type | Type A |
Key Features
- Suitable for personnel and fire protection applications.
- Instantaneous break time with electromagnetic tripping mechanism.
- DIN rail mountable construction ensures easy installation.
- Rated AC voltage of 400V AC with 0.8 kA breaking capacity.
- Equipped with a toggle switch reset actuator for convenient operation.
- Enclosure protection rated IP20 suitable for industrial environments.
- Silicone free design enhances durability and safety.
- Designed for ambient temperatures from -25 to +45 °C.
Product Description
Siemens 5SV3344-6KL Residual Current Circuit Breaker is a high-quality device designed for reliable personnel and fire protection in residential and industrial installations. This 4-pole unit with 40A current rating features a Type A tripping characteristic and a trip sensitivity of 30 mA, enabling swift and effective protection against residual currents.
Manufactured to meet stringent standards including VDE, CE, EAC, UKCA, and CCC, this circuit breaker is suitable for DIN rail mounting, facilitating straightforward integration into electrical panels. The breaker offers a breaking capacity of 0.8 kA and operates at a rated AC voltage of 400V, ensuring robust performance under demanding electrical conditions.
The device includes a toggle switch reset actuator and electromagnetic tripping mechanism with instantaneous break time for rapid response during fault conditions. Its silicone free construction extends product life and reliability.
The product’s enclosure protection is rated IP20, providing resistance against solid objects, making it suitable for use in various industrial and commercial environments. It operates efficiently within an ambient temperature range of -25 to +45 °C, ensuring reliable functionality across diverse climates.
Siemens 5SV3344-6KL Residual Current Circuit Breaker is designed for applications requiring effective earth leakage protection while maintaining extended service life, capable of enduring over 10,000 switching cycles. Its advanced surge current withstand capability exceeding 1 kA adds to its robustness.
Suitable for personnel and fire protection applications. Instantaneous break time with electromagnetic tripping mechanism. DIN rail mountable construction for easy installation. Rated AC voltage of 400V AC with 0.8 kA breaking capacity.
Toggle switch reset actuator for efficient operation. Silicone free design for enhanced durability. IP20 enclosure protection rating. Ambient temperature range from -25 to +45 °C. Complies with multiple international safety standards.
This Residual Current Circuit Breaker is ideal for use in residential, industrial, and commercial electrical safety systems. It ensures swift protection from residual current faults to safeguard people and property.
Explore our extensive range of Siemens electrical components and circuit breakers in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Siemens Residual Current Circuit Breaker has a breaking capacity of 0.8 kA.
It operates at a rated AC voltage of 400V.
This unit features Type A tripping characteristics with a trip sensitivity of 30 mA.
The operating ambient temperature range is from -25 to +45 °C.
It is designed for DIN rail mounting, which facilitates easy installation.
The dimensions are 90 mm in height, 72 mm in width, and 70 mm in depth.
It is equipped with a toggle switch reset actuator for convenient operation.
This model has 4 poles.
It complies with several standards including VDE, CE, EAC, UKCA, and CCC.
It features an electromagnetic tripping mechanism with instantaneous break time.
The enclosure protection rating is IP20, suitable for industrial environments.
This circuit breaker is manufactured in Germany.
