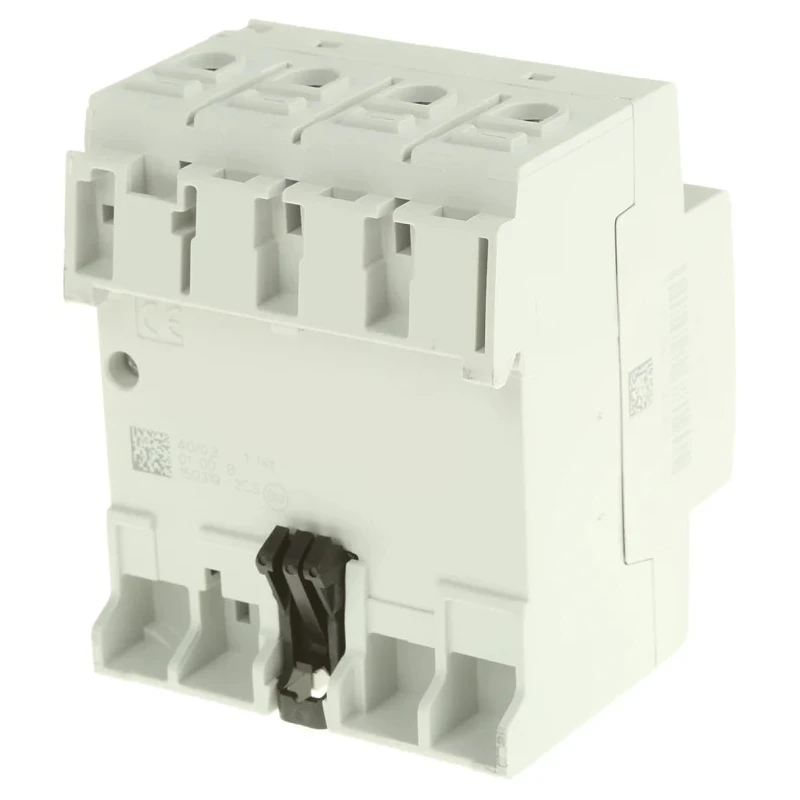

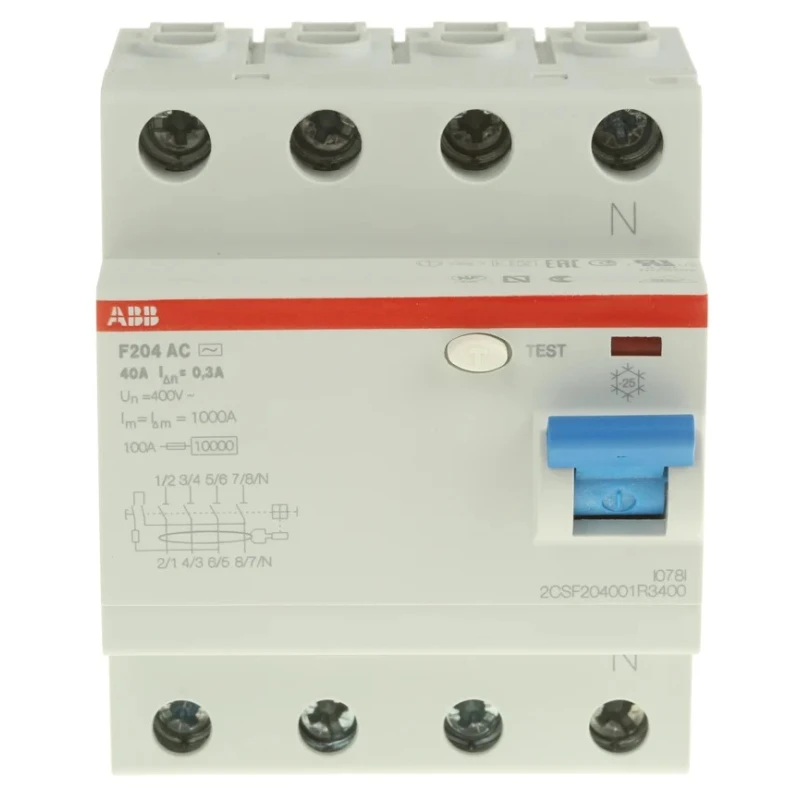

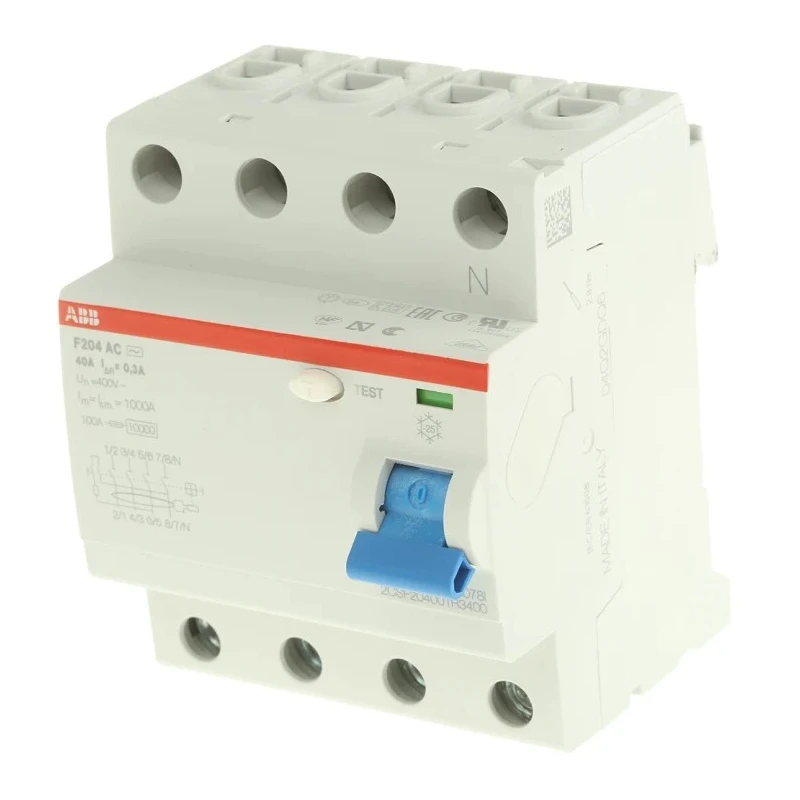

ABB Residual Current Circuit Breaker 40A 4-Pole 300mA Type AC 400V F200 Series 2CSF204001R3400 F204 AC-40/0,3
Specifications
| Country of Origin | India |
|---|---|
| Range | RCCBs F200 |
| Brand | ABB |
| Height | 85mm |
| Model | 2CSF204001R3400 F204 AC-40/0,3 |
| Depth | 85mm |
| Width | 70mm |
| Mount Type | DIN Rail |
| Current Rating | 40A |
| Series | F200 |
| Terminal type | Screw |
| Breaking Capacity | 0.3A |
| Number of Poles | 4 |
| Standards/Approvals | RoHS, CE |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type AC |
| Reset Actuator Type | Toggle Switch |
| Trip Sensitivity | 300mA |
| Break Time | Instantaneous |
| Earth Leakage Protection Type | AC |
| RCBO's | DIN rail mounting with an operating temperature range of -25 to +55 °C. Optimum frequency range of 50 to 60Hz |
Key Features
- Compact DIN rail mounting design for easy installation.
- Trip indicator with mechanical flag for clear status monitoring.
- Instantaneous break time providing fast disconnection.
- Suitable for operating temperatures from -25 to +55 °C.
- Operates optimally in frequency range of 50 to 60Hz.
- Toggle switch reset actuator for convenient operation.
- Equipped with screw terminal type for secure electrical connections.
- Complies with RoHS and CE standards for safety and environmental compliance.
Product Description
ABB 2CSF204001R3400 F204 AC-40/0,3 Residual Current Circuit Breaker (RCCB) from the F200 Series is designed to provide reliable ground fault protection by detecting leakage currents and disconnecting the circuit to enhance safety in electrical installations.
This 40A rated, 4-pole Type AC RCCB is DIN rail mountable, making it compact and easy to integrate into various commercial and industrial control panels. It features a trip sensitivity of 300mA, ensuring effective installation against earth leakage currents that could pose a risk to personnel or equipment.
The breaker operates on a 400V AC rating and has an instantaneous break time for rapid response to faults. The reset actuator is a toggle switch, which offers straightforward manual reset functionality. The device is constructed with screw terminals for secure connections and incorporates a trip indicator mechanical flag for quick visual identification of the trip status.
Designed for use across a temperature range of -25 to +55 °C and optimizing operation within 50 to 60Hz frequency, it meets RoHS and CE regulatory standards ensuring compliance with safety and environmental directives.
The ABB F200 series RCCBs are commonly used in industrial, commercial, HVAC, and electrical automation applications where safety and reliable earth leakage protection are crucial. Compact DIN rail mounting design for easy installation.
Trip indicator with mechanical flag for clear status monitoring. Instantaneous break time providing fast disconnection. Suitable for operating temperatures from -25 to +55 °C. Operates optimally in frequency range of 50 to 60Hz.
Toggle switch reset actuator for convenient operation. Equipped with screw terminal type for secure electrical connections. Complies with RoHS and CE standards for safety and environmental compliance. Explore more ABB circuit breakers and protective devices on EnvMart for your electrical safety needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 40A.
The trip sensitivity is 300mA, ensuring effective protection against earth leakage currents.
It operates at a rated AC voltage of 400V.
This unit is a 4-pole residual current circuit breaker.
It is suitable for operating temperatures from -25 to +55 °C.
This model is designed for DIN rail mounting, allowing for easy installation.
It features an instantaneous break time for rapid disconnection during faults.
It is equipped with a toggle switch reset actuator for convenient manual operation.
It complies with RoHS and CE standards for safety and environmental compliance.
The dimensions are 85mm in height, 85mm in depth, and 70mm in width.
It operates optimally within a frequency range of 50 to 60Hz.
It is constructed with screw terminals for secure electrical connections.
