ABB F200 Series Residual Current Circuit Breaker 25A 4-Pole 300mA Type AC 400V AC 2CSF204001R3250 F204 AC-25/0,3

Free Delivery in India | Lowest Global Shipping Charges

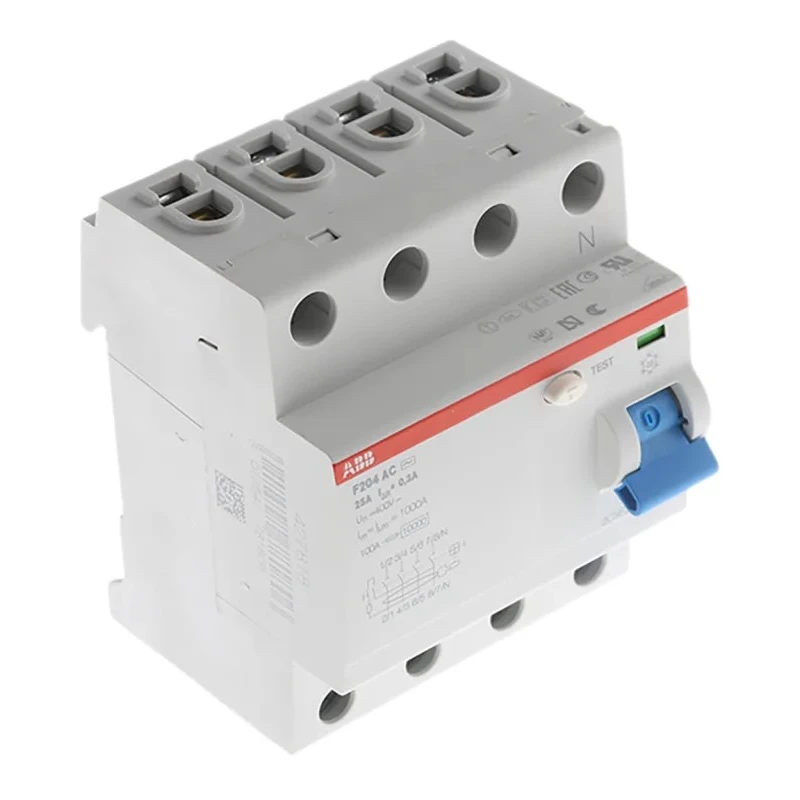

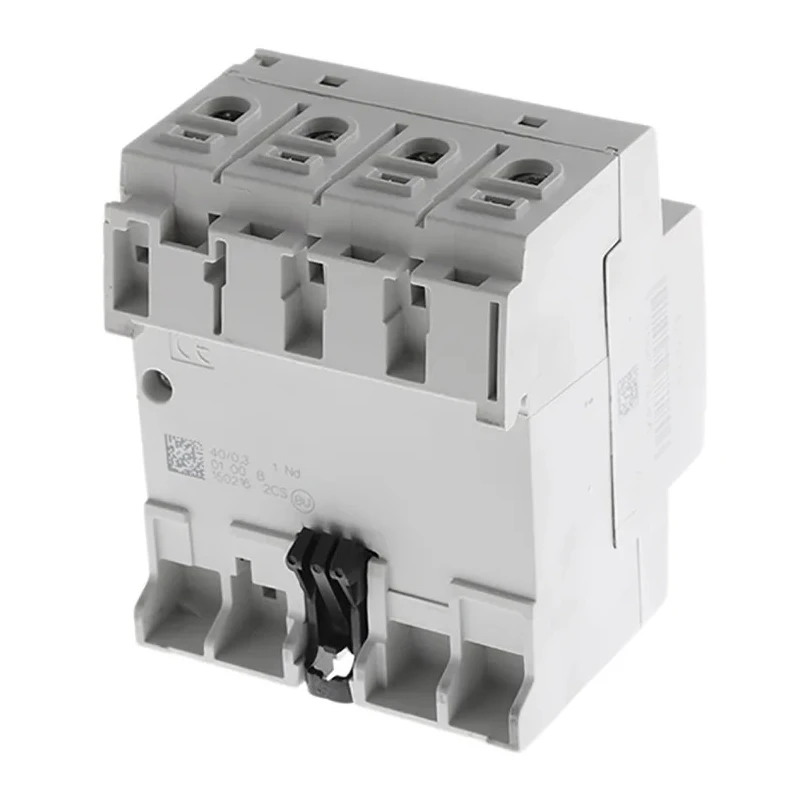

ABB F200 Series Residual Current Circuit Breaker 25A 4-Pole 300mA Type AC 400V AC 2CSF204001R3250 F204 AC-25/0,3



Category Residual Current Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	India
Range	RCCBs F200
Brand	ABB
Height	85mm
Model	2CSF204001R3250 F204 AC-25/0,3
Depth	85mm
Width	70mm
Mount Type	DIN Rail
Current Rating	25A
Series	F200
Terminal type	Screw
Breaking Capacity	0.3A
Number of Poles	4
Standards/Approvals	RoHS, CE
Rated AC Voltage	400V ac
Tripping Characteristics	Type AC
Reset Actuator Type	Toggle Switch
Trip Sensitivity	300mA
Break Time	Instantaneous
Earth Leakage Protection Type	AC
RCBO's	DIN rail mounting with an operating temperature range of -25 to +55 °C. Optimum frequency range of 50 to 60Hz
4 pole DIN rail mount RCCB,25A 300mABrand	ABB

Key Features

Rated for 25 amperes current to ensure reliable overcurrent protection.
Equipped with 4 poles for enhanced multi-phase applications.
Trip sensitivity of 300mA suitable for detecting earth leakage currents.
Type AC tripping characteristic, designed for AC leakage currents.
Compact DIN rail mounting for efficient installation.
Features a toggle switch reset actuator for user-friendly operation.
Mechanical trip indicator to display status clearly.
Complies with RoHS and CE standards ensuring safety and quality.

Product Description

ABB 2CSF204001R3250 F204 AC-25/0,3 Residual Current Circuit Breaker is a premium electrical protection device designed for industrial and commercial use. This 25A, 4-pole RCCB offers reliable grounding fault detection and interruption to protect electrical installations from earth leakage currents, enhancing safety for personnel and equipment.

The F200 Series RCCB is DIN rail mounted, enabling easy integration into existing electrical panels with compact dimensions of 85mm height, 85mm depth, and 70mm width. With a trip sensitivity of 300mA and instantaneous break time, it ensures rapid disconnection in fault conditions to prevent damage and hazards.

Engineered with Type AC tripping characteristics, it is suited for alternating current leakage scenarios, common in residential, commercial, and industrial power distribution. The toggle switch reset actuator allows convenient manual reset after tripping.

Its screw terminals guarantee secure connections and compliance with safety approvals including RoHS and CE. The operating temperature range from -25 °C to +55 °C ensures functionality across diverse environments.

Key features include mechanical trip indication and breaking capacity suited to rated specifications, making it ideal for use with standard miniature circuit breakers (MCBs).

Common applications span electrical distribution boards, industrial control panels, HVAC systems, manufacturing facilities, and water treatment plants to safeguard electrical networks against earth faults effectively.

Rated 25A current for reliable circuit protection. 4-pole design for multi-phase electrical systems. 300mA earth leakage trip sensitivity for enhanced safety. Type AC characteristic adapted to AC fault detection. Compact DIN rail mount form factor.

Toggle switch actuator enables quick reset. Mechanical trip indicator enhances fault diagnosis. Meets RoHS and CE regulatory compliance. Screw terminal connections for secure wiring. Temperature rating -25°C to +55°C for versatile use.

This ABB F200 Series RCCB is a trusted choice for electricians and system designers seeking quality residual current protection with efficient installation and reliable operation. Explore the full range of ABB circuit protection devices at EnvMart for your industrial and commercial needs.
