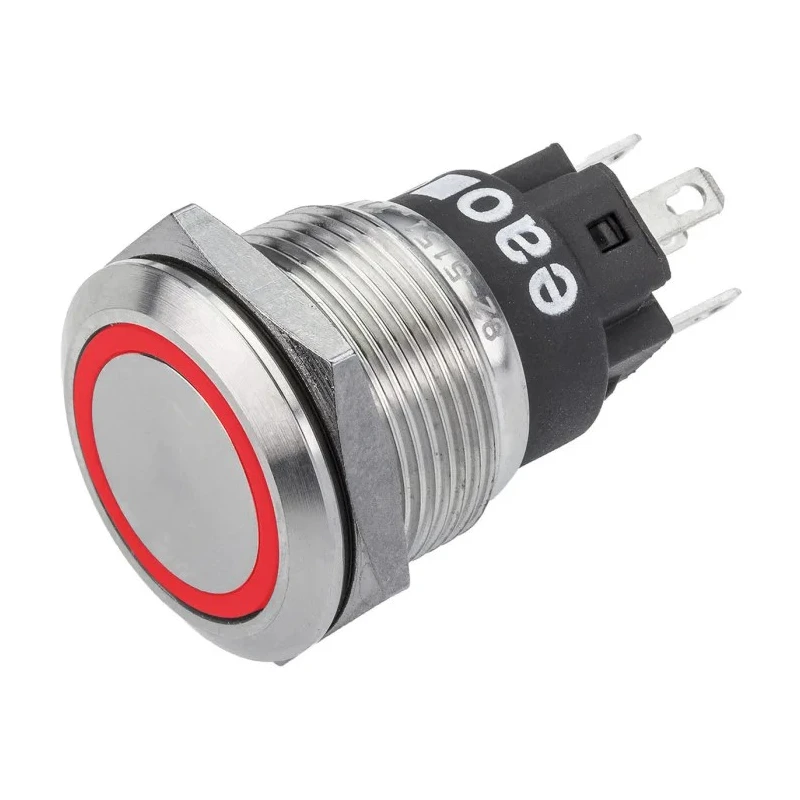

EAO 82 Series Stainless Steel Illuminated Momentary Push Button Switch, Panel Mount, 19 mm Cutout, SPDT, Red 82-5153.1113



Category Push Button Switches Brand EAO Condition New

Specifications

Country of Origin	Switzerland
Brand	EAO
Length	32.5mm
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Minimum Operating Temperature	-30°C
Panel Cutout Size	19 mm
Standards/Approvals	UL, cUL, CB, CCC
LED Colour	Red
Switch Operation	Momentary
Actuator Colour	Silver
Contact DC Voltage	240V dc
Actuator Style	Round
Switch Contact Current	3A
Contact AC Voltage	240V ac
Vandal resistant	IK10 impact resistance & frontal protection up to IP67

Key Features

Constructed of robust stainless steel housing for vandal resistance.
Illuminated with a red LED for clear status indication.
Offers IK10 impact resistance and IP65/IP67 sealing protection.
Supports contact voltages up to 240 V AC and DC with 3A current rating.
Operates reliably within temperature range from -30°C to 70°C.
Round actuator style with silver color finish.
Compliant with UL, cUL, CB, and CCC standards.
Ideal for exposed public areas and industrial applications.

Product Description

The EAO 82 Series 82-5153.1113 is a high-quality illuminated momentary push button switch engineered for panel mounting applications with a 19 mm cutout. Featuring a durable stainless steel housing, it offers excellent vandal resistance meeting IK10 impact rating and IP65/IP67 frontal protection, making it suitable for demanding environments including exposed public spaces and industrial machinery control panels.

This push button switch operates with a Single Pole Double Throw (SPDT) contact configuration and supports both 240 V AC and 240 V DC voltages at a contact current of 3 amperes, ensuring versatile usage across a wide range of electrical control applications. The round actuator is finished in silver color and includes a red LED illumination to provide clear operational status indication.

Designed for reliable operation over a wide ambient temperature range from -30°C up to 70°C, this switch complies with multiple international certifications including UL, cUL, CB, and CCC, underscoring its safety and quality assurances.

The switch provides excellent tactile feedback and is rated for more than one million cycles of operation, ensuring durability and long-term reliability. Optional features include laser marking and enhanced illumination options, catering to specific user requirements.

Commonly employed in sectors such as public utilities, medical equipment, audio and video systems, building management, and factory machinery, the EAO Series 82 push button switch is engineered for rigorous industrial and commercial environments.

Constructed of robust stainless steel housing for vandal resistance. Illuminated with a red LED for clear status indication. Offers IK10 impact resistance and IP65/IP67 sealing protection. Supports contact voltages up to 240 V AC and DC with 3A current rating.

Operates reliably within temperature range from -30°C to 70°C. Round actuator style with silver color finish. Compliant with UL, cUL, CB, and CCC standards. Ideal for exposed public areas and industrial applications. Designed to provide over 1 million operation cycles with crisp tactile feedback.

Explore the wide range of Push Button Switches at EnvMart for industrial and commercial automation needs.
