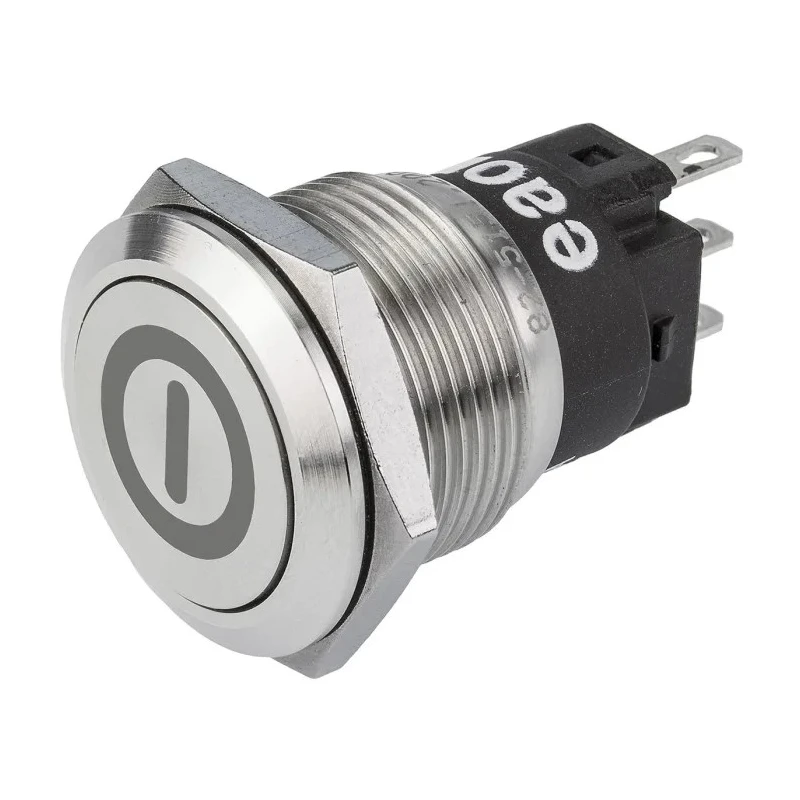

EAO Push Button Switch Latching Panel Mount 19 mm Cutout SPDT IP65 IP67 240 V DC 240 V AC 82-5151.2000.B001



Category Push Button Switches Brand EAO Condition New

Specifications

Country of Origin	Switzerland
Brand	EAO
Length	32.5mm
Model	82-5151.2000.B001
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Minimum Operating Temperature	-30°C
Panel Cutout Size	19 mm
Standards/Approvals	CB, UL, CCC, cUL
Switch Operation	Latching
Actuator Colour	Silver
Contact DC Voltage	240V dc
Actuator Style	Round
Switch Contact Current	3A
Contact AC Voltage	240V ac
Legend	On-Off
Vandal resistant	IK10 impact resistance & frontal protection up to IP67

Key Features

The switch features a silver actuator color for high conductivity and corrosion resistance.
It has a Single Pole Double Throw (SPDT) contact configuration.
The IP rating of IP65 and IP67 ensures protection against dust and water ingress.
Designed for operation at 240 V DC and 240 V AC with a contact current of 3 A.
The switch operates reliably in temperature ranges from -30°C to +70°C.
Constructed with robust stainless steel material, it offers IK10 impact resistance and vandal protection.
The compact size includes a 19 mm panel cutout and 32.5 mm length for easy installation.
It is a non-illuminated, round style actuator with a flush mounting design to minimize accidental activation.

Product Description

EAO 82-5151.2000.B001 Push Button Switch is a robust latching push button suitable for panel mounting in industrial applications requiring a compact 19 mm cutout.

Manufactured with stainless steel components, the switch is corrosion and impact resistant, designed to withstand heavy-duty environments. The silver alloy contacts provide excellent conductivity and durability for reliable switching performance. With a snap-action mechanism enabling fast switching, the device requires only 3 to 6 N of actuating force for ease of use.

This switch is rated for operation at 240 V DC and 240 V AC, with a maximum contact current of 3 A, ensuring compatibility with a wide range of control circuits. It offers an extensive operating temperature range from -30°C to +70°C, making it suitable for harsh environments such as food and beverage processing, medical equipment, and hospitality facilities.

The unit is vandal resistant, conforming to IK10 impact resistance and frontal protection up to IP67 sealing, making it ideal for exposed public installations and demanding industrial settings. With a mechanical lifespan of approximately 500,000 cycles, this push button switch guarantees long-term reliability.

Silver actuator color provides corrosion-resistant, high conductivity contacts. Single Pole Double Throw (SPDT) switch operation in latching mode. IP65 and IP67 ratings protect against dust and immersion. Flush mounting design minimizes accidental activation risks.

Compact 19 mm panel cutout suitable for space-constrained installations. Stainless steel housing ensures durability and vandal resistance. Operating temperature from -30°C to 70°C for versatile environmental use. Suitable for food industry, medical equipment, and hospitality applications.

This EAO Series 82 push button switch is an essential control component for industrial, commercial, and medical equipment applications requiring dependable, vandal-resistant panel switches. Explore EnvMart’s wide range of Push Button Switches and components for your automation and electrical system needs.
