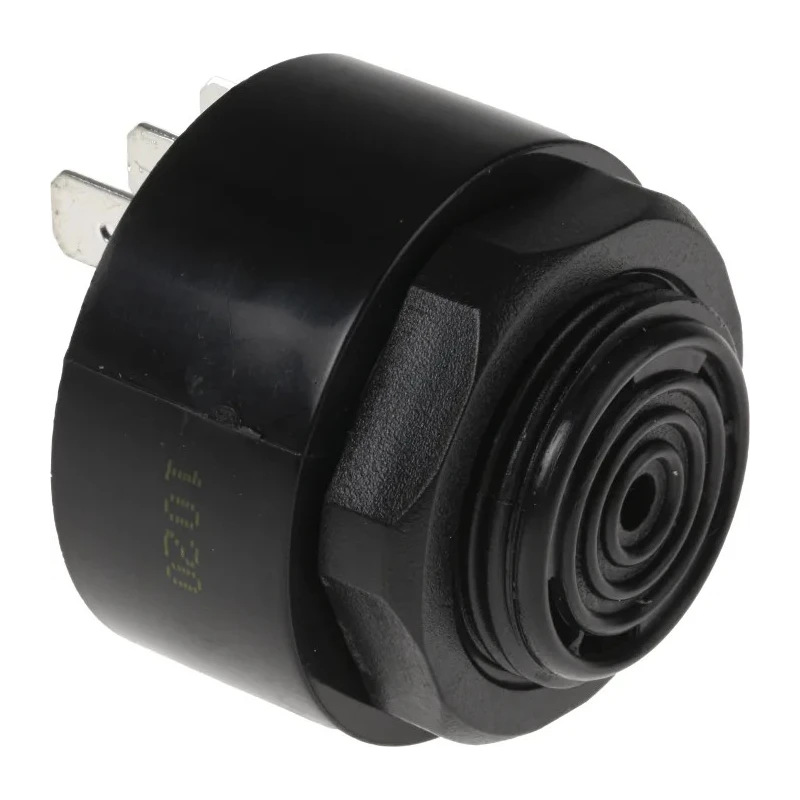

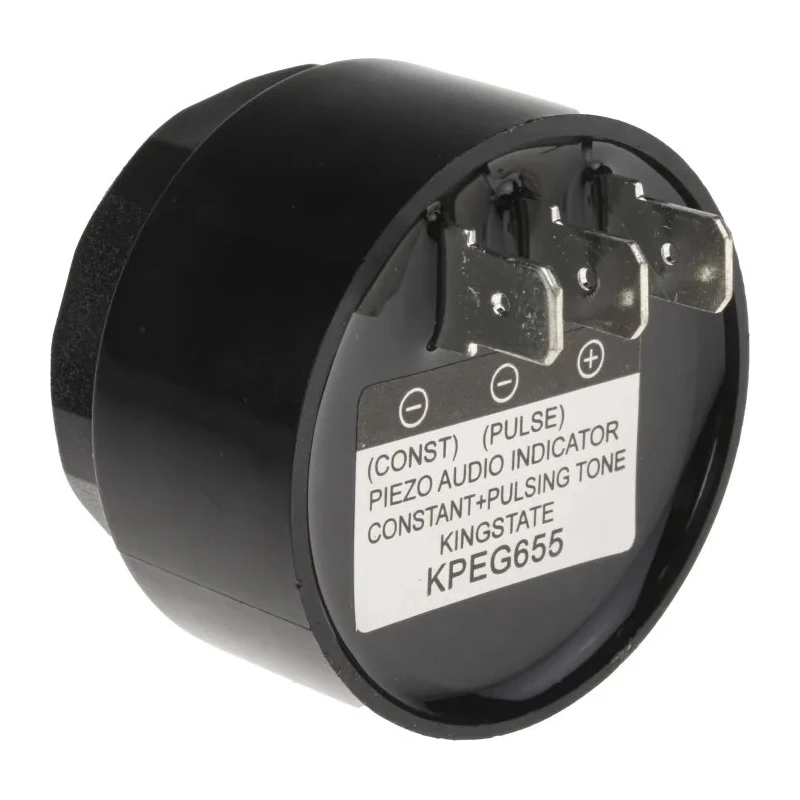

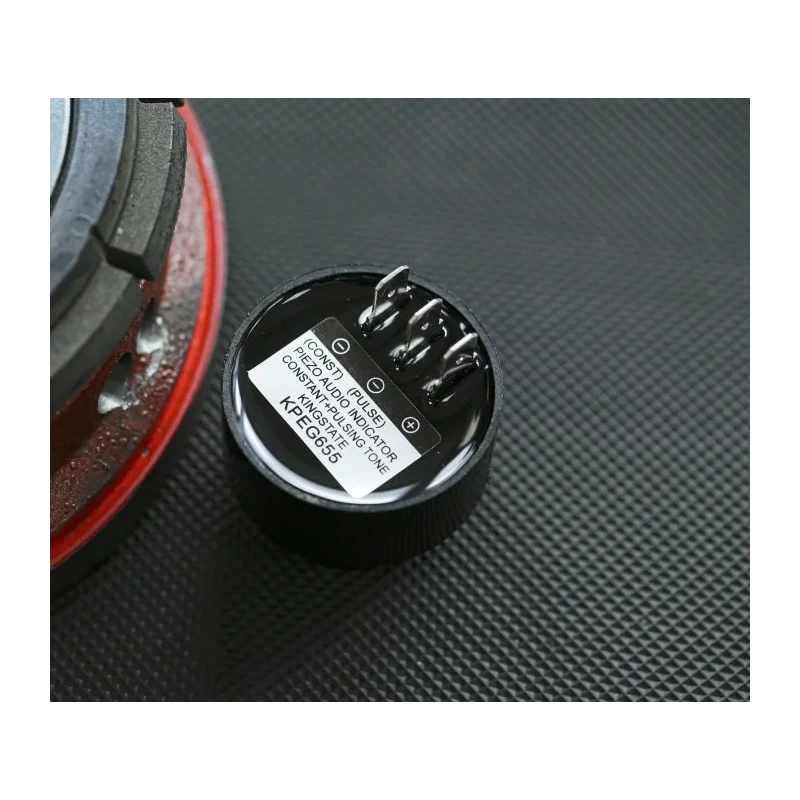

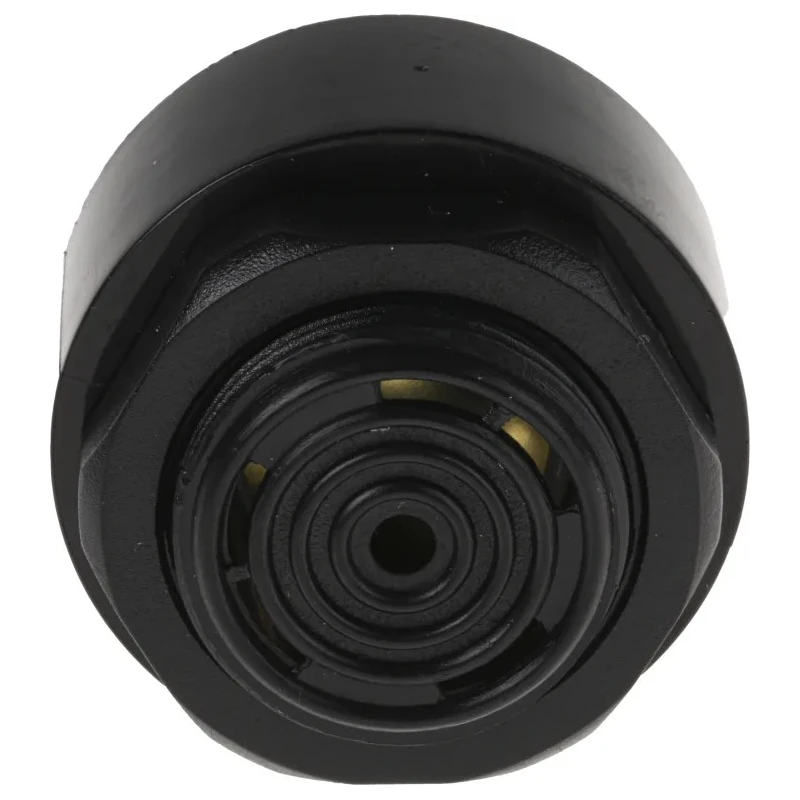

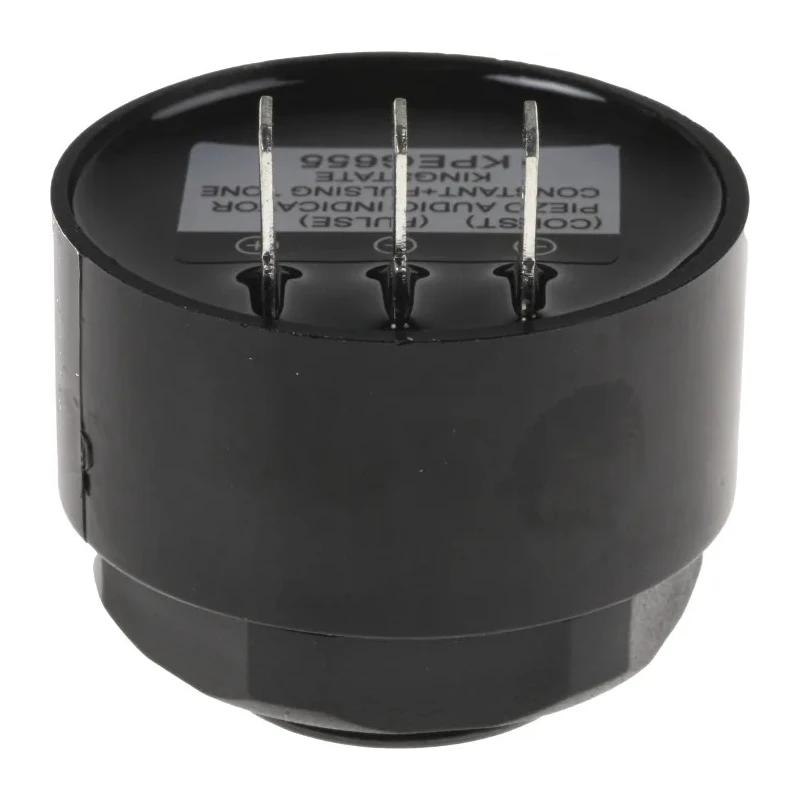

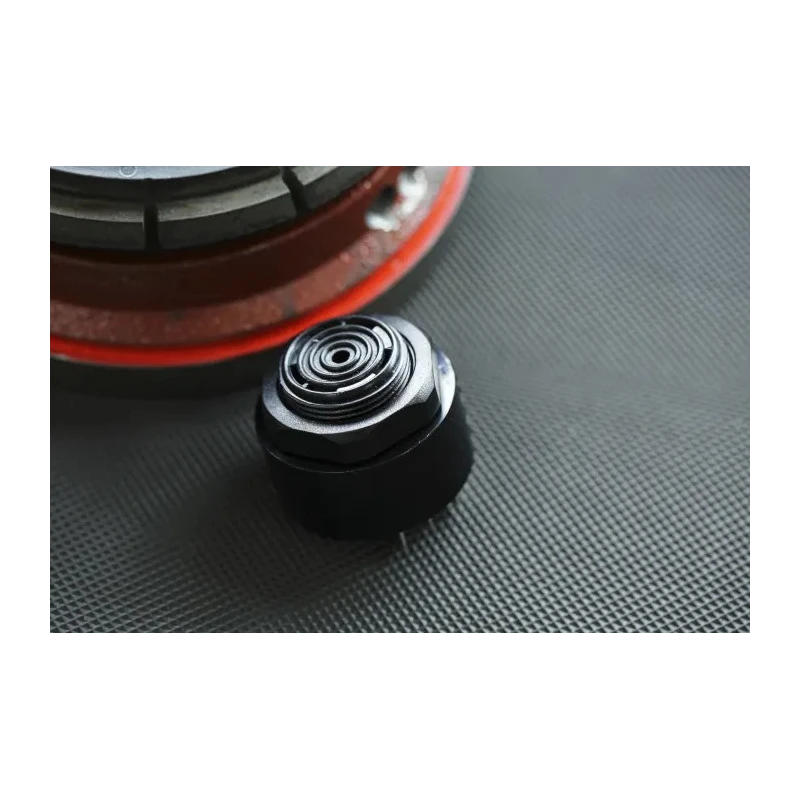

RS PRO 88 dB Panel Mount Continuous Fast Pulse Internal 33 mm Piezo Buzzer Component 6 V dc Min 28 V dc Max 535-8382

RS PRO 535-8382 Piezo Buzzer Component is a high-quality panel-mount sound device delivering an 88 dB continuous and fast pulse tone. Operating across a broad voltage range from 6 V dc minimum to 28 V dc maximum, it requires only 16 mA supply current, making it energy efficient and suitable for various consumer appliances and industrial electronics applications.

This piezo buzzer features an internal drive mechanism, avoiding the use of magnets or coils, thereby minimizing interference with surrounding circuitry and enhancing durability. The compact design with a diameter of 42.5 mm and height of 33 mm supports panel mounting and wire termination, simplifying installation and integration into control panels.

It operates reliably in extreme environmental conditions, with an operating temperature range from -30°C to +85°C, suitable for a wide array of industrial and commercial environments. The buzzer produces tones in the frequency range of 2300 Hz to 3.3 kHz, ensuring clear and distinct sound signaling for alarms, alerts, doorbells, and other audio indicators.

Manufactured in Taiwan Province Of China, the unit complies with RoHS and meets ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, indicating its resistance to electrostatic discharge. These certifications guarantee reliability and longevity in sensitive electronic applications.

The buzzer is ideal for use in industrial machinery, security systems, consumer electronics, fire alarms, and building automation. Its compact size, low power consumption, and high sound output make it a versatile component in sound signaling technology.

Operates with a minimum supply voltage of 6 V dc and maximum of 28 V dc. Generates a sound level of 88 dB for effective audio signaling. Internal drive reduces electrical interference and improves reliability. Continuous and fast pulse tone suitable for alert and notification applications.

Panel mount style with wire termination for straightforward installation. Wide operating temperature range: -30°C to +85°C ensuring durability in harsh conditions. Compact size: 42.5 mm diameter and 33 mm height. Compliance with RoHS and electrostatic discharge protection standards.

This RS PRO piezo buzzer is designed to meet the demands of engineers and technicians requiring a durable, efficient sound component for audio alerts in electronic equipment. It is part of the trusted RS PRO series known for rigorous quality testing and dependable performance.
