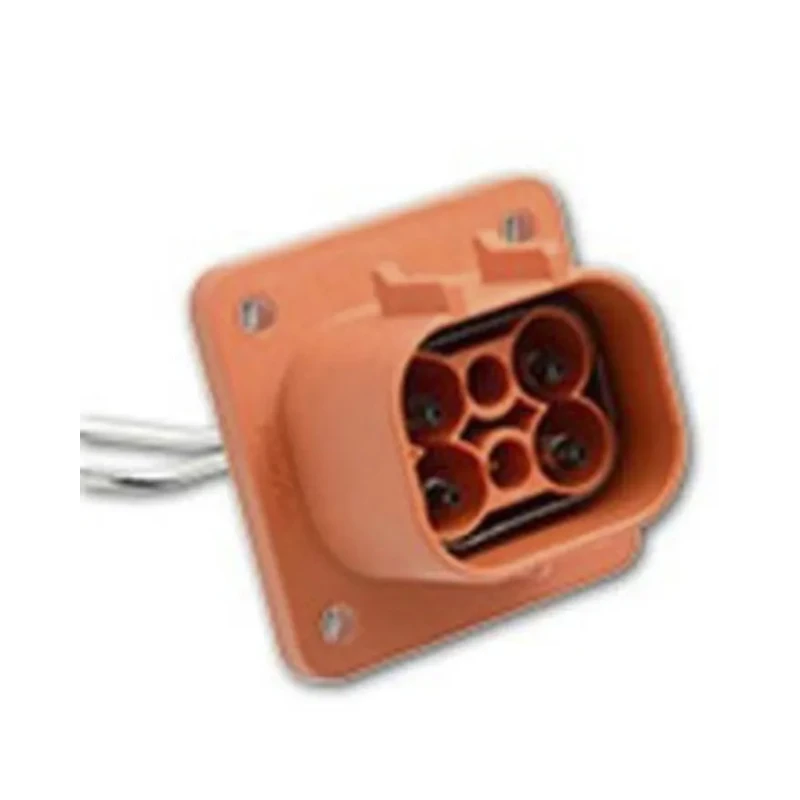

Amphenol Industrial Epower Lite RADSOK Receptacle with HVIL EV Connector Female 70A ELR4A02 / C10-737487-4AP2
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Orange |
| Orientation | Straight |
| Current | 70A |
| Height | 48mm |
| Model | ELR4A02 / C10-737487-4AP2 |
| Depth | 44.5mm |
| IP Rating | IP67 |
| Connector Type | RADSOK Receptacle with HVIL |
| Width | 48mm |
| Mount Type | Panel Mount |
| Housing Material | Plastic |
| Series | Epower Lite |
| Waterproof | IP67 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 3.6mm |
| Number of Rows | 2 |
| Wire size | 4mm² |
| Operating Voltage | 800V |
| For Use With | 4 Position ePower-Lite Plug with HVIL |
| Standards/Approvals | IEC 60529, UL 94 V-0 |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Connector Gender | Female |
| Better World Claim | Renewable Energy Solution |
| Key Type | Type A |
| Flammability | UL 94V-0 |
| Touch Proof | IEC 60529 |
Key Features
- Supports a current rating of 70 amperes for robust power delivery.
- Features a 4-contact, 2-row configuration for secure electrical connections.
- Operates at a voltage up to 800 volts suitable for high-power EV systems.
- Constructed with plastic housing and offers IP67 waterproof protection.
- Temperature range from -40°C to 125°C ensures reliable operation in harsh environments.
- Designed with a panel mount and includes a straight orientation for ease of installation.
- Utilizes crimp termination with male contacts for secure connectivity.
- Orange-colored with Type A keying to prevent mis-mating and ensure safety.
Product Description
Amphenol Industrial ELR4A02 / C10-737487-4AP2 Epower Lite RADSOK Receptacle with HVIL EV Connector Female 70A is a high-performance automotive electrical connector designed for electric and hybrid vehicle applications. Its compact and lightweight design allows easy integration into EV powertrain systems while providing reliable, high-current electrical connections.
The RADSOK receptacle deploys advanced low-resistance contact technology, delivering a higher amperage rating of 70A with reduced temperature rise and voltage drop, crucial for efficient power transfer in demanding environments. The connector supports operating voltages up to 800V and offers a robust temperature range from -40°C to 125°C.
Constructed with a durable plastic housing, this connector provides IP67-rated waterproof protection and complies with IEC 60529 touch-proof and UL 94 V-0 flame retardant standards, ensuring operational safety and longevity. The connector features a 4-contact, 2-row arrangement with crimp terminations and male contacts, designed for panel mount applications with straight orientation. Its orange color and Type A keying prevent incorrect mating, enhancing connector reliability and ease of use.
This connector is compatible with the 4 Position ePower-Lite Plug with HVIL, making it suitable for integration in various EV and hybrid vehicle electrical architectures. The product originates from China, reflecting international manufacturing standards.
Supports 70A current with low resistance RADSOK contact technology. Compact, lightweight, and panel-mount design for flexible installation. Rated IP67 waterproof against dust and water ingress. Wide operating temperature range from -40°C to 125°C.
Meets IEC 60529 touch proof and UL 94 V-0 flammability standards. Orange plastic housing with Type A keying for correct mate assurance. Suitable for demanding hybrid and electric vehicle power systems. Crimp termination and straight contact orientation for secure connection.
Compatible with 4 Position ePower-Lite Plug with HVIL connectors. Certified for renewable energy solutions in automotive applications.
Amphenol Industrial connectors are trusted for their durability and performance in industrial, automotive, and renewable energy sectors. Explore more in the EV Connectors category at EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 70 amperes, suitable for robust power delivery in electric and hybrid vehicle applications.
The maximum operating voltage is up to 800 volts, making it suitable for high-power electric vehicle systems.
This model is designed for panel mount applications, providing ease of installation.
It operates within a temperature range from -40°C to 125°C, ensuring functionality in harsh environments.
It features a 4-contact, 2-row configuration for secure electrical connections.
It has an IP67 rating, providing waterproof protection against dust and water ingress.
This model utilizes crimp termination with male contacts for secure connectivity.
The connector is constructed with a plastic housing, ensuring durability and compliance with safety standards.
It complies with IEC 60529 for touch-proof protection and UL 94 V-0 for flammability.
It is designed with a straight orientation, facilitating straightforward installation.
It is compatible with the 4 Position ePower-Lite Plug with HVIL connectors, suitable for various EV and hybrid vehicle architectures.
The connector features an orange color with Type A keying to prevent mis-mating and enhance safety.
