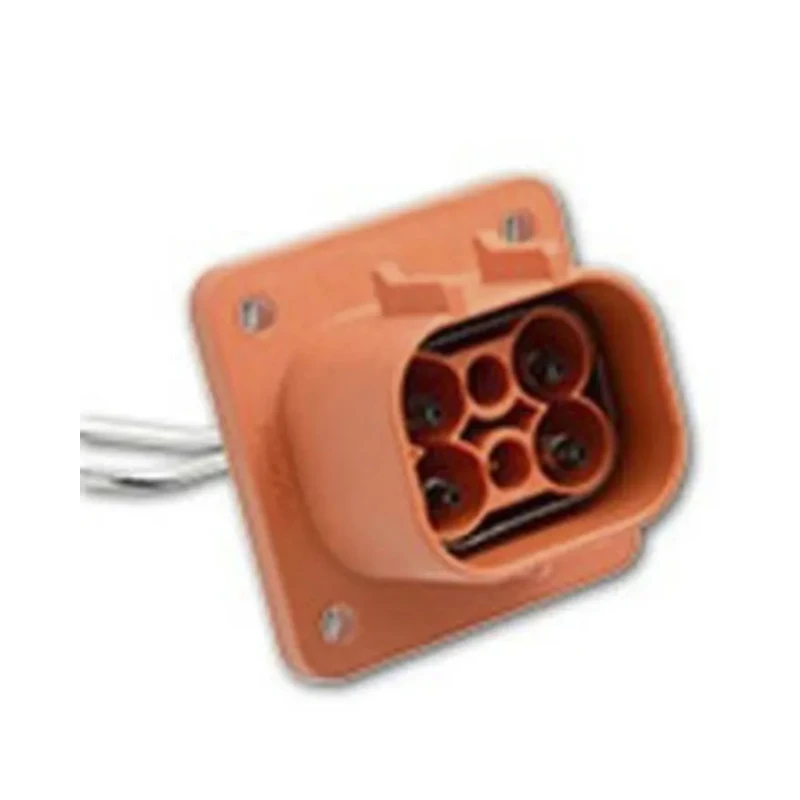

Amphenol Industrial Epower Lite RADSOK Receptacle with HVIL, Female EV Connector, 70A, 800V, Panel ELR4A04 / C10-737487-4AP4

Amphenol Industrial ELR4A04 / C10-737487-4AP4 Epower Lite RADSOK Receptacle is a high-performance female EV connector designed specifically for electric and hybrid vehicle applications. It operates at a rated current of 70 amperes and an operating voltage of 800 volts, providing a reliable and safe power connection in automotive and industrial environments.

This connector employs RADSOK technology, which delivers low-resistance contact, resulting in lower temperature rise and voltage drop during operation. The housing is made of durable plastic, ensuring electrical insulation and mechanical protection. Its compact design with dimensions 48 mm height, 48 mm width, and 44.5 mm depth makes it ideal for panel mount installations with a straight orientation.

Engineered for harsh conditions, the connector supports a wide temperature range from -40°C to 125°C. It is rated IP67 for waterproof protection and meets IEC 60529 standards for touch proof safety as well as UL 94 V-0 for flammability resistance. The connector includes a CPA to prevent mis-mating and is field installable and repairable, enhancing its usability and maintenance.

The connector features four male contacts arranged in two rows and accommodates wire sizes of 10 mm² for heavy-duty power transfer. Key Type A ensures correct polarity and easy mating with compatible plugs. Its orange color distinguishes it within the Epower Lite series, which is recognized for robust, compact hybrid automotive connectors designed to meet renewable energy solutions.

Typical applications include electric vehicles, hybrid vehicles, industrial power systems, and renewable energy equipment where reliable, high-current connectors are essential. This Amphenol Industrial connector provides the durability and safety required in demanding environments.

The connector features a RADSOK receptacle with HVIL for enhanced safety. Rated current is 70 amperes with an operating voltage of 800 volts. Panel mount design provides ease of installation and a secure fit. Constructed with durable plastic housing and rated IP67 for waterproof protection.

The connector supports wire sizes up to 10 mm² for robust electric connections. Minimum and maximum operating temperatures of -40°C and 125°C respectively ensure reliability in harsh environments. The connector is compliant with IEC 60529 and UL 94 V-0 standards for touch protection and flammability.

Compact dimensions with a height and width of 48 mm and depth of 44.5 mm. Designed for EV and hybrid vehicle applications with a robust and lightweight hybrid connector shell. Features Type A keying and four contacts in two rows for precise connection alignment.
