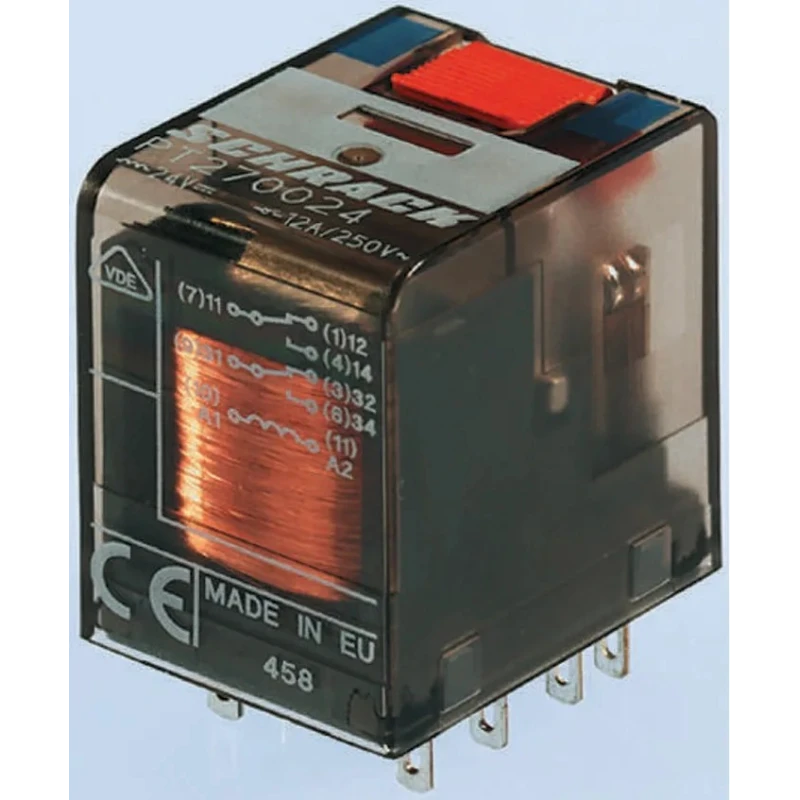

TE Connectivity PCB Power Relay 115V ac Coil 6A Switching Current 4PDT PT570S15 7-1415003-1
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 35mm |
| Length | 28mm |
| Model | PT570S15 7-1415003-1 |
| Width | 22.5mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | PT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Quick Connect |
| Standards/Approvals | VDE, UL, RoHS, IEC |
| Coil Resistance | 4.8kΩ |
| Coil Voltage | 115V ac |
| Switching AC Voltage | 240V ac |
Key Features
- Coil voltage rated at 115V AC for reliable operation.
- Contact configuration includes 4PDT for versatile switching.
- Switching current capacity up to 6 amperes with 1.5kVA switching power.
- Compact PCB mount design with dimensions W22.5 x D28 x H35 mm.
- Constructed with silver nickel alloy contact material for durability.
- Maximum operating temperature rating of 70°C ensuring stable performance.
- Minimum operating temperature down to -40°C suitable for harsh environments.
- Includes manual lockable test facility and LED indicator for operational status.
Product Description
TE Connectivity PT570S15 7-1415003-1 PCB Power Relay features a coil voltage of 115V AC and supports a switching current of 6 amperes. This 4PDT relay is designed for PCB mounting with quick connect terminals, ensuring easy integration into electronic circuits.
The relay's robust silver nickel alloy contacts provide excellent conductivity and durability, suitable for switching AC voltages up to 240V AC and switching power of 1.5kVA. It operates effectively within temperatures from -40°C to 70°C, making it adaptable to various industrial environments.
The PT series includes a manual lockable test facility and LED mechanical indicator for operational monitoring. Isolation between coil and contact is rated at 2.5kV, ensuring safe and reliable use. With a mechanical life of 20 million AC operations and 30 million DC operations, this relay is built for long-term industrial applications.
Its compact dimensions of width 22.5mm, depth 28mm, and height 35mm optimize PCB space without compromising performance. Certified under international standards including VDE, UL, RoHS, and IEC, it meets rigorous quality and safety requirements.
This relay is ideal for electrical, automation, and industrial manufacturing sectors requiring dependable power relay switching solutions. Applications include control systems, signal conditioning, and automation machinery.
Coil voltage rated at 115V AC for reliable operation. Contact configuration includes 4PDT for versatile switching. Switching current capacity up to 6 amperes with 1.5kVA switching power. Compact PCB mount design with dimensions W22.5 x D28 x H35 mm.
Constructed with silver nickel alloy contact material for durability. Maximum operating temperature rating of 70°C ensuring stable performance. Minimum operating temperature down to -40°C suitable for harsh environments.
Includes manual lockable test facility and LED indicator for operational status. Designed for industrial and automation applications with VDE, UL, RoHS, and IEC approvals. Explore more Power Relays from TE Connectivity and other brands at EnvMart to fit your industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage for this relay is rated at 115V AC, ensuring reliable operation.
This model supports a maximum switching current capacity of 6 amperes.
The contact configuration includes 4PDT (four poles, double throw), allowing for versatile switching options.
The relay has compact dimensions of 22.5mm in width, 28mm in depth, and 35mm in height.
It operates effectively within a temperature range from -40°C to 70°C, making it suitable for harsh environments.
The contacts are constructed from silver nickel alloy, providing excellent conductivity and durability.
This relay is certified under international standards including VDE, UL, RoHS, and IEC, ensuring compliance with quality and safety requirements.
It can switch power up to 1.5kVA, suitable for various applications.
Yes, it includes a manual lockable test facility and an LED indicator for operational status monitoring.
This model features quick connect terminals for easy integration into electronic circuits.
The isolation between the coil and contact is rated at 2.5kV, ensuring safe and reliable use.
The relay has a mechanical life of 20 million AC operations and 30 million DC operations, suitable for long-term industrial applications.
