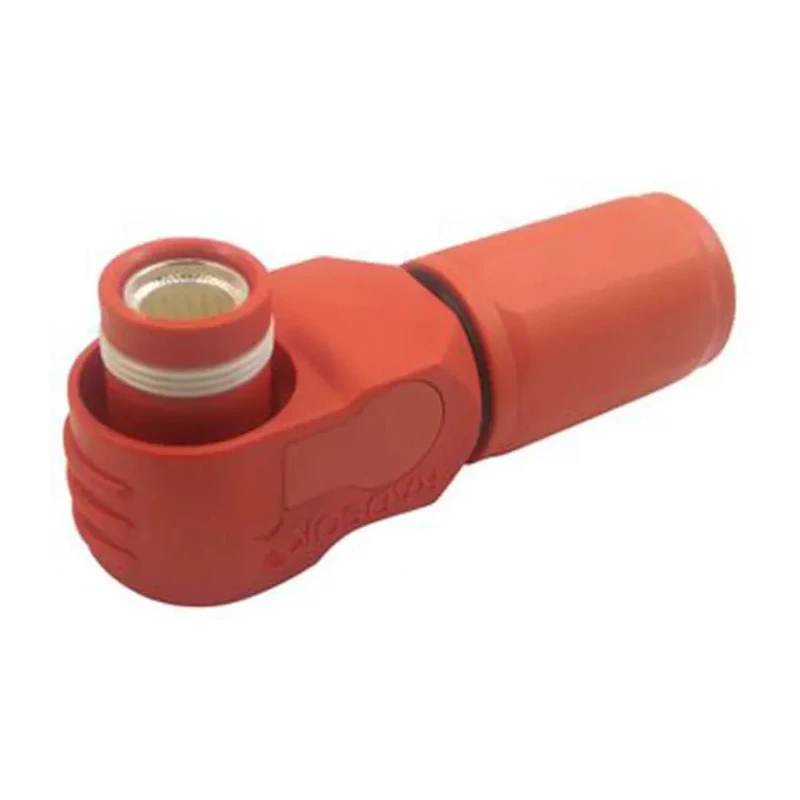

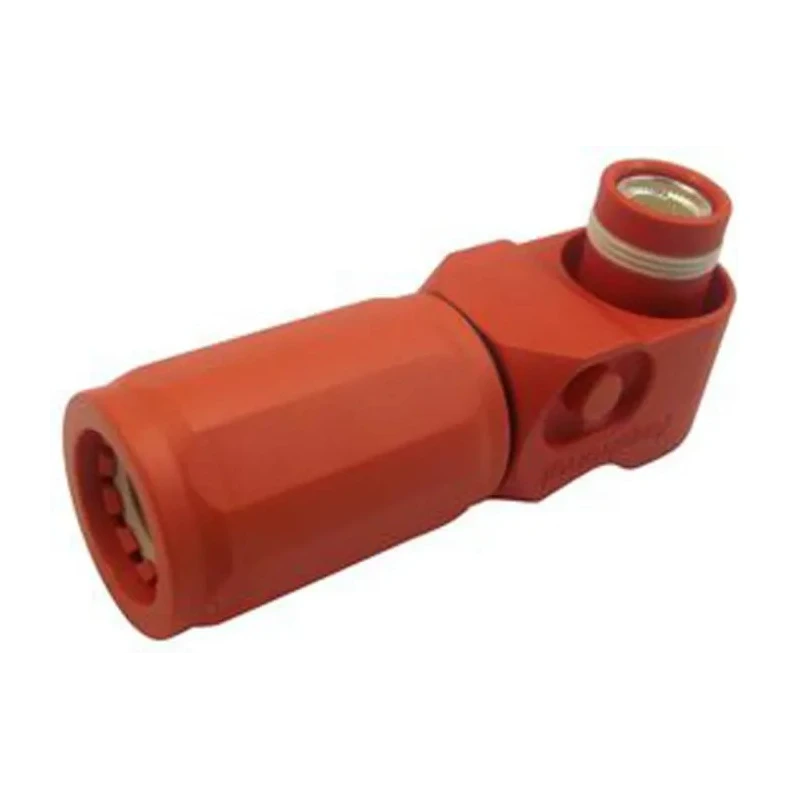

Amphenol Industrial SURLOK PLUS RADSOK EV Connector Male 150A 1000V Right Angle IP67 SLPPB35BSO / C10-730188-030
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Orange |
| Orientation | Right Angle |
| Current | 150A |
| Height | 75.6mm |
| Model | SLPPB35BSO / C10-730188-030 |
| Depth | 29mm |
| IP Rating | IP67 |
| Connector Type | RADSOK |
| Width | 21.6mm |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | SURLOK PLUS |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 8mm |
| Number of Rows | 1 |
| Wire size | 35mm² |
| Operating Voltage | 1000V |
| For Use With | SurLok 1-Position Receptacle |
| Standards/Approvals | UL 94-V0 |
| Number of Contacts | 1 |
| Contact Gender | Female |
| Connector Gender | Male |
| Better World Claim | Renewable Energy Solution |
| Amphenol Industrial, SURLOK PLUS RADSOK EV Connector Male, 150ABrand | Amphenol Industrial |
Key Features
- This connector supports a current rating of 150A for high power applications.
- It features a right angle orientation and is IP67 rated for environmental protection.
- The connector terminates with 35mm² wire size using crimp termination and includes a female contact gender.
- Constructed with copper alloy contacts and thermoplastic housing ensuring durability and electrical performance.
- Suitable for electric vehicles, battery management systems, rail mass transit, and medical equipment.
- Designed for quick mating with 360° plug rotation and spring locking for secure connections.
- Complies with UL 94-V0 flammability standards and withstands temperatures from -40°C to 125°C.
- Mount type is cable mount with an 8mm pin diameter to mate with SurLok 1-position receptacle.
Product Description
Amphenol Industrial SLPPB35BSO / C10-730188-030 SURLOK PLUS RADSOK EV Connector Male 150A is a high-performance right angle electrical connector designed to operate at 1000V and 150 amps. This connector is engineered for applications in heavy equipment, medical devices, process control, battery management systems, and rail mass transit where reliable power delivery and secure connections are critical.
Featuring R4 RADSOK technology, this SurLok Plus series plug provides a robust connection with a highly conductive surface area and excellent tensile strength. Its compact design allows for a full 360° plug rotation and includes a spring locking mechanism with a keyed design to prevent mismatching.
The connector accepts 35mm² wires terminated through a crimp termination type, ensuring secure cable attachment. The contact gender is female with a pin diameter of 8mm housed in a thermoplastic orange jacket that complies with UL 94-V0 flammability rating. Operating temperatures range from -40°C to 125°C, and the IP67 rating protects it against dust and immersion in water.
The mounting style is cable type, making it field installable and suited for electric vehicle (EV) connections, hybrid electric vehicles (HEV), battery energy storage systems, and other demanding industrial environments requiring high electrical and environmental resilience.
150A current rating for high power industrial and EV systems. IP67 protection ensures resistance against dust and water ingress. Compliance with UL 94-V0 standard for fire safety. Durable copper alloy contacts and thermoplastic housing.
360° rotational plug for installation flexibility. Spring locking mechanism for secure connections. Female contact gender mates with male pin of 8mm diameter. Operating voltage of 1000V for versatile use.
This product is a renewable energy solution contributing to sustainable technologies, manufactured with quality to meet rigorous industrial standards. It originates from China and is a new condition product conforming to industry certifications and standards.
Explore the Amphenol Industrial SURLOK PLUS series in the EV Connectors category for compatible parts and accessories suited for demanding electrical systems.
