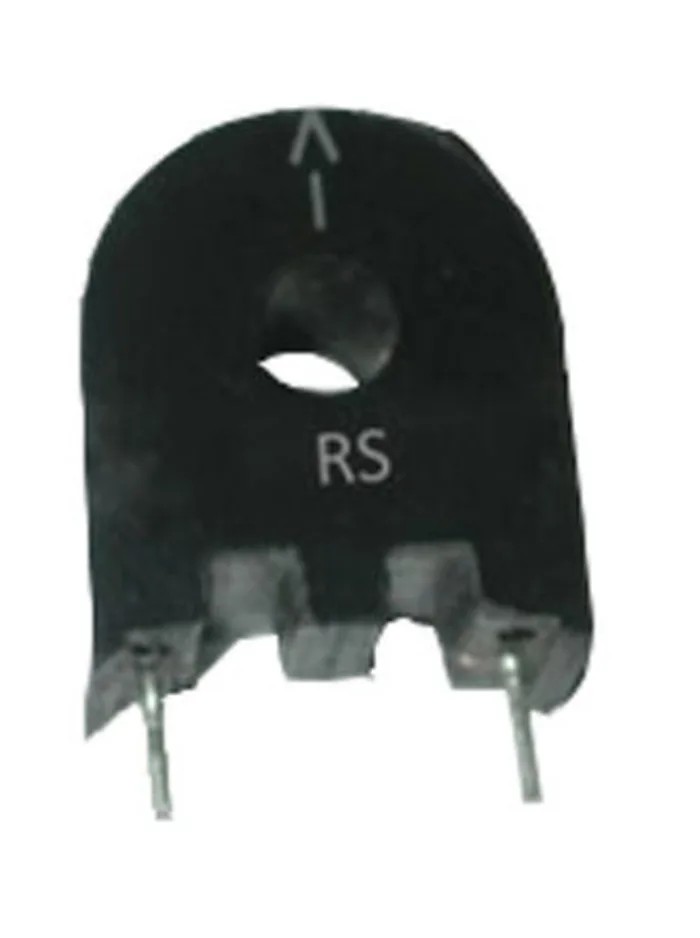

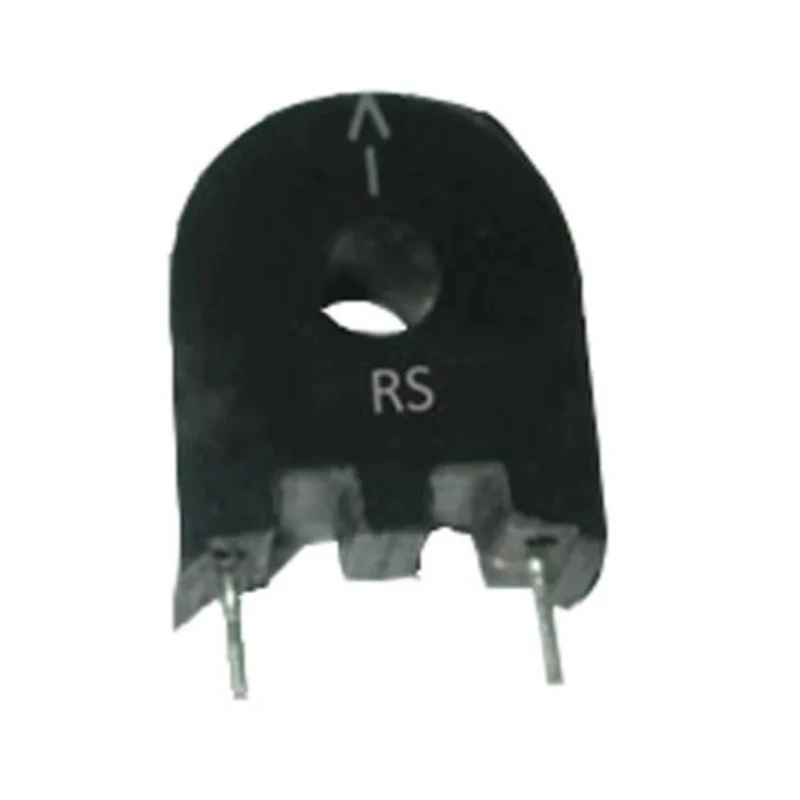

RS PRO Current Transformer 10 A 1000:1 Ratio 5mm Bore PCB Mount 50-60Hz 124-3900
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | 124-3900 |
| Depth | 20.4mm |
| Width | 9.53mm |
| Mount Type | PCB |
| Maximum Operating Temperature | 120°C |
| Minimum Operating Temperature | -40°C |
| Bore Diameter | 5mm |
| Terminal type | Wire |
| Primary Current | 10A |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
| Turns Ratio | 1000:1 |
| Primary DC Resistance | 93Ω |
| 1000 | 1 |
| Nuvotem Talema AZ Series Current Transformer 50 A 1000 | 1Brand: Nuvotem Talema |
| RS PRO Current Transformer 10 A 1000 | 1 5mm Bore |
Key Features
- High output voltage in a compact design suitable for space-saving PCB applications.
- Primary DC resistance of 93Ω ensures precise current sensing.
- Operates reliably over a wide temperature range from -40°C to 120°C.
- Rated for operating frequency between 50Hz and 60Hz for standard AC power systems.
- Features wire terminal type for easy and secure connections.
- Compact physical dimensions with 20.4mm depth and 9.53mm width.
- Ideal for current measurement, power monitoring, and instrumentation purposes.
- Constructed to provide low cost and effective current sensing solutions.
Product Description
RS PRO 124-3900 current transformer is engineered for accurate electrical current measurements with a primary current rating of 10 A and a turns ratio of 1000:1. This transformer features a 5mm bore diameter and is designed for PCB mounting applications, providing high output voltage in a compact size. Operating temperature ranges from -40°C to 120°C make it suitable for various industrial environments.
The product dimensions include a depth of 20.4mm and width of 9.53mm, making it well suited for integration in automated systems and instrumentation setups. The terminal type is wired, facilitating efficient and reliable electrical connections.
With its frequency operating range of 50Hz to 60Hz, this current transformer is ideal for power monitoring and current measurement in electrical systems common in industrial automation and control gear.
While no specific compliance certifications are indicated, this cost-effective current transformer provides dependable performance for instrumentation, process control, and low-cost current sensing applications.
High output voltage in a compact design suitable for space-saving PCB applications. Primary DC resistance of 93Ω ensures precise current sensing. Operates reliably over a wide temperature range from -40°C to 120°C. Rated for operating frequency between 50Hz and 60Hz for standard AC power systems.
Features wire terminal type for easy and secure connections. Compact physical dimensions with 20.4mm depth and 9.53mm width. Ideal for current measurement, power monitoring, and instrumentation purposes. Constructed to provide low cost and effective current sensing solutions.
Suitable for industrial and automation control systems requiring precise current transformation. Does not carry specific standards/approvals, emphasizing suitability for general industrial use.
This RS PRO current transformer is an excellent choice for a wide variety of industrial, laboratory, and manufacturing applications that require reliable current measurement and monitoring equipment. Explore more Current Transformers and electrical components in the EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary current rating of this current transformer is 10 A.
This model features a turns ratio of 1000:1, allowing for significant current transformation.
The dimensions of this current transformer are a depth of 20.4mm and a width of 9.53mm, making it compact for PCB applications.
The bore diameter of this current transformer is 5mm.
It operates reliably over a wide temperature range from -40°C to 120°C.
This model is rated for an operating frequency between 50Hz and 60Hz, suitable for standard AC power systems.
It features a wire terminal type for easy and secure connections.
Yes, this model is designed specifically for PCB mounting applications.
It is ideal for current measurement, power monitoring, and instrumentation purposes in industrial environments.
The primary DC resistance is 93Ω, ensuring precise current sensing.
The country of origin for this current transformer is India.
No specific compliance certifications are indicated for this current transformer, emphasizing its suitability for general industrial use.
